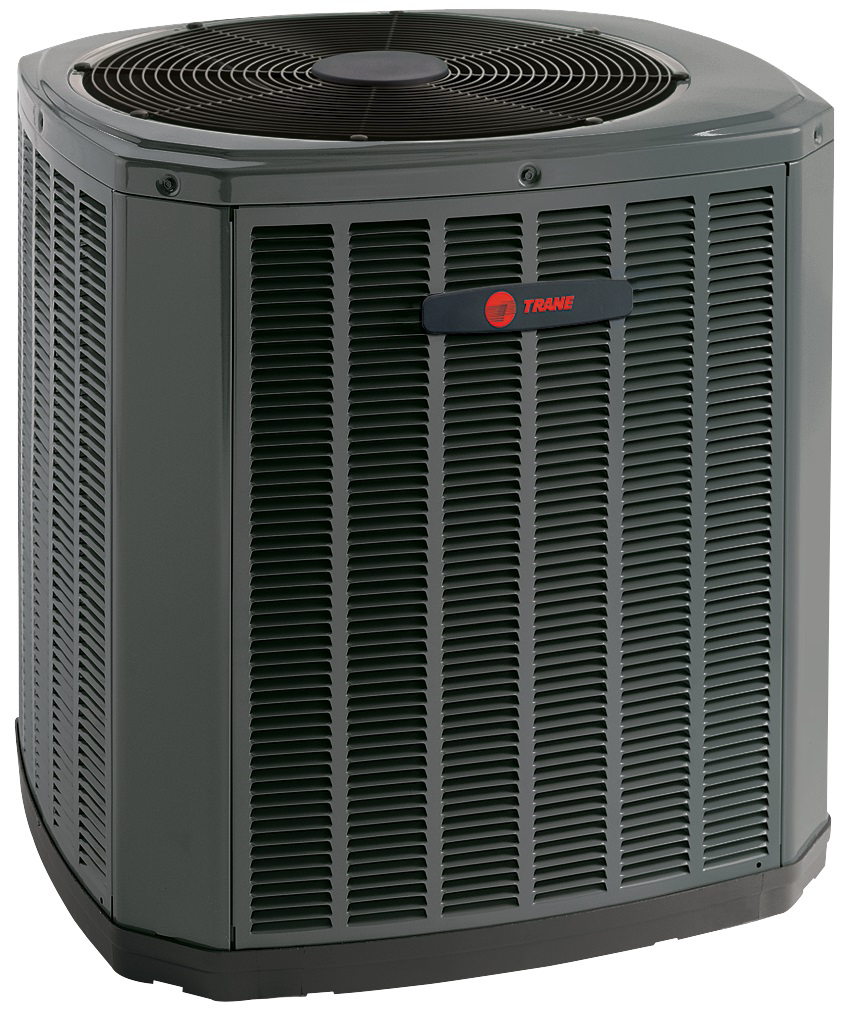

Trane 5TTR4018A1000A,Choice, 1.5T, 14 SEER2, Single Stage Air Conditioner
Trane 5TTR4018A1000A,Choice, 1.5T, 14 SEER2, Single Stage Air Conditioner
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390528
MPN: 5TTR4018A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 18,000 Btu/hr |
| MCA | : | 9 |
| Max Amps | : | 20.0 |
| Max Fuse | : | 20 A |
| Model Number | : | 5TTR4 |
| Noise Level | : | 73 dba |
| Nominal Capacity BTU Rating | : | 18000.0 |
| Number of Stages | : | Single Stage |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Family Series | : | Choice |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 13.4 |
| SEER | : | 14 |
| Sound Level | : | 73 dBA |
| Stages | : | 1 |
| Tonnage | : | 1.5 Ton |
| Voltage | : | 208/230 V |
Trane 5TTR4018A1000A,Choice, 1.5T, 14 SEER2, 18,000 BTU, 208/230V, R454B, Single Stage Air Conditioner
- 14 Single-Stage Air Conditioner outdoor products using R-454B refrigerant
- New TXV and refrigeration designs that are optimized for maximum performance using the new refrigerant.
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
