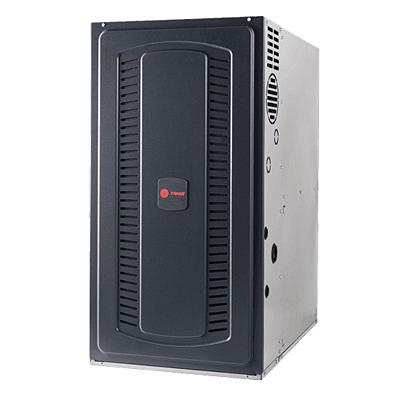

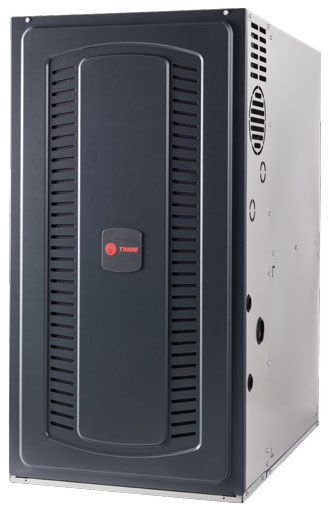

Trane S Series S8X1A040M3PSCA 3T 80 AFUE Non-Condensing Single Stage Gas Furnace
Trane S Series S8X1A040M3PSCA 3T 80 AFUE Non-Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391075
MPN: S8X1A040M3PSCA
Customer Part #:
Min. Order Qty: 1
Login for Availability
| AFUE Rating | : | 80 % |
| Additional Information | : | Non-Condensing Type, Round Vent Type, Silicon Nitride Ignition System Element |
| Amperage Rating | : | 10.1 A |
| Blower Size | : | 11 in Dia x 8 in W in |
| CFM Rating | : | 1200 cfm |
| Cabinet Dimensions | : | 34 in H x 14-1/2 in W x 28-3/4 in D in |
| Configuration | : | Multi - Position |
| Energy Star Compliant | : | No |
| Finish | : | Baked-On Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 40,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | S8X1 |
| Model | : | S8X1 |
| Motor Type | : | PSC |
| Number of Burners | : | 2 |
| Number of Speeds | : | 9 |
| Number of Stages | : | Single |
| Output BTU Rating | : | 32000 Btu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.5 in-WG |
| Rotational Speed | : | 1050 rpm |
| Series | : | S Series |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 14.5 in |
Trane S Series - S8X1A040M3PSCA, 3T, 80% AFUE, 40,000 BTU, 120V, PSC Fan Motor, Mutli-Position, Non-Condensing Single Stage Gas Furnace
- Efficient airflow design reduces electrical energy use
- 34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coils
- Improved airflow efficiency,Single piece belly band/ motor arm assembly
- Rain shield over IFC keeps condensate off the control
- Four–Way Multi-Poise
- At least 400 CFM/ton at 0.5 in. H20 external static pressure
