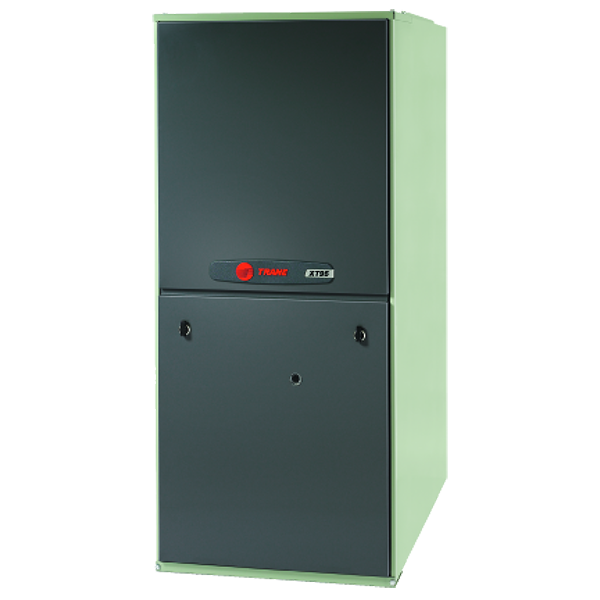

Trane XR95 TUH1B040A9H21B 2T 95 AFUE Condensing Single Stage Gas Furnace
Trane XR95 TUH1B040A9H21B 2T 95 AFUE Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391339
MPN: TUH1B040A9H21B
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating % | : | 95 |
| AFUE Rating | : | 96 % |
| AHRI Model Number | : | TUH1B040A9H21 |
| Airflow Capacity | : | 2 Ton |
| Batteries included | : | No |
| Blower (Dia x W) (In) | : | 10 x 7 |
| Blower FLA | : | 6.8 |
| Blower Fan Speeds | : | 4 |
| Blower Motor Type | : | Direct Drive |
| Burner Type | : | Multiport Inshot |
| Combustion Fan-RPM | : | 3000 |
| Communicating | : | Non-communicating |
| Condensing | : | Condensing |
| Configuration | : | Upflow, Horizontal |
| Dimensions | : | 40 x 17.5 x 28 |
| Energy Star Compliant | : | No |
| Equipment Application | : | Heating |
| Exchanger Material | : | Aluminized Steel |
| Filter Height (In) | : | 17 |
| Filter Size (In) | : | 17 x 25 x 1 |
| Filter Width In | : | 25 |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Full Load Amperage (FLA) | : | 9.7 |
| Fuse Rating | : | 15 A |
| Gas Valve Type | : | Redundant - 1-Stage |
| Heating Capacity | : | 40000 BTUH (1st Stage) |
| Ignition Type | : | Silicon Nitride Ignitor |
| Input BTU Rating | : | 40,000 Btu/hr |
| Line Size - Suction (In) | : | 1/2 |
| Material | : | Steel Cabinet |
| Max Fuse | : | 15 A |
| Model Number | : | TUH1 |
| Model | : | TUH1 |
| Motor HP | : | 1/55 |
| Motor Type | : | PSC |
| Number of Stages | : | Single |
| Output BTUH | : | 38000 |
| Phase | : | 1 ph |
| Pilot Safety Device | : | Hot Surface Igniter |
| Power Supply | : | 115 V/1 Phase/60 Hz |
| Series | : | XR95 |
| Tonnage | : | 2.0 Ton |
| Uncrated Dimensions (HxWxD) | : | 40 x 17.5 x 28 in |
| Vent Size | : | 2 in Round in |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
Trane XR95 - TUH1B040A9H21B , 2T, 95% AFUE, 40,000 BTU, 115V, PSC Fan Motor, Upflow / HorizontalCondensing Single Stage Gas Furnace
- ComfortLink™ II communicating capability
- Durable silicon nitride hot surface igniter
- Heavy gauge, two-tone powder-painted cabinet
- Fully modulating gas heat furnace provides greater fuel efficiency and ultimate comfort control
- Variable-speed blower motor
- One-piece aluminized steel primary heat exchanger
- Multi-port, in-shot burners
