| Additional Information | : | 3/8 in Tube, Non-Bleed TXV Control, 3/4 in NPT Drain |
| BTU Rating | : | 18,000 - 48,000 Btu/hr |
| CFM Rating | : | 600 - 1,600 cfm |
| Coil Type | : | Cased-A Coil |
| Configuration | : | Multi Position with Kit |
| Connection Size | : | 3/4 x 3/8 in |
| Connection Type | : | Brazed |
| Cooling Capacity | : | 30,000 BTU |
| Dimensions | : | 21.35 in H x 20.5 in W x 26.5 in D |
| Enclosure Type | : | Cased |
| Face Area | : | 3.5 sq-ft |
| Material | : | Aluminum |
| Metering Device | : | Non-Bleed TXV |
| Nominal Capacity | : | 1.5-3.0 ton |
| Number of Rows | : | 3 |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 14 |
| Series | : | 4PXC |
| Tonnage | : | 1.5-4.0 Ton |
| Width | : | 17.5 in |
The 4PXC-D cased coil is a dedicated downflow model, which can also be configured for horizontal right with an optional kit. The 4PXC-U is a upflow/downflow model, which can be adapted to horizontal left/right with an optional kit. Both are 1.5"5 ton units. Our all-aluminum coils are designed to work with your outdoor condensing unit or furnace. They are matched in size, efficiency and capacity to ensure optimal performance of your home comfort system. The coil serves as a heat exchanger"working with your heating system in the winter and your cooling system in the summer"featuring a new, enhanced fin design for greater heat transfer.

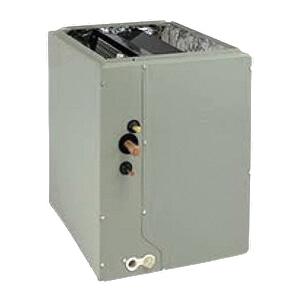

Trane - 4PXCBU30BS3HAB, 1.5-4T, R410A, 30,000 BTU, Multi Position with Kit, Heat Pump Cased A-Coil with TXV
- The dedicated Upflow and Downflow coils are designed for cooling and heat pump applications. The coil uses 3/8" seamless aluminum tubing mechanically bonded to aluminum plate fin.
- Refrigerant for the PXC is controlled with a factory installed Non-Bleed TXV refrigerant control. Refrigerant connections are brazed fittings.
- The coil cabinet has a removable front and interior access panel for evaporator coil entering air surface cleaning.
- Upflow coils can be converted to horzontal left and downflow coils can be converted to horizontal right with optional kit purchased separately
- coils are A.H.R.I. certified with Trane and American Standard's matching condensing units.
