| Additional Information | : | Outdoor Unit: Compressor LRA: 83.2|Outdoor Unit: Compressor Type: Scroll|Outdoor Unit: Fan Motor FLA: 0.64|Outdoor Unit: Refrigerant Control: Expansion Valve|Power Supply: 208/230 V/1 Phase/60 Hz|Refrigerant Charge lbs: 5 lbs-10 oz|Refrigerant Control: TXV|Refrigerant Type: R-454B|Rows - Fins per Inch: 24|SEER: |SEER2: |Sound Rating (dB): |Stages: |System Control Type: 24 V|Tonnage: 3|Tube Size (in): 3/8 |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| Blower Diameter | : | 27.5 in |
| Blower Motor Type | : | PSC |
| Br. Cir. Prot. Rating. - Max (Amps) | : | 19 |
| Charging Specification Subcooling | : | 10 deg F |
| Coil Type | : | Spine Fin |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 75 |
| Compressor RLA | : | 13.5 |
| Compressor Stages | : | Single Stage |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Crated Dimensions (H X W X D) | : | 38-1/2 x 35 x 37-8/9 in |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| Factory Charged | : | Yes |
| Factory Installed Start Components | : | BAYKSKT263 |
| Family Description | : | R-454B Heat Pump |
| Full Load Amperage (FLA) | : | 0.64 |
| Fuse Rating | : | 30 A |
| HSPF2 Range | : | 7.5 |
| Line Size - Liquid (in) | : | 5/16 |
| Line Size - Suction (In) | : | 3/4 |
| MCA | : | 19 |
| Max Breaker Size, Without Electric Heater (Amps) | : | 30 |
| Max Fuse | : | 30 A |
| Motor Power Rating | : | 208/230 V/1 Phase/60 Hz |
| Motor Speed | : | 850 rpm |
| Noise Level | : | 70 dba |
| Number of Outdoor Fan Used | : | 1 |
| Number of Stages | : | Single |
| Outdoor Coil-Face Area sq-ft | : | 24 |
| Outdoor Coil-Rows | : | 1 |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Outdoor Fan - CFM | : | 4230 |
| Outdoor Fan - Diameter In | : | 27.5 |
| Outdoor Fan - Drive | : | Direct |
| Outdoor Fan - HP | : | 1-1/8 |
| Outdoor Fan - Speed | : | 850 |
| Outdoor Fan - Type | : | Propeller |
| Phase | : | 1.0 ph |
| Product Family Series | : | Choice |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 14 |
| SEER2 Range | : | 7.5 |
| Series | : | 14 Single Stage Heat Pump |
| Stage | : | 1 |
| Tonnage | : | 3 |
| Tonnage | : | 3.0 Ton |
| Volts | : | 208/230 V |

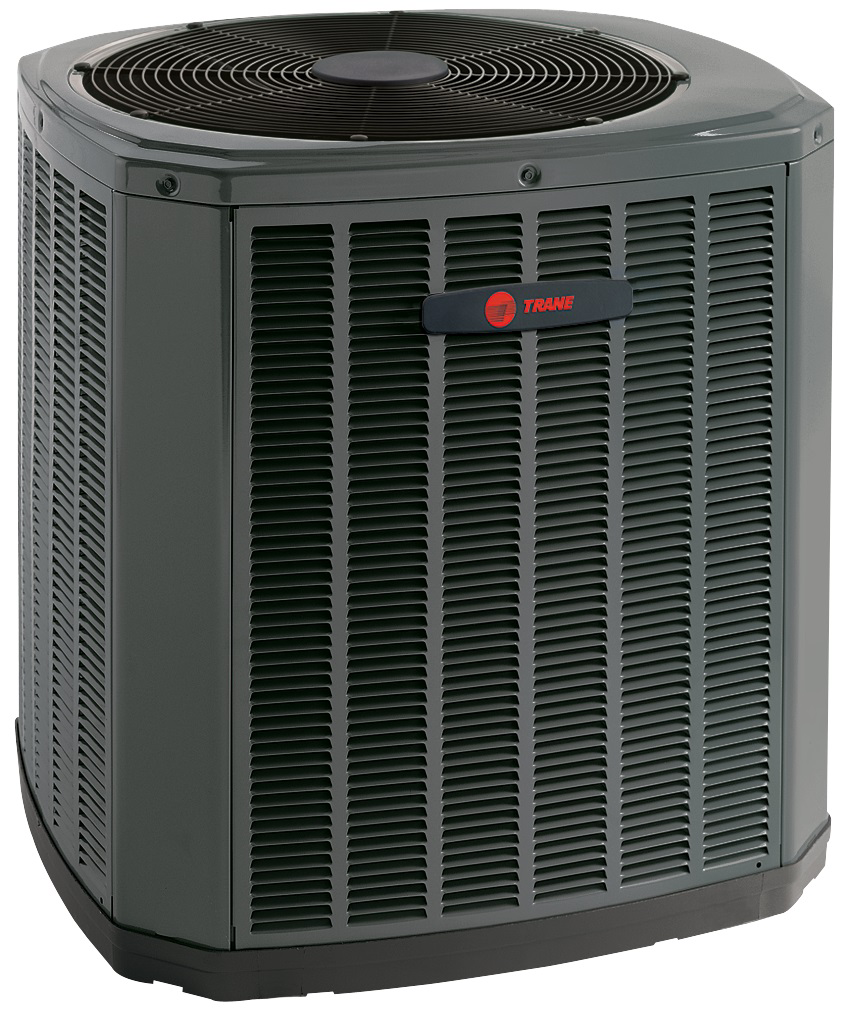

Trane 5TWR4036A1000A,Choice, 3T, 14 SEER2, 36,000 BTU, 208/230V, R454B, 7.5 HSPF, Single Stage Heat Pump
- 14 Single-Stage Heat Pump outdoor products using R-454B refrigerant!
- New TXV and refrigeration designs that are optimized for maximum performance using the new refrigerant
- Compatibility with existing accessories and kits
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
