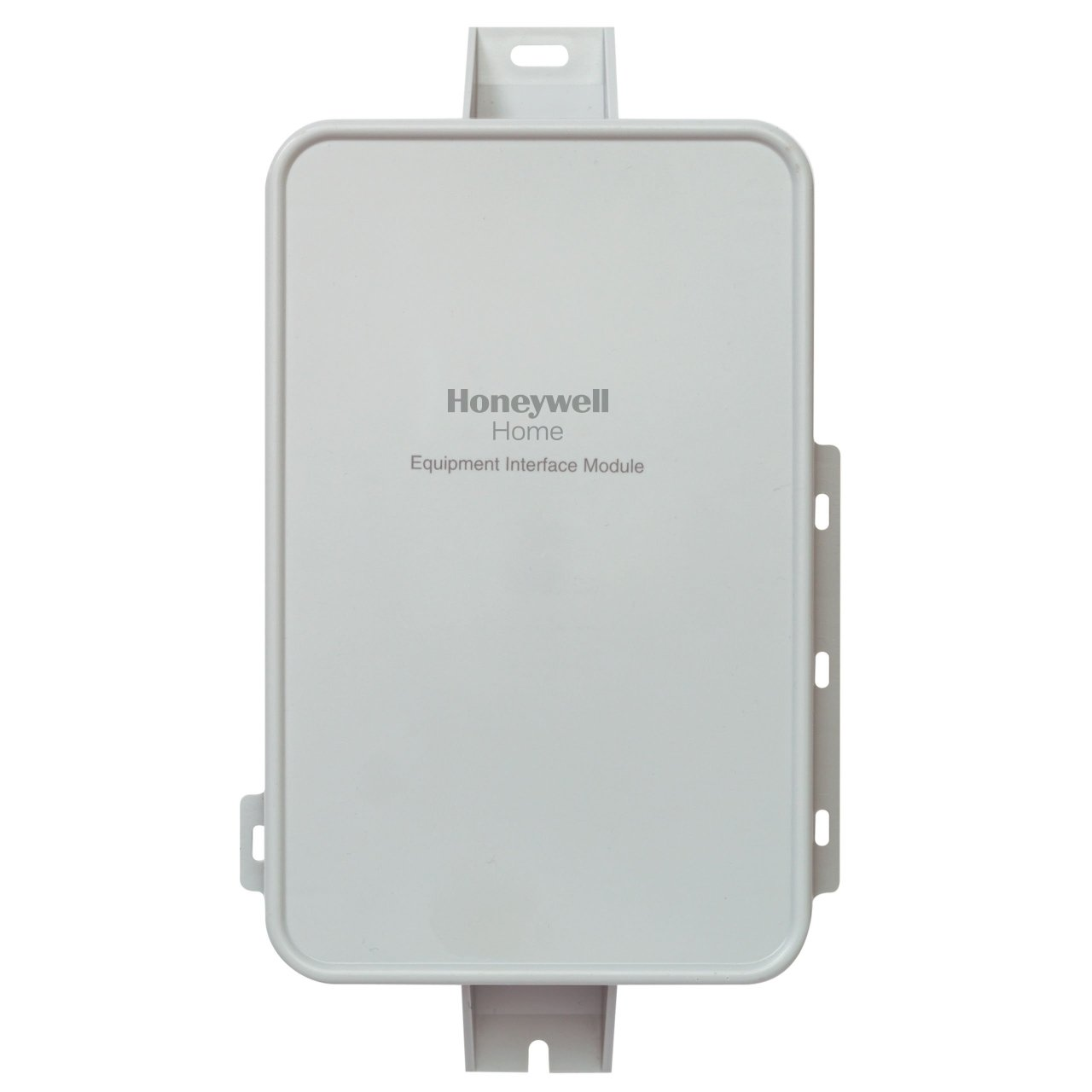

Resideo Prestige IAQ / VisionPRO THM5421R1021 Equipment Interface Module, Vertical, 9-5/16" H x 4-13/16" W x 1-5/8" D Dimensions, Gray, 2-Wire, Screw Terminals, Hardwired, 18-30 VAC
Resideo Prestige IAQ / VisionPRO THM5421R1021 Equipment Interface Module, Vertical, 9-5/16" H x 4-13/16" W x 1-5/8" D Dimensions, Gray, 2-Wire, Screw Terminals, Hardwired, 18-30 VAC
| Amperage Rating | : | 1.0 A (Cool Running); 1.0 A (Heat Running); 0.5 A (Fan Running) |
| Color | : | Gray |
| Configuration | : | 2-Wire |
| Dimensions | : | 9-5/16" H x 4-13/16" W x 1-5/8" D |
| End Connection | : | Screw Terminals |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Humidity Rating | : | 5-95% (Non-Condensing) |
| Model | : | THM5421R1021 |
| Mounting Type | : | Vertical |
| Power Method | : | Hardwired |
| Series | : | Prestige IAQ / VisionPRO |
| Stages | : | 4 H / 2 C (Heat Pump), 3 H / 2 C (Conventional) |
| Temperature Rating | : | -40-165 °F |

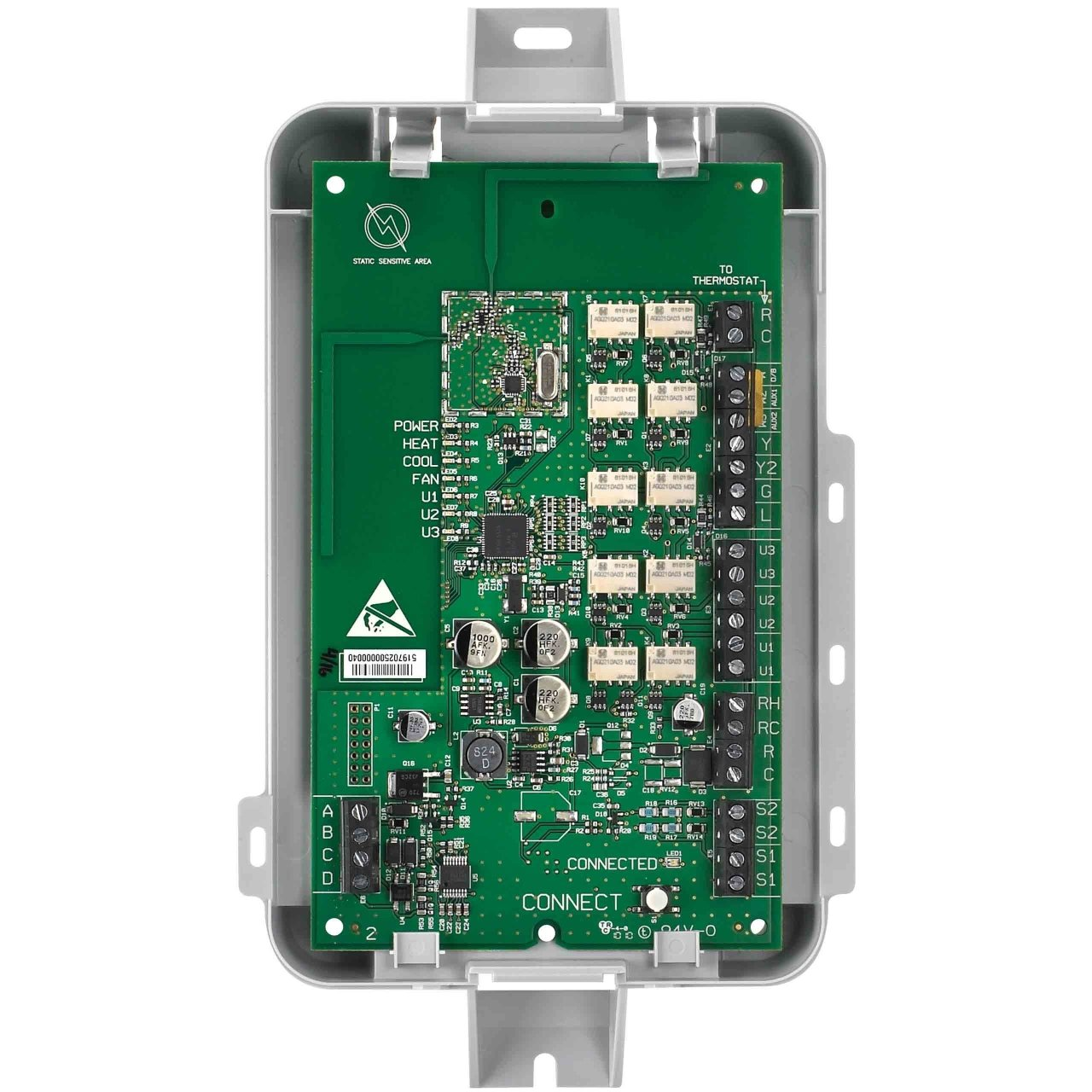

This Equipment Interface Module (EIM) controls multi-stage HVAC systems, supporting up to 4 stages of heat and 2 stages of cool for heat pumps, or up to 3 stages of heat and 2 stages of cool for conventional systems. Compatible with RedLINK®-enabled thermostats, it features three sets of Universal IAQ contacts for managing humidification, dehumidification, and ventilation, along with four sensor inputs suitable for wired sensors or dry contact devices.
Resideo Equipment Interface Module, Model: Prestige IAQ / VisionPRO, Vertical, 9-5/16" H x 4-13/16" W x 1-5/8" D Dimensions, Gray, 2-Wire, Screw Terminals, Hardwired, 18-30 VAC, 1.0 A (Cool Running); 1.0 A (Heat Running); 0.5 A (Fan Running) Amperage Rating, 50 Hz, 60 Hz, -40-165 °F, 5-95% (Non-Condensing), 4 H / 2 C (Heat Pump), 3 H / 2 C (Conventional)
- Controls multi-stage systems: up to 4H/2C heat pump or 3H/2C conventional.
- Integrates IAQ control with three universal contacts for humidifiers, dehumidifiers, or ventilators.
- Accepts up to four wired sensor or dry contact inputs for enhanced monitoring.
- Enables wireless communication via RedLINK® technology.
- Compatible With: Resideo Prestige® IAQ and VisionPRO® thermostats featuring RedLINK® technology.
- Hardwired connection using screw terminals for reliable power (18-30 VAC).
