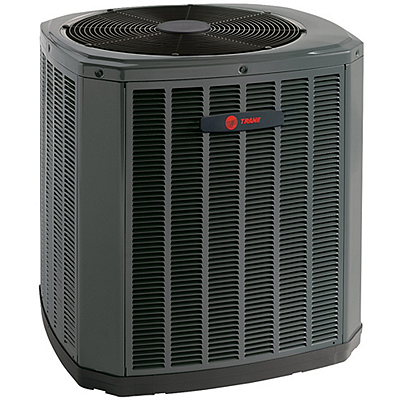

TRANE® 5TTA3048A3000A 4.0 Ton Single-Stage Split System Air Conditioner, 14.3 SEER2, R-454B, 208/230V 3Ph
TRANE® 5TTA3048A3000A 4.0 Ton Single-Stage Split System Air Conditioner, 14.3 SEER2, R-454B, 208/230V 3Ph
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390513
MPN: 5TTA3048A3000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
| BTU Cooling Rating | : | 48,000 Btu/hr |
| Compressor Type | : | Scroll |
| Energy Star Certified | : | No |
| Liquid Line Size | : | 5/16 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 8.6 A |
| Model Number | : | 5TTA3 |
| Number of Rows | : | 1 |
| Number of Stages | : | Single Stage |
| Packaged Depth | : | 38 in |
| Packaged Height | : | 42.5 in |
| Packaged Width | : | 35 in |
| Phase | : | 3 ph |
| Product Family | : | Choice |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 14.3 |
| SEER | : | 13.0 |
| Sound Level | : | 71.0 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
The TRANE® 5TTA3048A3000A is a 4.0 Ton single-stage split system air conditioner from the Choice line. It delivers 48,000 Btu/hr of cooling capacity. Efficiency ratings include 14.3 SEER2. Features include a scroll compressor. The unit uses R-454B refrigerant and operates on 208/230 V, 3-phase power. It has a minimum circuit ampacity of 8.6 A and a maximum breaker size of 35 A. Refrigerant connections are 5/16 in liquid and 7/8 in suction. Rated sound level is 71.0 dBA.
