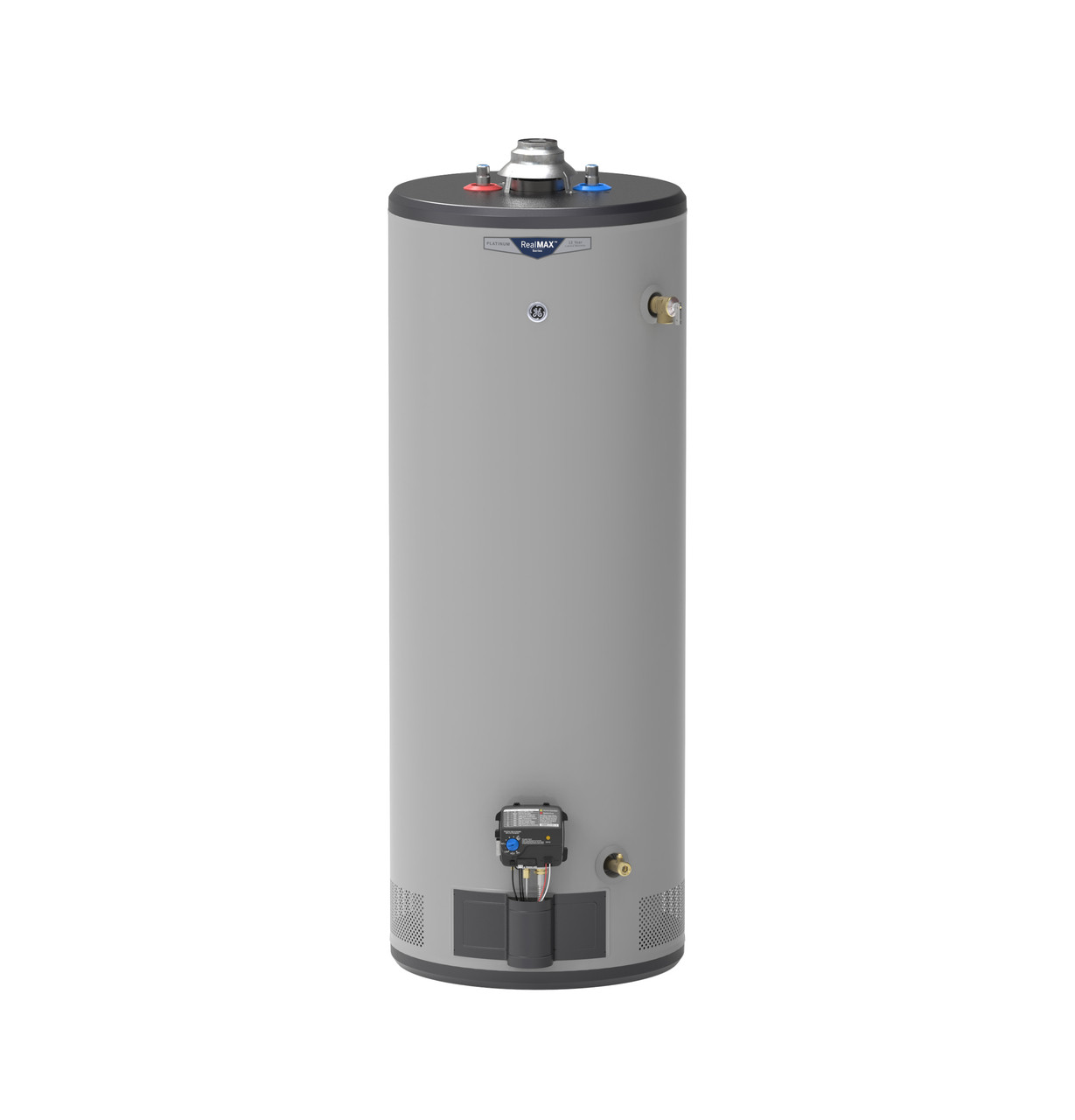

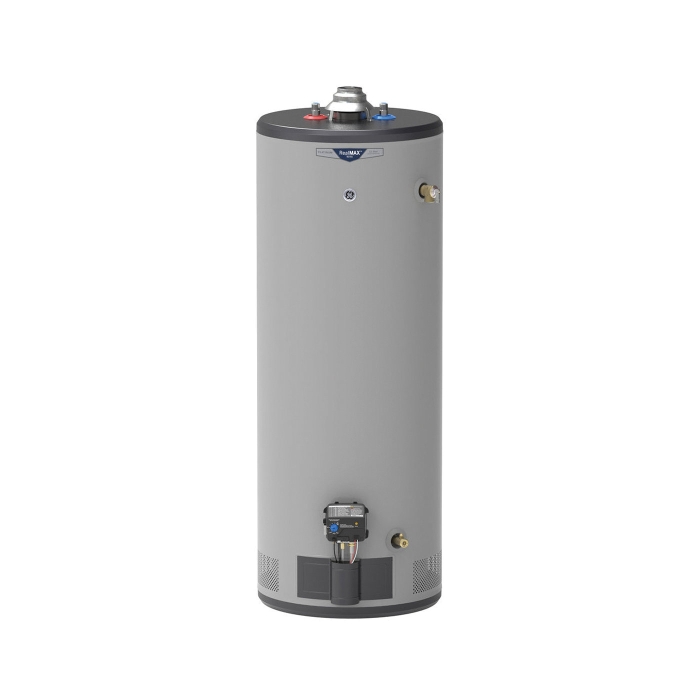

General Electric RealMAX Platinum GP50T12BXR Tall LP Water Heater, 50 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 82 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant
General Electric RealMAX Platinum GP50T12BXR Tall LP Water Heater, 50 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 82 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant
| Altitude | : | 10,100 ' |
| BTU Rating | : | 36,000 BTU/hr |
| Capacity | : | 50 gallons |
| Color | : | Gray |
| Connection Type | : | 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection) |
| Dimensions | : | 61-3/8" H x 22" W x 22" D |
| Domestic/Import | : | Domestic |
| Efficiency | : | 64% (UEF), 78% (Recovery Efficiency) |
| Energy Factor | : | 0.64 UEF |
| Energy Star Compliant | : | No |
| First Hour Delivery | : | 82 GPH |
| Fuel Type | : | Propane (LP) |
| Ignition System | : | Standing Pilot |
| Ignition Type | : | Standing Pilot |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel (Tank), Magnesium (Anode Rod) |
| Model | : | GP50T12BXR |
| Mounting Type | : | Floor Mount |
| Recovery Efficiency | : | 78 % |
| Recovery Rate | : | 37.4 GPH (At 90°F Rise) |
| Series | : | RealMAX Platinum |
| Temperature Rating | : | 45-160 °F (Adjustable Setting) |
| Vent Diameter | : | 3 " |
| Vent Size | : | 3 " |
| Vent Type | : | Atmospheric |
This RealMAX Platinum water heater provides ample hot water for households of 3 to 5+ people, holding a true 50 gallons. It features a 36K BTU burner for quick recovery, replenishing hot water rapidly with an 82-gallon First Hour Delivery. Designed for durability, it includes a magnesium anode rod for long-lasting corrosion protection and a rust-proof brass drain valve. Standard water and gas connections allow for straightforward replacement of older units.Safety features include the SmartShieldâ„¢ system, which monitors ambient air and shuts off the unit if abnormal temperatures are detected, along with an FVIR system to prevent flammable vapor ignition. A self-diagnostic LED indicator monitors and reports gas system status. This model comes with a 12-year limited tank and parts warranty and is designed for atmospheric venting.
General Electric Tall LP Water Heater, Model: RealMAX Platinum, 50 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 82 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 61-3/8" H x 22" W x 22" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, 0.78 Recovery Efficiency, Domestic, Lead-Free, Gray
- Provides 50 gallons of hot water, suitable for households of 3-5+ people.
- Features a 36,000 BTU burner delivering up to 82 gallons in the first hour (FHR).

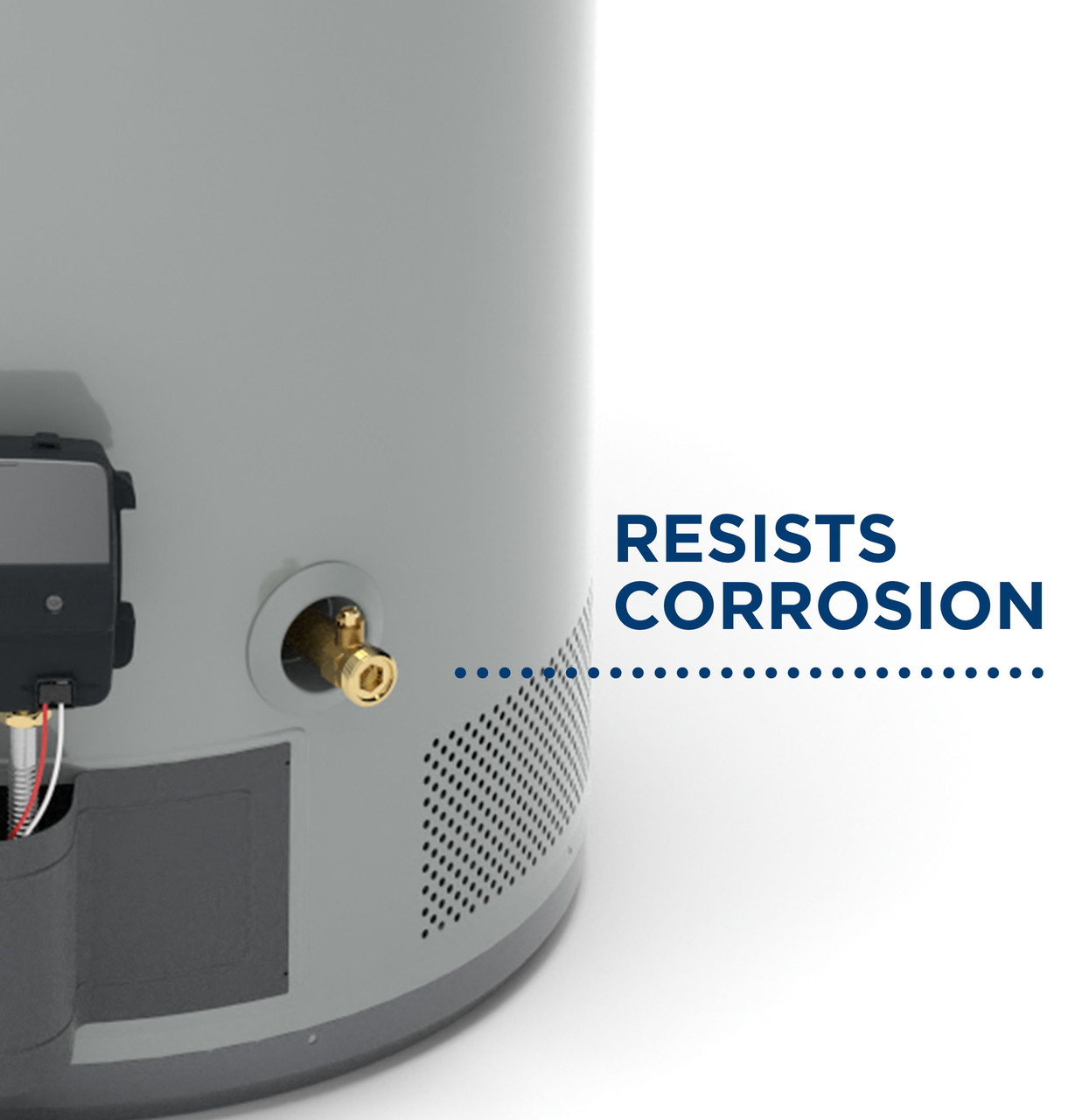

- Includes a magnesium anode rod and brass drain valve for enhanced durability and corrosion resistance.
- SmartShieldâ„¢ Safety System monitors ambient air and shuts off the unit if abnormal temperatures are detected.
- Self-diagnostic LED indicator provides gas system status updates.
- Uses standard connections (3/4" water, 1/2" gas) for straightforward installation.
- Covered by a 12-year limited tank and parts warranty.
- UL Listed and certified lead-free to NSF/ANSI 372.
