| AHRI Model Number | : | 4TTR3036N1 |
| Additional Information | : | Start Kit Model Number (Field-Supplied): No|Tier: XR13|Tonnage: 3|Uncrated Dimensions (HxWxD): 28.75 x 32.63 x 29.75 in|Voltage: 208/230 V |
| Airflow CFM | : | 3030.0 |
| BTU Rating | : | 36,000 Btu/hr |
| Blower Diameter | : | 23 in |
| Charging Specification Subcooling | : | 10 deg F |
| Coil Face Area (Sq-Ft) | : | 16.25 |
| Coil Rows | : | 1 |
| Coil Type | : | Spine Fin |
| Communicating | : | Non-communicating |
| Compressor Insulation/Sound Blanket | : | No |
| Compressor LRA | : | 87.4 |
| Compressor RLA | : | 14.1 |
| Compressor Sump Heater Factory Installed | : | No |
| Compressor Type | : | Scroll |
| Elec Hertz | : | 60 Hz |
| Elec Phases | : | 1 ph |
| Elec Volts | : | 208/230 V |
| FPI | : | 24.0 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 0.64 |
| Fan Type | : | Propeller |
| Frequency (Hz) | : | 60 Hz |
| Full Load Amperage (FLA) | : | 0.74 |
| Full Octave Sound Power[dB] | : | 73 at 63 Hz, 73 at 125 Hz, 72 at 250 Hz, 69 at 500 Hz, 68 at 1000 Hz, 60 at 2000 Hz, 52 at 4000 Hz, 45 at 8000 Hz |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 3/4 |
| MCA | : | 18 |
| Max Amps | : | 30.0 |
| Max Fuse | : | 30.0 amps |
| Max SEER2 | : | 13.8 |
| Min SEER2 | : | 13.4 |
| Model | : | 4TTR |
| Motor (RPM) | : | 850.0 |
| Motor Power Rating | : | 200/230 V/1 Phase/60 Hz |
| Nominal Capacity BTU Rating | : | 36,000 |
| Nominal Capacity | : | 3.0 tons |
| Number of Compressor | : | 1.0 |
| Number of Stages | : | Single Stage |
| Outdoor Coil-Tube Size (In) | : | 3/8 |
| Phase | : | 1.0 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Product Type | : | Split System Cooling |
| Refrigerant Charge lbs | : | 5.0 |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 13 |
| SEER | : | 13 |
| Series | : | XR13 |
| Sound Level | : | 71 dBA |
| Sound Rating (dB) | : | 71.0 |
| Split System Connection | : | Brazed |
| Stages | : | 1.0 |
| Tonnage | : | 3.0 Ton |
| Voltage | : | 208/230 V |

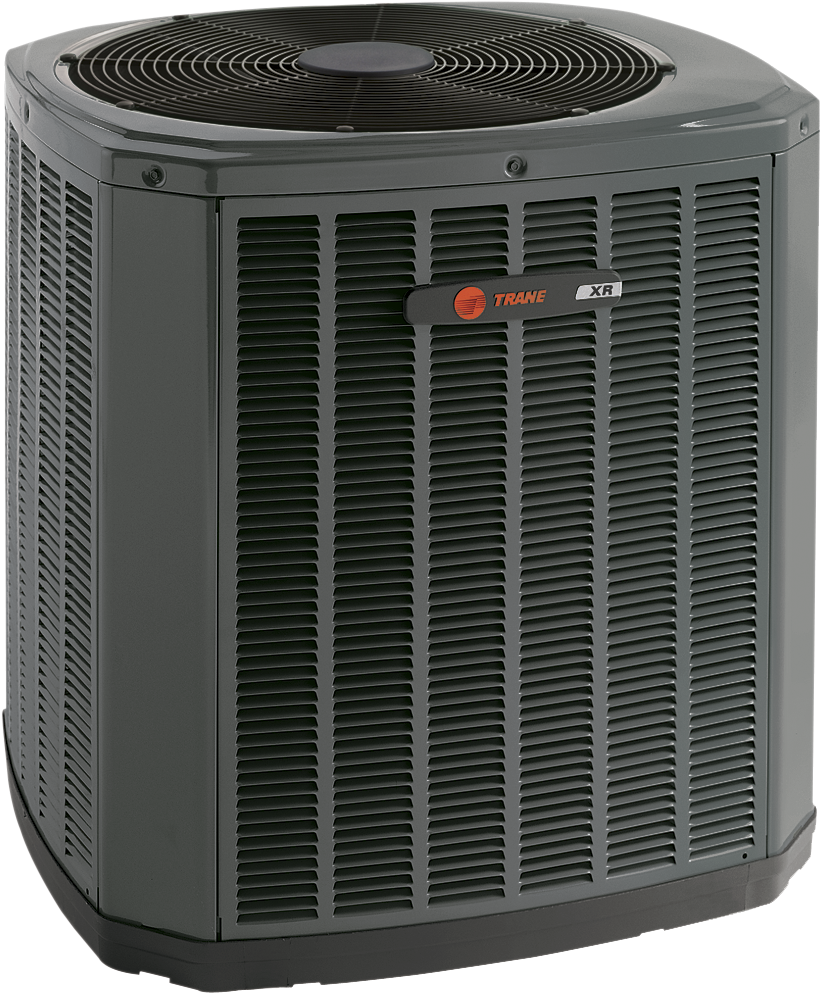

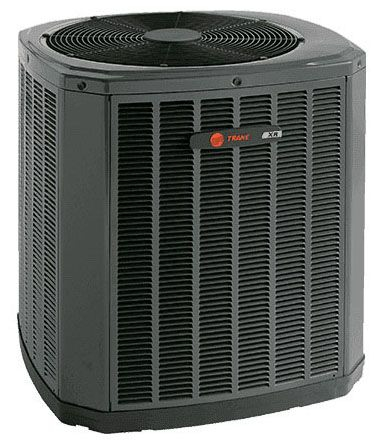

Trane XR13 - 4TTR3036N1000B, 3T, 13 SEER, 36,000 BTU, 208/230V, R410A, Single Stage Air Conditioner
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels
- This unit is designed to operate at outdoor ambient temperatures as high as 115°F. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.
