Sterling HVAC RSS/RSU 1144135010 Tube and Reflector Extension, 20' Size, Hot-Rolled Steel, Hot Rolled
Sterling HVAC RSS/RSU 1144135010 Tube and Reflector Extension, 20' Size, Hot-Rolled Steel, Hot Rolled
| Dimensions | : | 4" Diam (Tube) x 20' L |
| Finish | : | Hot Rolled |
| Material | : | Hot-Rolled Steel |
| Series | : | RSS/RSU |
| Size | : | 20 ' |
| Suitable For Use With | : | Sterling Low Intensity Infrared Heaters: RSS Series, RSU Series |

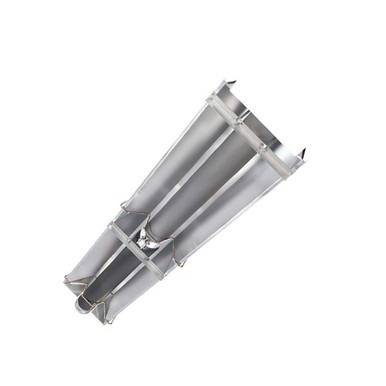

This is a 20-foot tube and reflector extension kit designed for use with Sterling RSS and RSU series commercial low-intensity infrared heaters. It features hot-rolled steel tubing with a 4-inch outer diameter and includes reflectors that can be individually rotated up to 45 degrees to direct heat precisely.This extension package requires field assembly and must be paired with the appropriate Sterling tube and reflector kit and burner box (sold separately) to create a complete heating system. It includes easy-to-use mounting brackets and wire hangers for installation.
Sterling HVAC Tube and Reflector Extension, Model: RSS/RSU, 20' Size, Hot-Rolled Steel, Hot Rolled
- Extends Sterling RSS/RSU infrared heater systems by 20 feet.
- Constructed from durable, hot-rolled steel tubing with a 4-inch outer diameter.
- Individual reflectors can be rotated up to 45 degrees for targeted heat distribution.
- Includes easy-to-use mounting brackets and wire hangers for straightforward installation.
- Compatible with optional 90/180-degree elbows and U-Bend package (1143208040) for flexible configurations.
- Features a 5-year limited warranty on emitter tubes.
- Designed for vented or indirect vented operation.
- Suitable For Use With: Sterling Low Intensity Infrared Heaters: RSS Series, RSU Series
