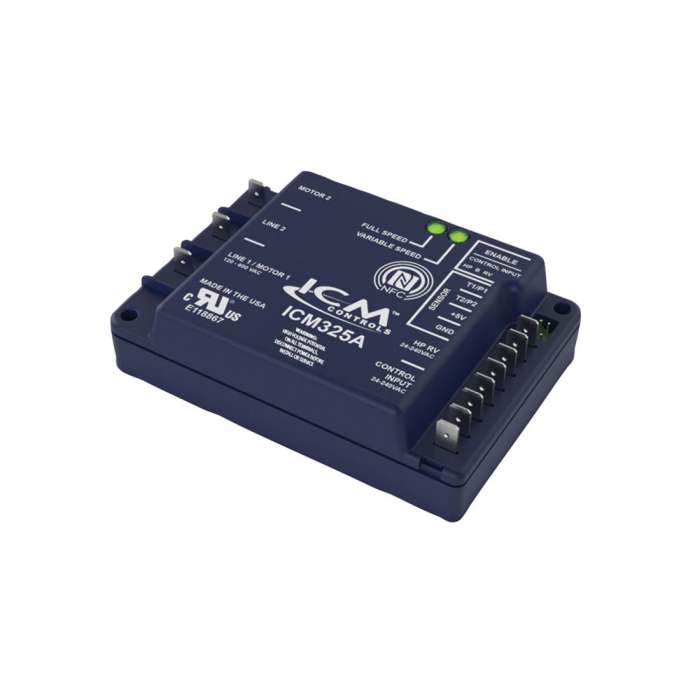

General Electric ICM Controls ICM325A Single Phase Head Pressure Control, 120-600 VAC (Line), 24-240 VAC (Control, Jumper Enabled), 24-240 VAC (Heat Pump Reversing Valve Input), 10 A (Maximum Motor Output) Amperage Rating, 2 Temperature Sensors, 2 Pressure Sensors, Variable Voltage Fan Speed Control, -40-167 °F, 4-3/4" Overall Length, 3-1/4" Overall Width
General Electric ICM Controls ICM325A Single Phase Head Pressure Control, 120-600 VAC (Line), 24-240 VAC (Control, Jumper Enabled), 24-240 VAC (Heat Pump Reversing Valve Input), 10 A (Maximum Motor Output) Amperage Rating, 2 Temperature Sensors, 2 Pressure Sensors, Variable Voltage Fan Speed Control, -40-167 °F, 4-3/4" Overall Length, 3-1/4" Overall Width
| Additional Information | : | 1.8 VA Rating, 10 kOhm at 77 deg F Temperature Sensors |
| Amperage Rating | : | 10 A (Maximum Motor Output) |
| Dimensions | : | 4-3/4 in L x 3-1/4 in W x 1-3/4 in H |
| Frequency Rating | : | 50-60 Hz |
| Inputs | : | 2 Temperature Sensors, 2 Pressure Sensors |
| Outputs | : | Variable Voltage Fan Speed Control |
| Overall Depth | : | 4-3/4 " |
| Overall Length | : | 4-3/4 " |
| Overall Width | : | 3-1/4 " |
| Phase | : | 1 ph |
| Series | : | ICM Controls |
| Suitable For Use With | : | A/C and Heat Pumps |
| Temperature Rating | : | -40-167 °F |
| Voltage Rating | : | 120-600 VAC (Line), 24-240 VAC (Control, Jumper Enabled), 24-240 VAC (Heat Pump Reversing Valve Input) |
The ICM325A is designed to control head pressure in heat pumps and air conditioning units by modulating condenser fan speed. This allows the system to operate effectively even when outdoor temperatures are too low for normal operation, preventing issues caused by low head pressure.This control allows users to establish and adjust desired head pressure parameters using a mobile phone. Settings can be instantly applied to the device wirelessly via NFC Technology using the ICM OMNI App.
General Electric Single Phase Head Pressure Control, Model: ICM Controls, 120-600 VAC (Line), 24-240 VAC (Control, Jumper Enabled), 24-240 VAC (Heat Pump Reversing Valve Input), 10 A (Maximum Motor Output) Amperage Rating, 2 Temperature Sensors, 2 Pressure Sensors, Variable Voltage Fan Speed Control, -40-167 °F, 4-3/4" Overall Length, 3-1/4" Overall Width, 4-3/4" Overall Depth, 50-60 Hz
- Controls single-phase condenser fan speed based on temperature or pressure inputs to maintain head pressure in low ambient conditions.
- Features Near Field Communication (NFC) for easy setup and adjustment via the ICM OMNI mobile app.
- Accepts universal line voltage (120-600 VAC) and control voltage (24-240 VAC).
- Includes integral heat pump bypass circuitry for full fan speed during heating mode.
- Helps prevent evaporator freeze-ups, low pressure cut-outs, and liquid slugging.
- Handles motor loads up to 10 amps maximum.
- Compatible With: A/C and Heat Pump systems using single-phase PSC motors.
