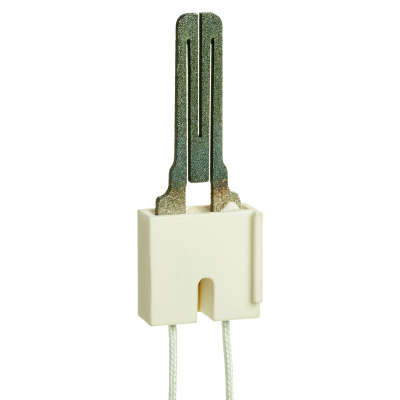

Resideo Q4100C Q4100C9054 Hot Surface Igniter, 120 V, Natural Gas, Propane (LP), 5-1/4" Lead Length, Molex (Male Pin), Rib Mount, Molex Connector (Side Lock), Male Pin (0.092") Terminal Type, Silicon Carbide
Resideo Q4100C Q4100C9054 Hot Surface Igniter, 120 V, Natural Gas, Propane (LP), 5-1/4" Lead Length, Molex (Male Pin), Rib Mount, Molex Connector (Side Lock), Male Pin (0.092") Terminal Type, Silicon Carbide
| Amperage Rating | : | 4.3 A |
| Color | : | Metallic |
| Connection Type | : | Molex (Male Pin) |
| Dimensions | : | 5-1/4" L |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Fuel Type | : | Natural Gas, Propane (LP) |
| Lead Length | : | 5-1/4 " |
| Material | : | Silicon Carbide |
| Mounting Type | : | Rib Mount |
| Series | : | Q4100C |
| Temperature Rating | : | 392 °F |
| Terminal Type | : | Molex Connector (Side Lock), Male Pin (0.092") |
| Voltage Rating | : | 120 V |
| Wire Size | : | 18 AWG |
Q4100C Hot Surface Igniters are designed to provide a robust field service replacement igniter in gas fired appliances with 120 VAC silicon carbide hot surface igniters. The Q4100C uses a 120 volt silicon carbide igniter design with long life and high resistance to damage or burn out in the appliance. Q4100C models include the silicon carbide igniter, bracket, screw, and wiring accessories to adapt the igniter to the specific appliance application. Q4100C igniters replace popular versions of Robertshaw, White-Rodgers, and Norton silicon carbide igniters.
Resideo Hot Surface Igniter, Model: Q4100C, 120 V, Natural Gas, Propane (LP), 5-1/4" Lead Length, Molex (Male Pin), Rib Mount, Molex Connector (Side Lock), Male Pin (0.092") Terminal Type, Silicon Carbide, 392 °F, Up To 4.3 A, 50 Hz, 60 Hz, 18 AWG, Metallic
- Durable silicon carbide construction ensures long life and high resistance to damage or burnout.
- Operates on a standard 120 VAC power supply.
- Features 5-1/4" lead wires with a Molex side lock connector (.092" male pins) for secure electrical connection.
- Kit includes igniter, mounting bracket, screw, and wiring accessories for adaptable field installation.
- Suitable for use in natural gas and propane (LP) fired appliances.
- Designed as a robust replacement for popular Robertshaw, White-Rodgers, and Norton 120V silicon carbide igniters.
- Backed by a 2-year manufacturer warranty.
