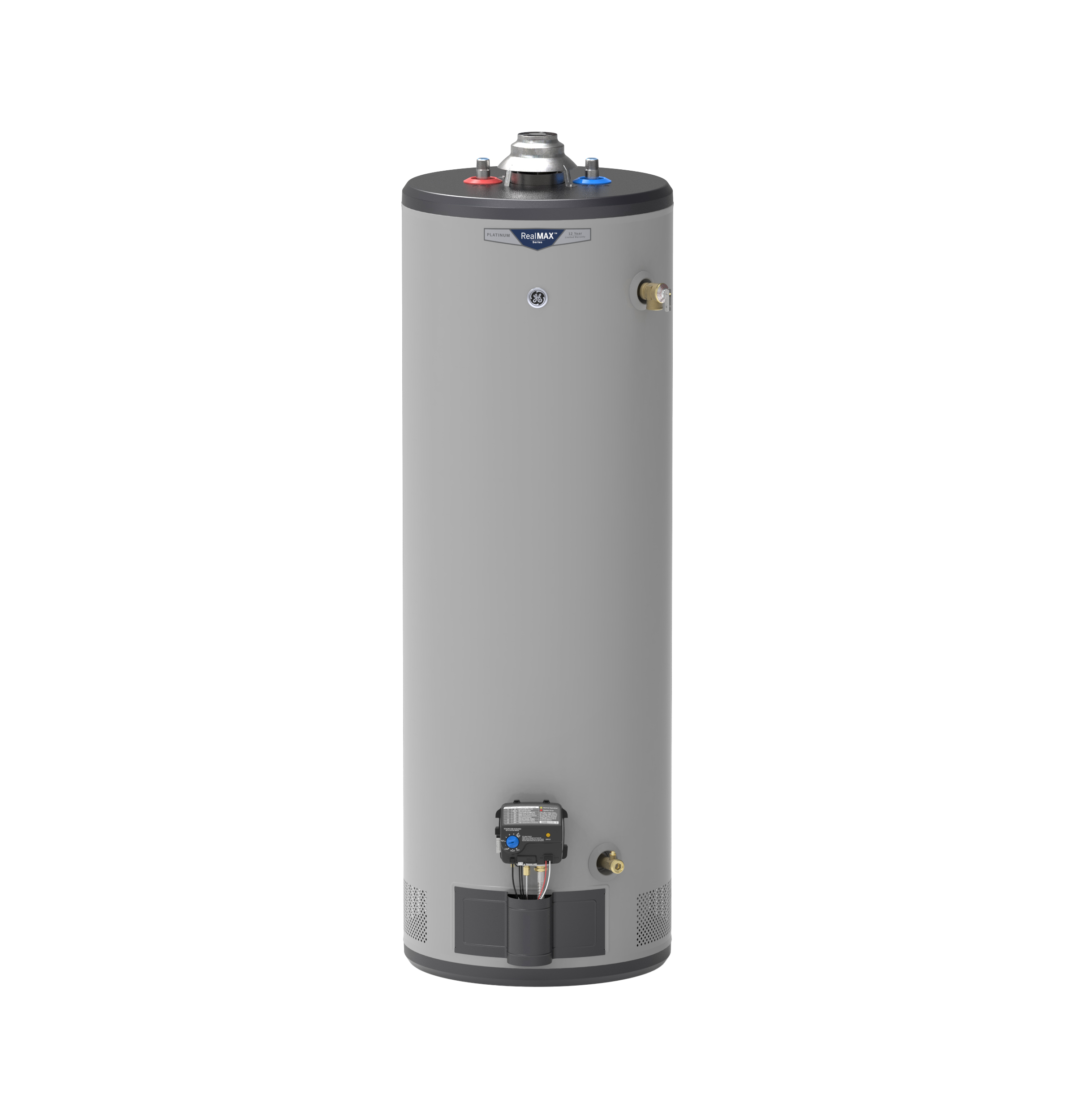

General Electric RealMAX Platinum GP40T12BXR Tall LP Water Heater, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant
General Electric RealMAX Platinum GP40T12BXR Tall LP Water Heater, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant
General Electric RealMAX Platinum GP40T12BXR Tall LP Water Heater, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant

General Electric RealMAX Platinum GP40T12BXR Tall LP Water Heater, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant

General Electric RealMAX Platinum GP40T12BXR Tall LP Water Heater, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant

Manufacturer: General Electric Company
Brand: GE
Part #: 387247
MPN: GP40T12BXR
Customer Part #:
Min. Order Qty: 1
Login for Availability
Altitude      :      10,100 '
BTU Rating      :      36,000 BTU/hr
Capacity      :      40 gallons
Color      :      Gray
Connection Type      :      3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection)
Dimensions      :      61-7/8" H x 20" W x 20" D
Domestic/Import      :      Domestic
Efficiency      :      64% (UEF), 78% (Recovery Efficiency)
Energy Factor      :      0.64 UEF
Energy Star Compliant      :      No
First Hour Delivery      :      84 GPH
Fuel Type      :      Propane (LP)
Ignition System      :      Standing Pilot
Ignition Type      :      Standing Pilot
Lead-Free/Contains Lead      :      Lead-Free
Material      :      Steel (Tank), Magnesium (Anode Rod)
Model      :      GP40T12BXR
Mounting Type      :      Floor Mount
Recovery Efficiency      :      78 %
Recovery Rate      :      37.4 GPH (At 90°F Rise)
Series      :      RealMAX Platinum
Temperature Rating      :      45-160 °F (Adjustable Setting)
Vent Diameter      :      3 "
Vent Size      :      3 "
Vent Type      :      Atmospheric

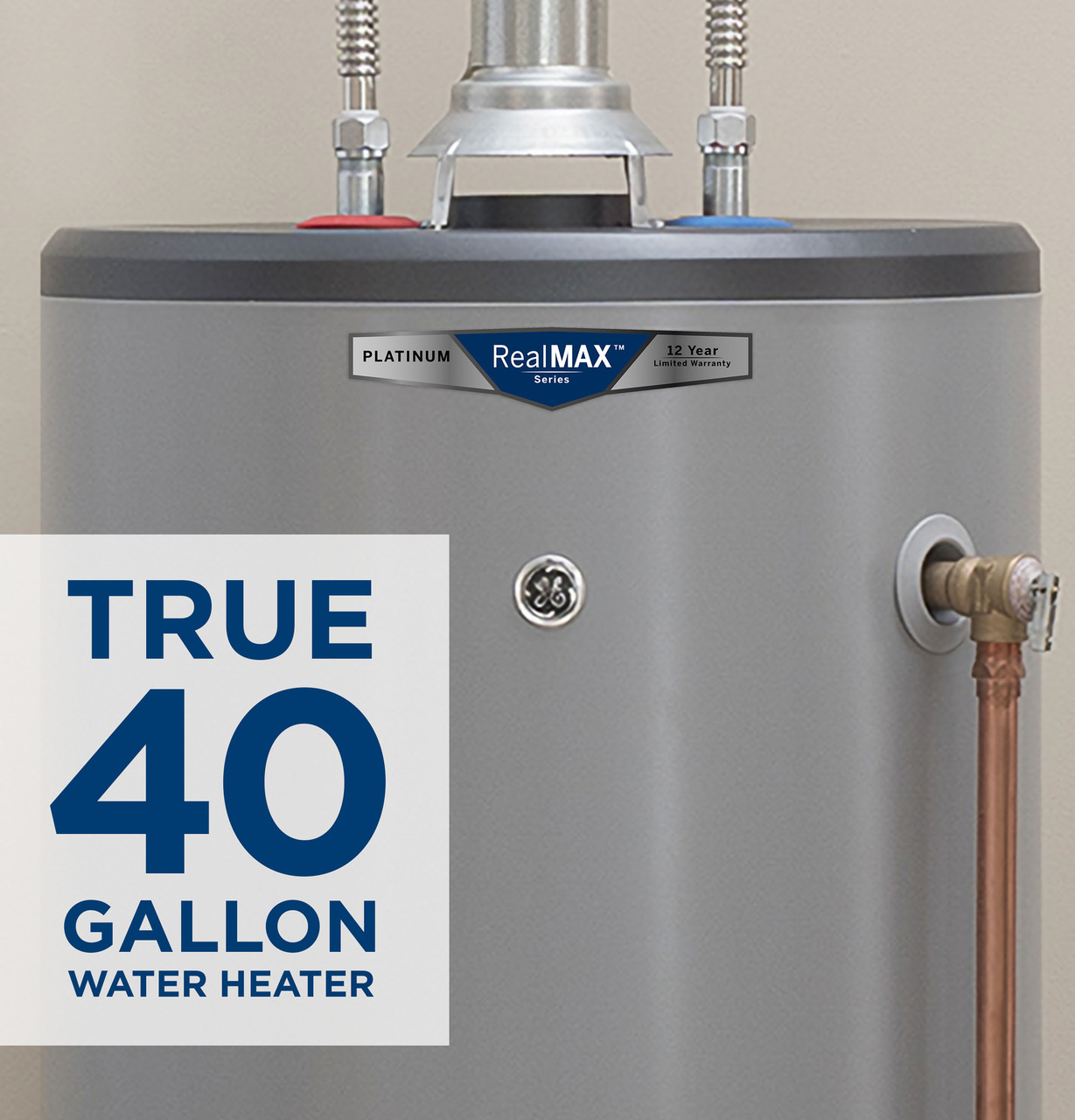

This RealMAX Platinum water heater delivers reliable hot water for households of 2 to 5 people, featuring a true 40-gallon capacity. Its 36,000 BTU burner provides quick hot water recovery, ensuring consistent availability. The unit is designed for straightforward replacement installations using standard water and gas connections.Key features include a durable anode rod for extended tank life through corrosion protection, a rust-proof brass drain valve, and the SmartShieldâ„¢ safety system that monitors ambient air and shuts off the unit if abnormal temperatures are detected. A self-diagnostic system also reports gas system status via an LED indicator. This model comes with a 12-year limited tank and parts warranty.

General Electric Tall LP Water Heater, Model: RealMAX Platinum, 40 Gallons Capacity, 36,000 BTU/hr, Propane (LP), 84 GPH First Hour Delivery, 37.4 GPH (At 90°F Rise) Recovery Rate, 0.64 UEF, No Energy Star Compliant, Atmospheric Vent Type, 3" Vent Size, 3/4" MNPT (Water Inlet/Outlet), 1/2" (Gas Connection), 61-7/8" H x 20" W x 20" D Dimensions, Floor Mount, 45-160 °F (Adjustable Setting), Standing Pilot, Steel (Tank), Magnesium (Anode Rod), 10,100' Altitude, 0.78 Recovery Efficiency, Domestic, Lead-Free, Gray

  • Holds a true 40 gallons of water for reliable capacity.
  • Designed for households of 2-5 people.
  • Quickly replenishes hot water with a 36,000 BTU burner.
  • SmartShieldâ„¢ Safety System monitors ambient air and shuts off unit if abnormal temperatures arise.
  • Self-diagnostic system monitors and reports gas system status via LED indicator.
  • Features a durable magnesium anode rod and rust-proof brass drain valve for extended life.
  • Backed by a 12-year limited tank and parts warranty.
  • Energy Guide https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/energy-guide-3329-5405.pdf
  • Brochure https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/ge-atmospheric-gas-water-heater-product-guide-3329-3402.pdf
  • Specification Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/gp40t12bxr-specification-sheet-3329-5406.pdf
  • Owner Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/use-care-manual-3329-3392.pdf
