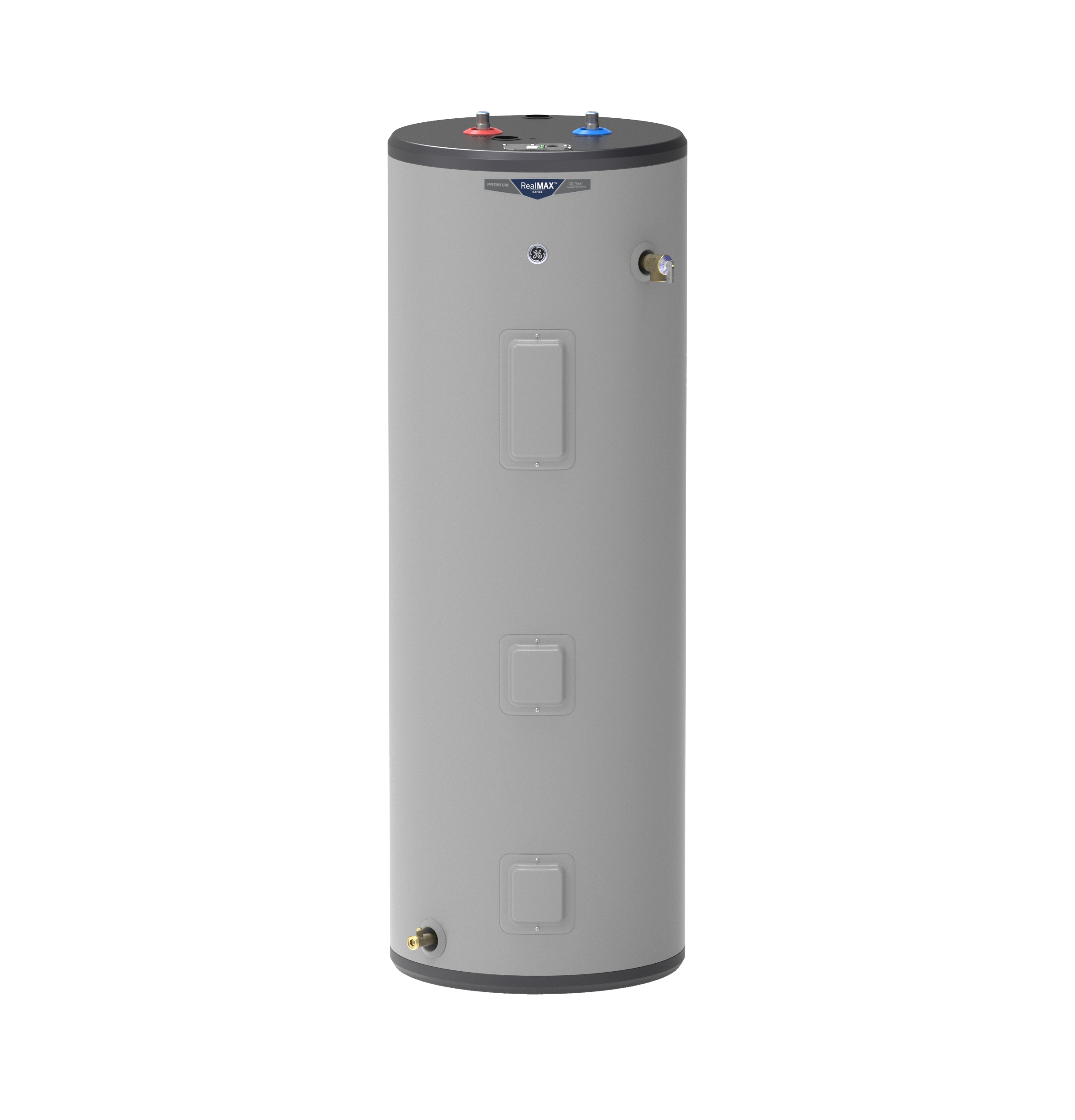

General Electric GE50T10BAM Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
General Electric GE50T10BAM Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements
| Additional Information | : | 142 lb Weight |
| Amperage Rating | : | 30 A (MCA) |
| Capacity | : | 50 gallons |
| Color | : | Gray |
| Connection Size | : | 3/4" MNPT (Water Inlet/Outlet) |
| Connection Type | : | MNPT |
| Dimensions | : | 22" Diam x 63-3/4" H |
| Efficiency | : | 93% (UEF) |
| Element Material | : | Stainless Steel |
| Element Type | : | Low Density Stainless Steel |
| Element Wattage | : | 5.5 kW (Upper), 5.5 kW (Lower) |
| Energy Factor | : | 0.93 UEF |
| Finish | : | Gray |
| First Hour Delivery | : | 76 gallons |
| Frequency Rating | : | 60 Hz |
| Fuse Size | : | 30 A (MCA) |
| Fuse Type | : | Circuit Breaker |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Stainless Steel (Heating Elements), Brass (Drain Valve) |
| Model | : | GE50T10BAM |
| Mounting Type | : | Floor Mount |
| Number of Elements | : | 2 |
| Power Rating | : | 5,500 W (Upper), 5,500 W (Lower) |
| Pressure Rating | : | 20-125 PSI (Operating) |
| Recovery Rate | : | 25.1 GPH (At 90°F Rise) |
| Temperature Rating | : | 90-150 °F (Adjustable Setting) |
| Thermostat Type | : | Adjustable |
| Voltage (MAX) | : | 240.0 |
| Voltage Rating | : | 240 V |
| Wiring Type | : | Direct Wire |

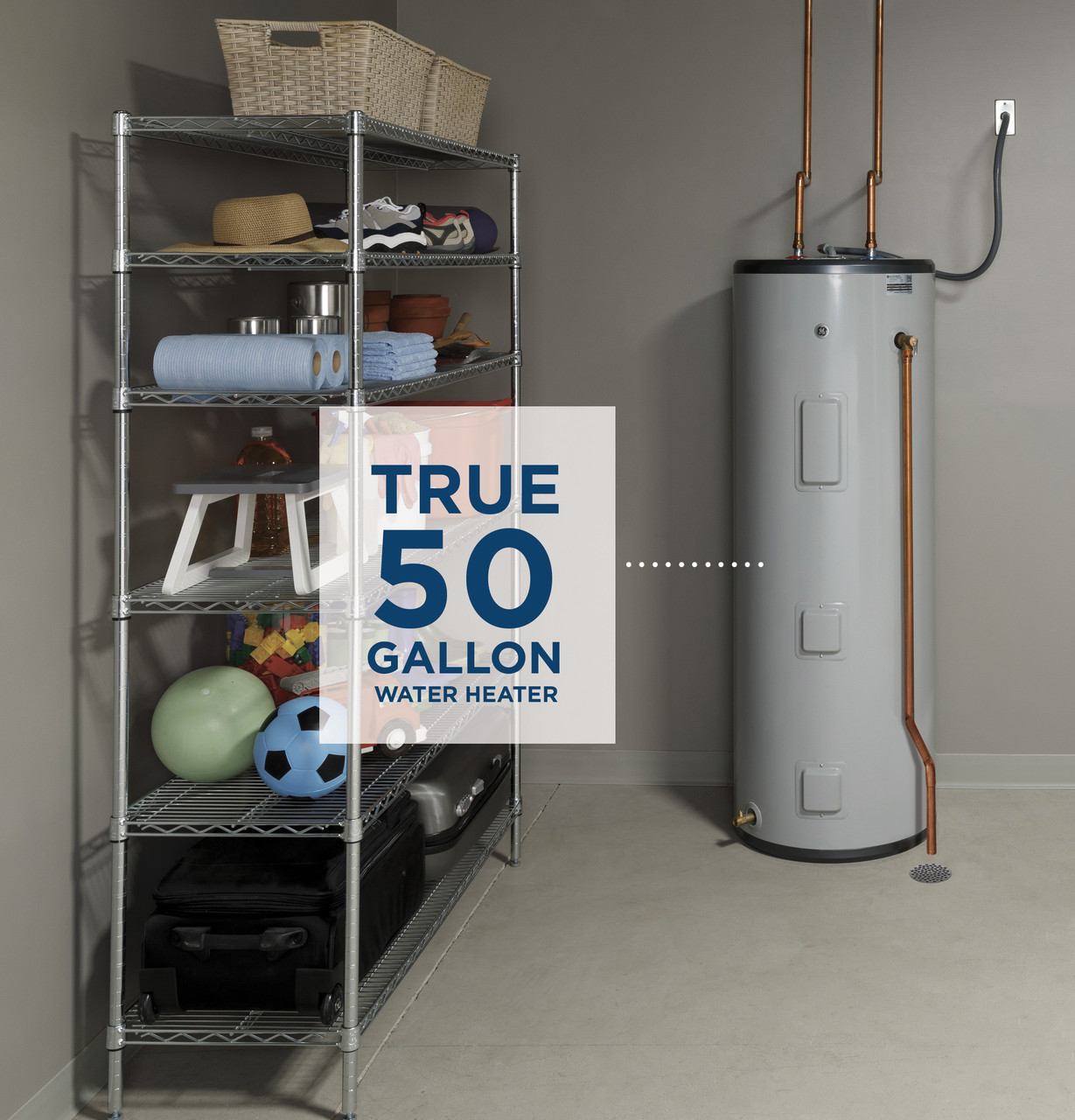

This tall electric water heater provides a true 50-gallon capacity, ensuring ample hot water for households of 3 to 5 people. Its dual 5500W stainless steel heating elements offer quick recovery and deliver an impressive 76 gallons of hot water in the first hour (FHR). The unit features ultra-durable components like corrosion-resistant heating elements and a rust-proof brass drain valve for longevity.Designed for easy replacement, it utilizes standard water and electrical connections. An inlet tube replenishes water from the bottom of the tank to maximize hot water delivery, while the adjustable thermostat allows users to set the water temperature between 90°F and 150°F to meet their specific needs.
General Electric Tall Electric Water Heater, 50 Gallons, 240 V, 5,500 W (Upper), 5,500 W (Lower), 0.93 UEF, 76 Gallons First Hour Delivery, 25.1 GPH (At 90°F Rise), 2 Elements, Low Density Stainless Steel Element Type, Stainless Steel, Adjustable Thermostat, 90-150 °F (Adjustable Setting), MNPT Connection Type, 3/4" MNPT (Water Inlet/Outlet), Floor Mount, 22" Diam x 63-3/4" H Dimensions, 20-125 PSI (Operating), Direct Wire, 30 A (MCA), Circuit Breaker, Lead-Free, Stainless Steel (Heating Elements), Brass (Drain Valve), Gray, 60 Hz
- Holds a true 50-gallon capacity, suitable for households of 3-5 people.
- Delivers a high 76-gallon First Hour Rating (FHR) using dual 5500W stainless steel heating elements.
- Features durable components including corrosion-resistant elements and a rust-proof brass drain valve.

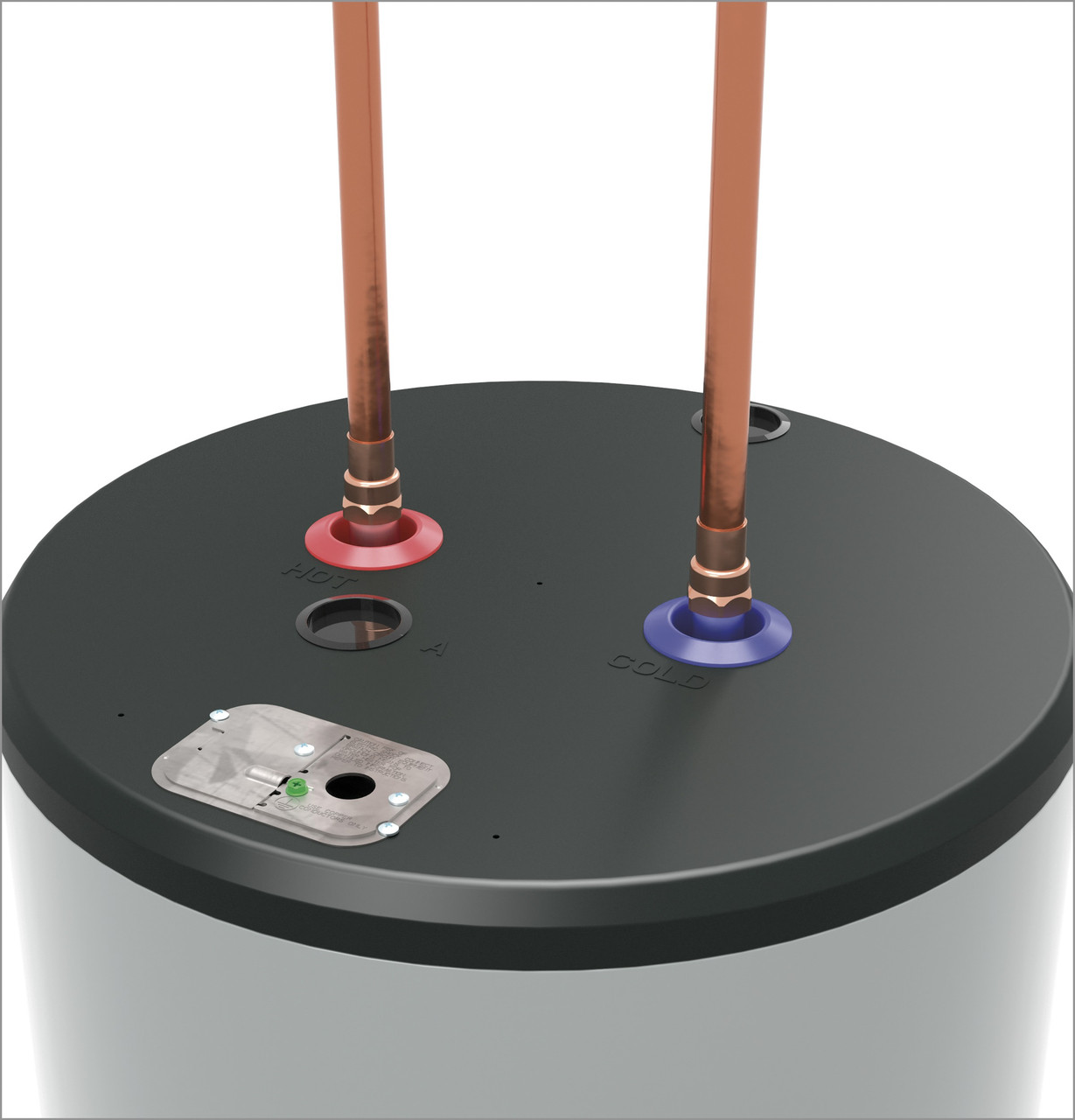

- Installs easily with standard 3/4" MNPT top water connections and direct-wire electrical setup.
- Allows temperature adjustment between 90°F and 150°F via the built-in thermostat.
- Comes with a 10-year limited parts warranty and 1-year limited labor warranty.
- UL Listed and certified lead-free (NSF/ANSI 372).
