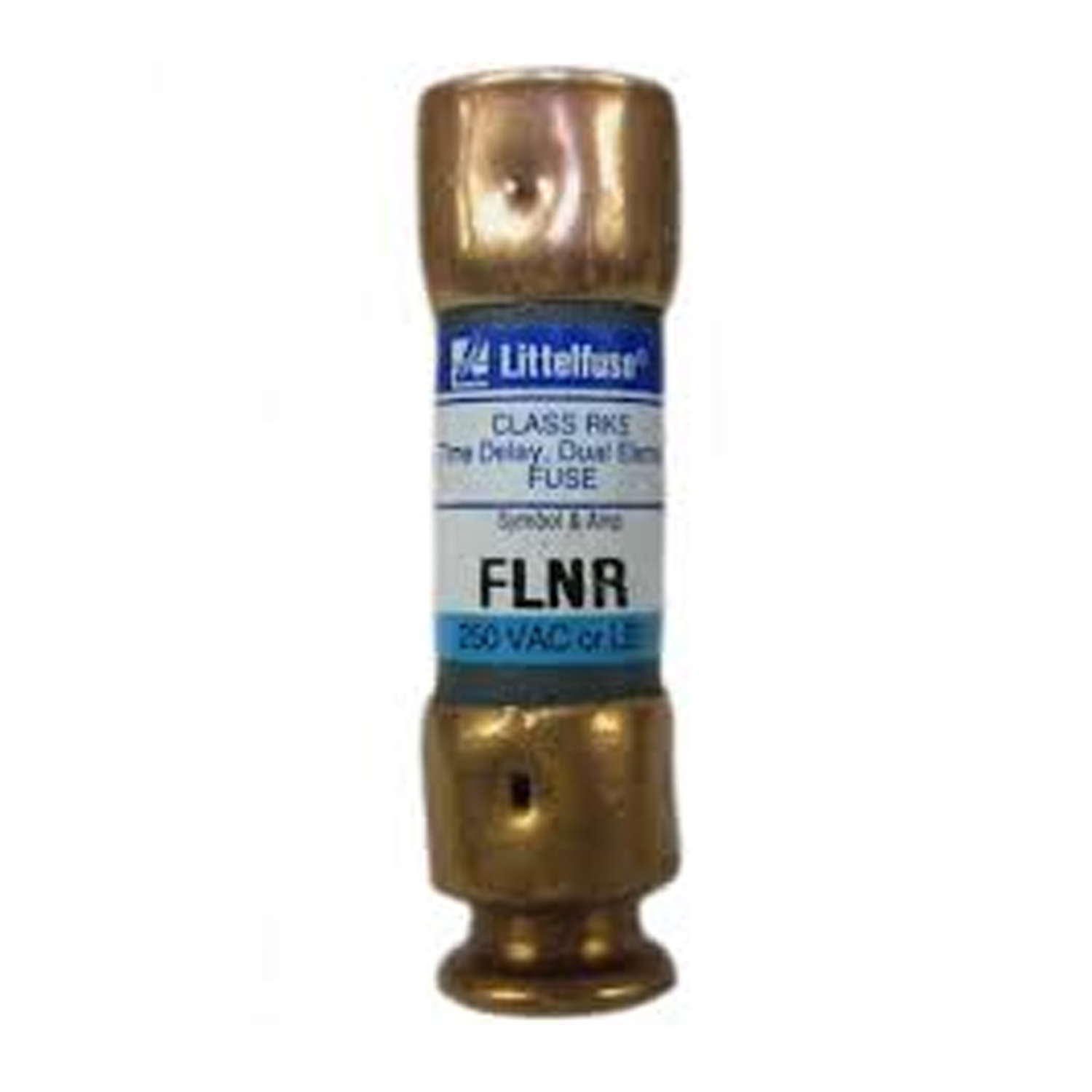

DiversiTech FLNR Series FLNR045T Class RK5 Fuse, 45 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR045T Class RK5 Fuse, 45 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
| Amperage Rating | : | 45 A |
| Body Type | : | Cylindrical, Cartridge |
| Class | : | RK5 |
| Diameter | : | 0.562 " |
| Element Type | : | Dual Element |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Indicating/Non-Indicating | : | Non-Indicating |
| Interrupt Rating | : | 200 kA (AC), 20 kA (DC) |
| Length | : | 2 " |
| Mounting Type | : | Fuse Block, Clip Mount, Holder Mount |
| Rejection/Non-Rejection | : | Rejection |
| Response Time | : | Time-Delay |
| Series | : | FLNR Series |
| Short Circuit Rating | : | 200 kA (AC), 20 kA (DC) |
| Terminal Type | : | Ferrule |
| Voltage Rating | : | 250 VAC, 125 VDC |
This Class RK5 fuse is rated for 45 amps and 250 VAC. Its dual-element, time-delay design offers reliable protection against both overloads and short circuits in various electrical systems.The time-delay characteristic allows the fuse to handle temporary inrush currents common during motor start-ups or transformer energization without nuisance tripping. It is suitable for general-purpose applications, including motor circuits, feeders, branch circuits, and HVAC equipment.
DiversiTech Class RK5 Fuse, Model: FLNR Series, 45 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 0.562" Diameter, 2" Length, 50 Hz, 60 Hz
- Provides Class RK5 protection rated for 45A and 250 VAC.
- Features a dual-element, time-delay design to prevent nuisance tripping during motor start-ups or transformer inrush.
- Offers reliable protection against overloads and short circuits.
- High interrupt rating of 200 kA AC and 20 kA DC.
- Suitable for motor circuits, feeders, branch circuits, transformers, and general-purpose equipment.
- UL Listed and CSA Certified.
- Conveniently packaged in a pack of 10 fuses.
