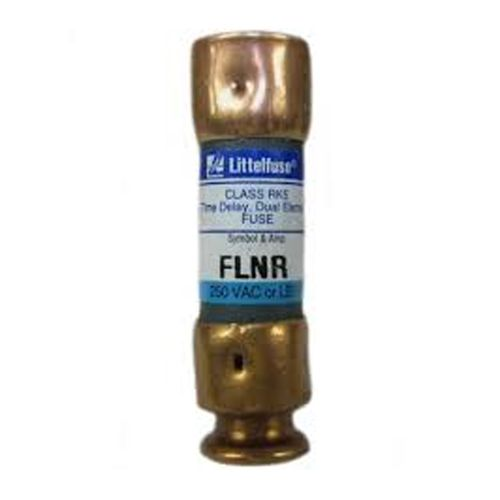

DiversiTech FLNR Series FLNR060T Class RK5 Fuse, 60 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount
DiversiTech FLNR Series FLNR060T Class RK5 Fuse, 60 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

DiversiTech FLNR Series FLNR060T Class RK5 Fuse, 60 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

DiversiTech FLNR Series FLNR060T Class RK5 Fuse, 60 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount

Manufacturer: DiversiTech Corporation
Brand: DiversiTech®
Part #: 387068
MPN: FLNR060T
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      60 A
Body Type      :      Cylindrical, Cartridge
Class      :      RK5
Diameter      :      13/16 "
Element Type      :      Dual Element
Frequency Rating      :      50 Hz, 60 Hz
Indicating/Non-Indicating      :      Non-Indicating
Interrupt Rating      :      200 kA (AC), 20 kA (DC)
Length      :      3 "
Mounting Type      :      Fuse Block, Clip Mount, Holder Mount
Rejection/Non-Rejection      :      Rejection
Response Time      :      Time-Delay
Series      :      FLNR Series
Short Circuit Rating      :      200 kA (AC), 20 kA (DC)
Terminal Type      :      Ferrule
Voltage Rating      :      250 VAC, 125 VDC

The Littelfuse FLNR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection.

DiversiTech Class RK5 Fuse, Model: FLNR Series, 60 A, 250 VAC, 125 VDC, 200 kA (AC), 20 kA (DC) Interrupt Rating, Time-Delay, Rejection, Dual Element, Fuse Block, Clip Mount, Holder Mount, Ferrule Terminal Type, Non-Indicating, Cylindrical, Cartridge Body Type, RK5, 13/16" Diameter, 3" Length, 50 Hz, 60 Hz

  • Features a dual-element, time-delay design suitable for motor circuits and transformers.
  • Provides advanced short-circuit and overload protection for general-purpose circuits.
  • Current-limiting feature helps protect downstream equipment from damage.
  • High interrupt rating of 200 kA AC and 20 kA DC ensures safety during fault conditions.
  • UL Listed and CSA Certified.
  • Designed for use in mains, feeders, branch circuits, and service entrance equipment.
  • Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/hvac-r-product-catalog-3611-3550.pdf
  • Data Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/powr-gard-fuse-datasheet-3611-4773.pdf
