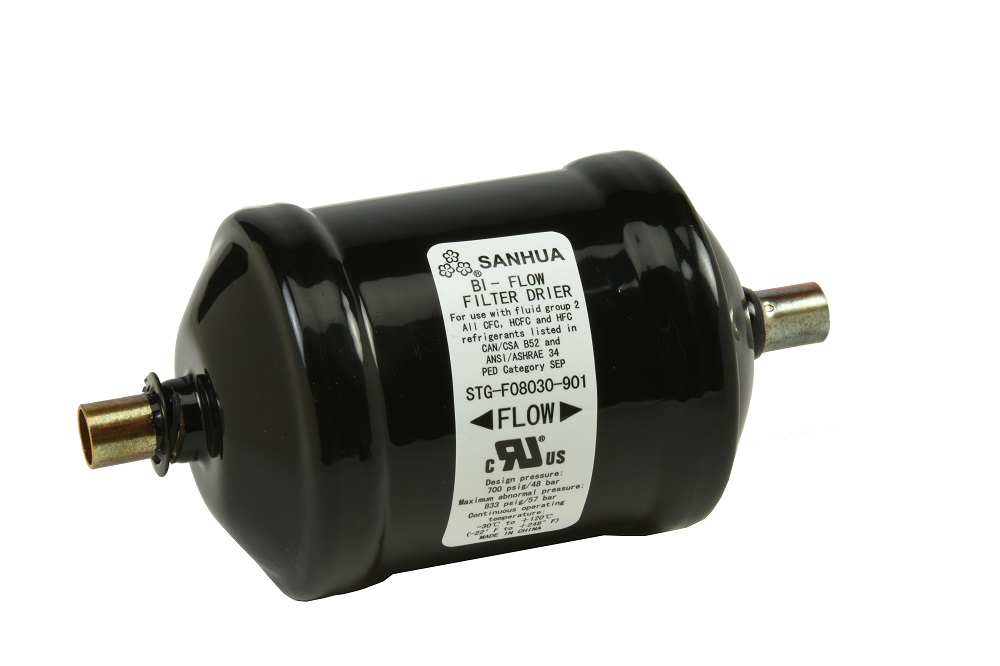

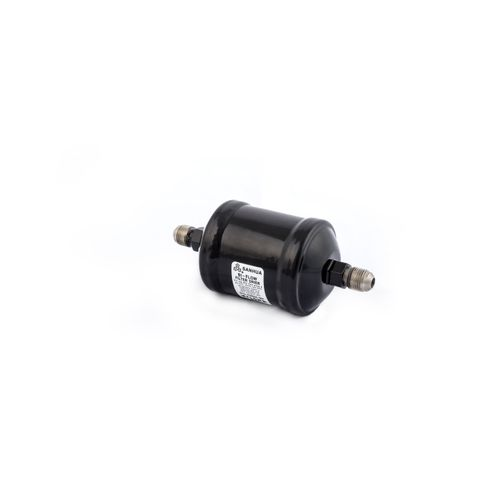

Sanhua STG Series FDBI-083-S Bi-Flow Filter Drier, 3/8" Size, 5 Tons (R-22), 4.89 Tons (R-134a), 3.41 Tons (R-404A / R-507), 4.89 Tons (R-407C), 5 Tons (R-410A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 700 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend)
Sanhua STG Series FDBI-083-S Bi-Flow Filter Drier, 3/8" Size, 5 Tons (R-22), 4.89 Tons (R-134a), 3.41 Tons (R-404A / R-507), 4.89 Tons (R-407C), 5 Tons (R-410A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 700 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend)
| Connection Type | : | 3/8" ODF |
| Domestic/Import | : | Import |
| Finish | : | Corrosion Resistant Paint |
| Flow Capacity | : | 5 tons (R-22), 4.89 tons (R-134a), 3.41 tons (R-404A / R-507), 4.89 tons (R-407C), 5 tons (R-410A) |
| Material | : | 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend) |
| Micron Rating | : | 20 microns |
| Model | : | FDBI-083-S |
| Mounting Type | : | In-Line |
| Pressure Rating | : | 700 PSI |
| Refrigerant Type | : | R-22, R-134A, R-404A, R-407C, R-410A, R-507 |
| Series | : | STG Series |
| Size | : | 3/8 " |
| Suitable For Use With | : | Heat Pump Systems |
| Temperature Rating | : | -22-248 °F (Medium), -22-131 °F (Ambient) |
| Unit Size | : | 5 tons (R-22), 4.89 tons (R-134a), 3.41 tons (R-404A/R-507), 4.89 tons (R-407C), 5 tons (R-410A) |
| Volume | : | 8 cu. in. |
The Sanhua STG Series bidirectional filter-driers are specifically designed for heat pump systems and other refrigeration applications with two-way flow. They serve as essential system protectors, effectively filtering solid particles while absorbing moisture and acid to ensure optimum performance and efficiency.
Sanhua Bi-Flow Filter Drier, Model: STG Series, 3/8" Size, 5 Tons (R-22), 4.89 Tons (R-134a), 3.41 Tons (R-404A / R-507), 4.89 Tons (R-407C), 5 Tons (R-410A) Flow Capacity, 3/8" ODF Connection Type, R-22, R-134A, R-404A, R-407C, R-410A, R-507, 20 Microns Micron Rating, 700 PSI, 80% Molecular Sieve / 20% Active Alumina (Desiccant Blend), 8 Cu. In., -22-248 °F (Medium), -22-131 °F (Ambient), In-Line Mounting Type, Corrosion Resistant Paint, Import
- Designed for bi-directional flow, making it ideal for heat pump applications.
- Effectively filters contaminants down to 20 microns while absorbing moisture and removing acid.
- Features a molded porous core desiccant for optimal system protection.
- Compatible with a wide range of common refrigerants including R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
- Rated for a maximum operating pressure of 700 psig.
- Corrosion-resistant finish ensures durability in various environments.
- UL and CSA listed for safety and reliability.
