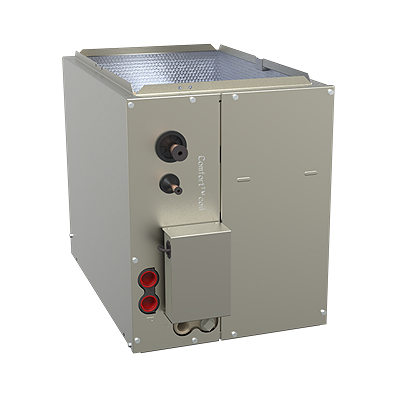

TRANE® 5PXCC007AS3HAA 3.0-5.0 Ton Cased Downflow/Upflow Evaporator Coil, 21.0 in W, TXV, R-454B
TRANE® 5PXCC007AS3HAA 3.0-5.0 Ton Cased Downflow/Upflow Evaporator Coil, 21.0 in W, TXV, R-454B
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390468
MPN: 5PXCC007AS3HAA
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Air Flow Direction | : | Downflow~Upflow |
| BTU Rating | : | 36,000 Btu/hr~42,000 Btu/hr~48,000 Btu/hr~54,000 Btu/hr~60,000 Btu/hr |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum |
| Depth | : | 21.5 in |
| Height | : | 26.88 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | 5PXC |
| Number of Rows | : | 3 |
| Packaged Depth | : | 27.66 in |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.0 Ton~3.5 Ton~4.0 Ton~4.5 Ton~5.0 Ton |
| Width | : | 21.0 in |
The TRANE® 5PXCC007AS3HAA is a 3.0 to 5.0 Ton cased downflow/upflow evaporator coil. It is rated for 36,000 to 60,000 Btu/hr of capacity. Features include TXV metering. The unit uses R-454B refrigerant. Refrigerant connections are 3/8 in liquid and 7/8 in suction. Dimensions: 26.88 in H x 21.0 in W x 21.5 in D.
