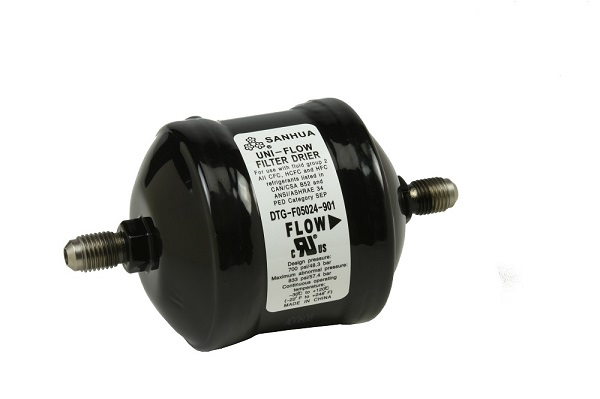

Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI
Sanhua DTG Series FD-083-S Filter Drier, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI
| Connection Type | : | ODF |
| Dimensions | : | 5-7/20" L |
| Domestic/Import | : | Import |
| Finish | : | Painted |
| Flow Capacity | : | 3.8 tons (R-22), 6.4 tons (R-290), 5.5 tons (R-507), 4.9 tons (R-134a), 4.9 tons (R-404A), 5.2 tons (R-407C), 4.8 tons (R-410A) |
| Material | : | Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend) |
| Micron Rating | : | 20 microns |
| Model | : | FD-083-S |
| Pressure Rating | : | 714.7 PSI |
| Refrigerant Type | : | R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507 |
| Series | : | DTG Series |
| Size | : | 3/8 " |
| Suitable For Use With | : | All Common HCFC and HFC Refrigerants |
| Temperature Rating | : | -22-131 °F (Ambient), -22-248 °F (Medium Ts) |
| Volume | : | 8 cu. in. |
Sanhua sealed model filter-driers are used in refrigeration system with unidirectional flow to absorb moisture and acid in the system and to filter out the impurities.This filter-drier features a molded core engineered with a blend of 80% molecular sieve and 20% activated alumina desiccants. The core is secured by fiberglass pads and a 100-mesh outlet screen, providing effective filtration down to 20 microns. It is designed for compatibility with common HCFC and HFC refrigerants and rated for a maximum operating pressure of 700 psig.
Sanhua Filter Drier, Model: DTG Series, ODF Connection, 3/8" Connection Size, 8 Cu. In., 3.8 Tons (R-22), 6.4 Tons (R-290), 5.5 Tons (R-507), 4.9 Tons (R-134a), 4.9 Tons (R-404A), 5.2 Tons (R-407C), 4.8 Tons (R-410A), 20 Microns Micron Rating, R-22, R-134A, R-290, R-404A, R-407C, R-410A, R-507, 714.7 PSI, -22-131 °F (Ambient), -22-248 °F (Medium Ts), Steel (Casing), Molecular Sieve/Active Alumina (Desiccant Blend), 5-7/20" L Dimensions, Painted, Import
- Effectively removes moisture, acid, and solid impurities from refrigeration systems.
- Features a molded core with an 80% molecular sieve and 20% activated alumina blend for optimal desiccant performance.
- Provides high-efficiency solid particle filtration down to 20 microns.
- Compatible With: Common HCFC and HFC refrigerants including R-22, R-134a, R-404A, R-407C, R-410A, and R-507.
- Rated for a maximum operating pressure of 700 psig.
- UL and CSA certified for reliable performance.
