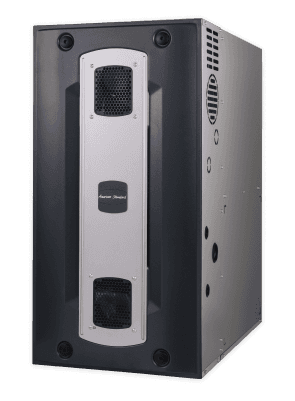

American Standard S Series S8V2C100M5PCAA 5T 80 AFUE Non-Condensing Two Stage Gas Furnace
American Standard S Series S8V2C100M5PCAA 5T 80 AFUE Non-Condensing Two Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 391069
MPN: S8V2C100M5PCAA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 80 % |
| Additional Information | : | Durable Aluminized Steel Heat Exchanger, Multi-Port Inshot Burner |
| Configuration | : | Multi - Position |
| Energy Star Compliant | : | No |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 100,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | S8V2 |
| Model | : | S8V2 |
| Motor Type | : | PSC |
| Number of Stages | : | Two |
| Phase | : | 1 ph |
| Series | : | S Series |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 21.0 in |
American Standard S Series- S8V2C100M5PCAA, 5T, 80% AFUE, 100,000 BTU, 120V, PSC Variable Speed Fan Motor, Multi-Position, Non-Condensing Two Stage Gas Furnace
- The Integrated System Control is a solid state device which continuously monitors for presence of flame when the system is in the heating mode of operation
- Durable, cycle tested, heavy gauge tubular aluminized steel heat exchanger quickly transfers heat to provide warm conditioned air to the structure. Low energy power vent blower, to increase efficiency and provide a discharge of gas fumes to the outside
- Multiport, Inshot burners will give years of quiet and efficient service. All models can be converted to L.P. gas with LP conversion kit
- Variable Speed PSC Fan Motor
- Heavy gauge steel and "wrap-around" cabinet construction
