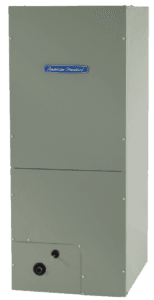

American Standard 5TEM4D05AC41SA,Silver TEM4, 3.0-4.0T, Single Stage Air Handler
American Standard 5TEM4D05AC41SA,Silver TEM4, 3.0-4.0T, Single Stage Air Handler
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385325
MPN: 5TEM4D05AC41SA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Range | : | 36,000 to 48,000 |
| BTU Rating | : | 48,000 Btu/hr |
| Blower (Dia x W) (In) | : | 11 x 8 |
| Blower Configuration | : | Draw-through |
| Blower FLA | : | 3.9 |
| Blower Fan Power | : | 208/230 V/1 Phase/60 Hz |
| Blower Fan RPM | : | 1050 |
| Blower Motor Type | : | Constant Torque, Direct Drive |
| Blower type | : | Constant Torque ECM |
| CFM Rating | : | 1,600 cfm |
| Coil Type | : | All-Aluminum Plate Fin |
| Configuration | : | Multi-Position |
| Crated Dimensions (H X W X D) | : | 52-3/4 x 27-1/2 x 25-1/2 in |
| Drain Connection Size (In) | : | 3/4 in NPT |
| Duct Return Size (in) | : | 18.75 x 21.75 |
| Duct Supply Size (in) | : | 12.15 x 21.5 |
| Family Description | : | R-454B Convertible Air Handler |
| Fan Type | : | Centrifugal |
| Filter Furnished | : | No |
| Footprint Width | : | 21.08 in |
| Frequency Rating | : | 60 Hz |
| Line Size - Liquid (in) | : | 3/8 |
| Line Size - Suction (In) | : | 7/8 |
| Max Breaker Size, With Electric Heater (Amps) | : | 60 |
| Max Breaker Size, Without Electric Heater (Amps) | : | 15 |
| Model | : | 5TEM4 |
| Motor Type | : | ECM |
| Nominal CFM | : | 1400 |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Power Supply | : | 208/230 V/1 Phase/60 Hz |
| Refrigerant Control | : | TXV |
| Refrigerant Type | : | R-454B |
| Series | : | Choice |
| System Control Type | : | 24 V |
| Tonnage | : | 4.0 Ton |
| Uncrated Dimensions (HxWxD) | : | 51-3/8 x 23-1/2 x 21-1/8 in |
| Voltage Rating | : | 208/230 V |
American Standard 5TEM4D05AC41SA,Silver TEM4, 3.0-4.0T, 48,000 BTU, 208/230V, R454B, ECM Motor, TXV Metering, Multi Position, Single Stage Air Handler
- Low Global Warming Potential (GWP) outdoor units that utilize R-454B refrigerant
- New TXVs designed for compatibility with R-454B refrigerant
- A new Refrigerant Detection System (RDS), including a Mitigation Control Board (MCB) and refrigerant leak sensor
- Multi-Position UP/Down Flow, Horizontal Left /Right
- Painted metal cabinet with captured foil face insulation
- ALL Aluminum Coil
- Electric Heaters with polarized plug connections (sold as accessory)
- Horizontal Drain pan
