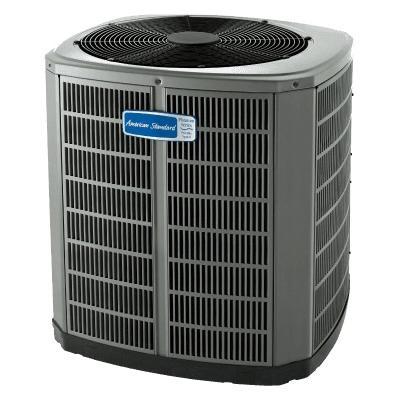

American Standard 5A6H4042A1000A,Silver 14 Heat Pump, 3.5T, 14 SEER2, Single Stage Heat Pump
American Standard 5A6H4042A1000A,Silver 14 Heat Pump, 3.5T, 14 SEER2, Single Stage Heat Pump
Manufacturer: Trane International Inc
Brand: American Standard®
Part #: 385257
MPN: 5A6H4042A1000A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | ECM Blower Motor |
| Amperage Rating | : | 24 A |
| BTU Cooling Rating | : | 42,000 Btu/hr |
| CFM Rating | : | 4992 cfm |
| Coil Rating | : | 30.8 sq-ft Face Area |
| Compressor Stages | : | Single Stage |
| Compressor Type | : | Scroll |
| Dimensions | : | 45 in H x 34 in W x 37 in D |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HP Rating | : | 1.33 hp |
| HSPF2 Range | : | 7.5 |
| Liquid Line (OD) | : | 5/16 in |
| Max Fuse | : | 40 A |
| Model | : | 5A6H |
| Number of Stages | : | Single |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 850 rpm |
| SEER Rating | : | 14 |
| SEER2 Range | : | 7.5 |
| Series | : | Silver 14 Heat Pump |
| Sound Level | : | 72 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.5 Ton |
| Volts | : | 208/230 V |
American Standard 5A6H4042A1000A,Silver 14 Heat Pump, 3.5T, 14 SEER2, 42,000 BTU, 208/230V, R454B, 7.5 HSPF, Single Stage Heat Pump
- 14 Single-Stage Heat Pump outdoor products using R-454B refrigerant!
- New TXV and refrigeration designs that are optimized for maximum performance using the new refrigerant
- Compatibility with existing accessories and kits
- Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.
- The compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise
- The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.
- Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
