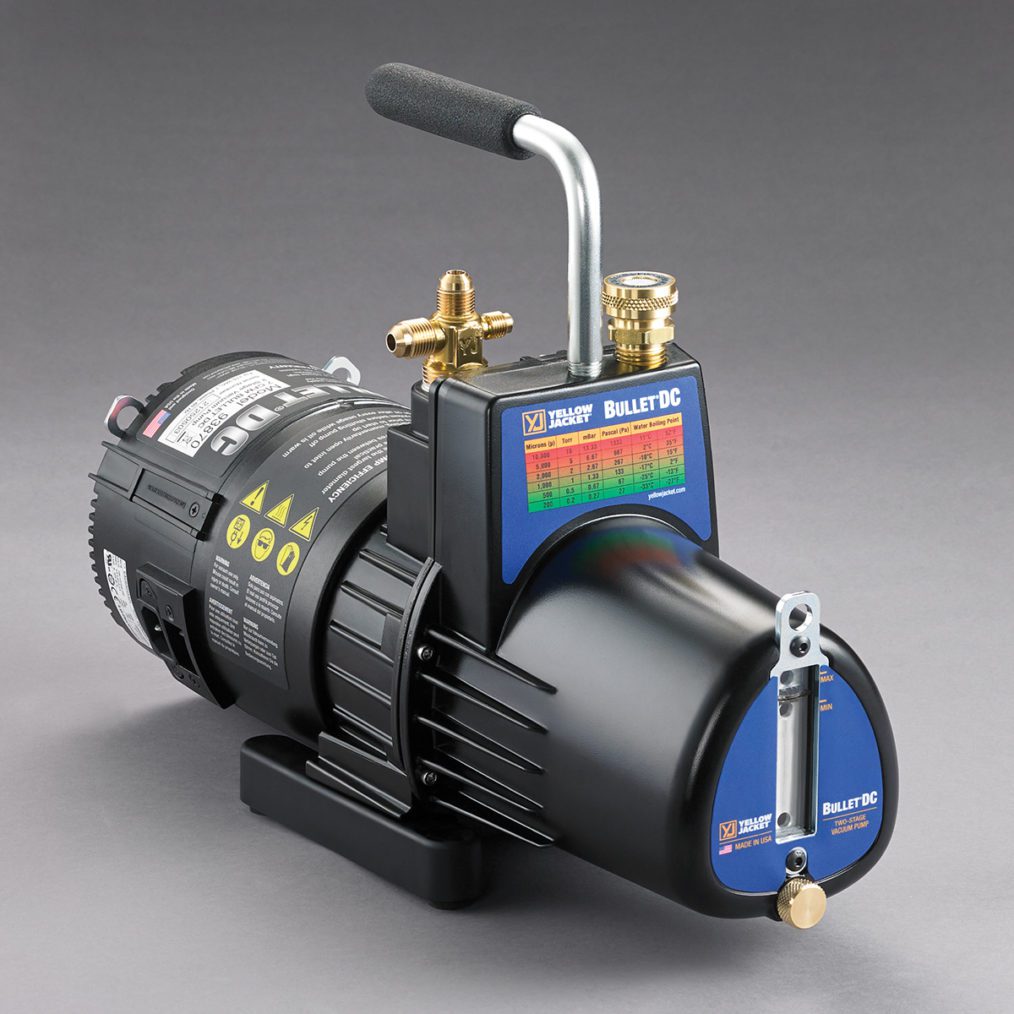

Yellow Jacket BULLET DC 93870 Vacuum Pump, 7.0 CFM, 25 Microns Maximum Vacuum, 1/2 HP, 100-127 V / 220-240 V (Single Phase, Factory Set At 115 V), BLDC, 1/4" x 3/8" x 1/2" Male Flare Connection Size, 5-15P Plug Type
Preseason
Yellow Jacket BULLET DC 93870 Vacuum Pump, 7.0 CFM, 25 Microns Maximum Vacuum, 1/2 HP, 100-127 V / 220-240 V (Single Phase, Factory Set At 115 V), BLDC, 1/4" x 3/8" x 1/2" Male Flare Connection Size, 5-15P Plug Type

Yellow Jacket BULLET DC 93870 Vacuum Pump, 7.0 CFM, 25 Microns Maximum Vacuum, 1/2 HP, 100-127 V / 220-240 V (Single Phase, Factory Set At 115 V), BLDC, 1/4" x 3/8" x 1/2" Male Flare Connection Size, 5-15P Plug Type

Yellow Jacket BULLET DC 93870 Vacuum Pump, 7.0 CFM, 25 Microns Maximum Vacuum, 1/2 HP, 100-127 V / 220-240 V (Single Phase, Factory Set At 115 V), BLDC, 1/4" x 3/8" x 1/2" Male Flare Connection Size, 5-15P Plug Type

Manufacturer: Ritchie Engineering Company, Inc
Brand: Yellow Jacket®
Part #: 384568
MPN: 93870
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Additional Information      :      7 cfm Free Air Displacement, 2-Stage Rotary Vane, 25 um Field Blank-Off, Thermal Overload Protection, 1/4 x 3/8 x 1/2 in Intake
Connection Size      :      1/4" x 3/8" x 1/2" Male Flare
Cord Length      :      9.83 '
Flow Rate      :      7.0 CFM
HP Rating      :      1/2 HP
Maximum Vacuum      :      25 microns
Motor Type      :      BLDC
Noise Level      :      70 dBA
Oil Capacity      :      28 oz
Overall Depth      :      12 in
Overall Length      :      17-1/2 "
Overall Width      :      6 "
Plug Type      :      5-15P
Product Type      :      REFRIGERATION TOOLS
Series      :      BULLET DC
Voltage Rating      :      100-127 V / 220-240 V (Single Phase, Factory Set At 115 V)

The Brushless DC (BLDC) Motor incorporated in the next generation BULLET®DC Vacuum Pump provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance in the most reliable vacuum pump. Able to function in extreme low voltage conditions and field rated to 25 microns, the BULLET®DC is the perfect combination of quality and value. The easy to carry, lightweight design is available in 7 cfm to handle most residential and commercial applications. Pulling down to less than 25 microns, BULLET®DC protects the system from contaminants and non-condensable gases, which can damage components, reduce efficiency and cause system failure.

Yellow Jacket Vacuum Pump, Model: BULLET DC, 7.0 CFM, 25 Microns Maximum Vacuum, 1/2 HP, 100-127 V / 220-240 V (Single Phase, Factory Set At 115 V), BLDC, 1/4" x 3/8" x 1/2" Male Flare Connection Size, 5-15P Plug Type, 28 Oz Oil Capacity, 9.83' Cord Length, 6" Overall Width, 17-1/2" Overall Length

  • Features a high-torque, high-efficiency 1/2 HP Brushless DC (BLDC) motor for reliable performance, even in low voltage conditions.
  • Designed for A2L refrigerant system compatibility with a non-sparking switch.
  • Pulls down to a field-rated 25 microns with a free air displacement of 7 CFM.
  • Includes an internal check valve to prevent oil backup and an intake screen to block damaging particles.
  • Features an elongated sight glass and large brass drain port for easier oil monitoring and changes.
  • IPX4 rated for resistance to water splashes from any direction.
  • Backed by a two-year warranty and made in the USA.
