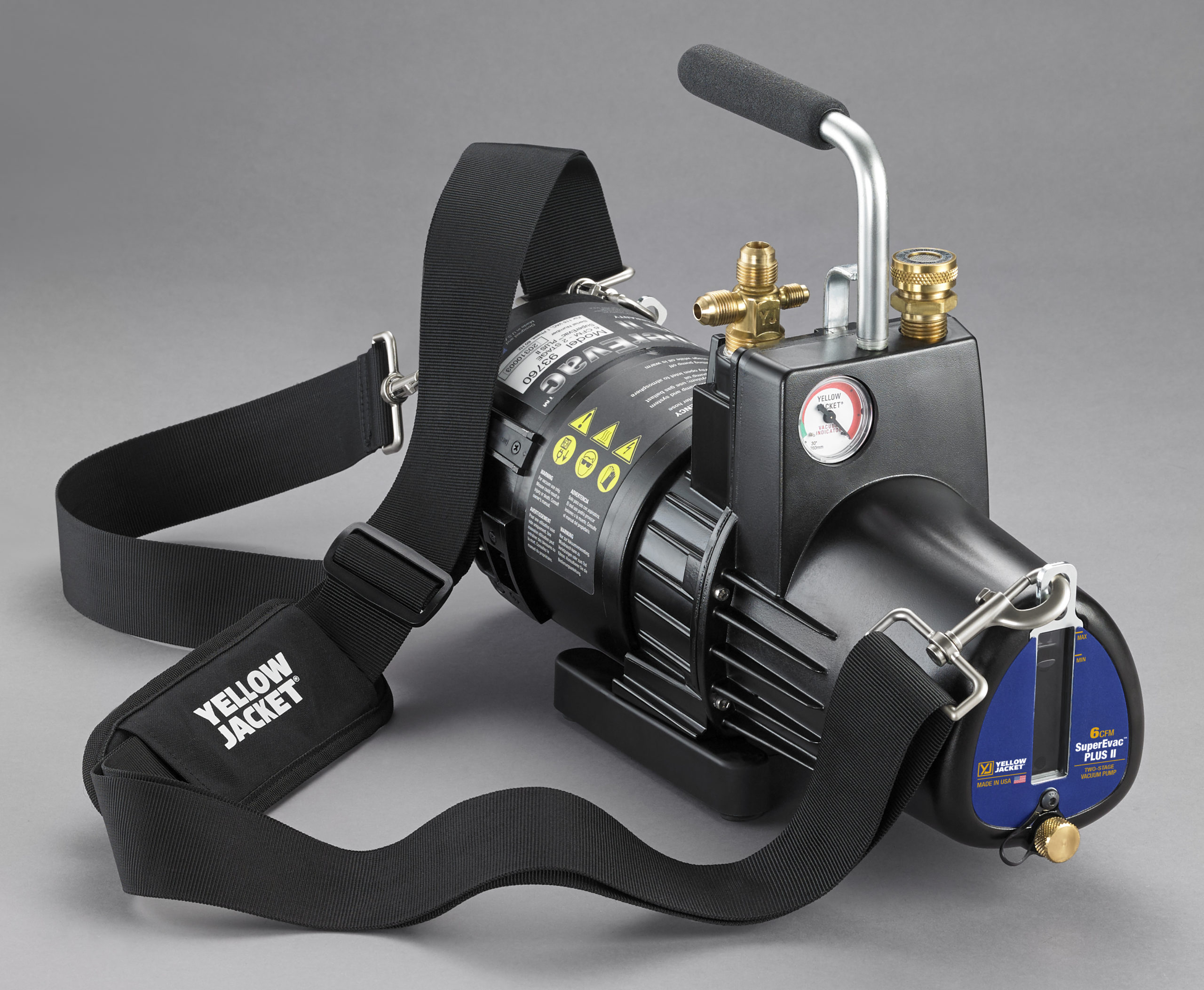

Yellow Jacket SuperEvac PLUS II 93760 Vacuum Pump, 6 CFM, 15 Microns Maximum Vacuum, 1/2 HP, 100-127 V/220-240 V, BLDC, 1/2" Male Flare, 3/8" Male Flare, 1/4" Male Flare Connection Size, 36 Oz Oil Capacity
Yellow Jacket SuperEvac PLUS II 93760 Vacuum Pump, 6 CFM, 15 Microns Maximum Vacuum, 1/2 HP, 100-127 V/220-240 V, BLDC, 1/2" Male Flare, 3/8" Male Flare, 1/4" Male Flare Connection Size, 36 Oz Oil Capacity
| Amperage Rating | : | 7.4 A |
| Connection Size | : | 1/2" Male Flare, 3/8" Male Flare, 1/4" Male Flare |
| Cord Length | : | 9.83 ' |
| Flow Rate | : | 6 CFM |
| HP Rating | : | 1/2 HP |
| Maximum Vacuum | : | 15 microns |
| Motor Type | : | BLDC |
| Oil Capacity | : | 36 oz |
| Overall Depth | : | 11-1/2 " |
| Overall Length | : | 16 " |
| Overall Width | : | 6 " |
| Series | : | SuperEvac PLUS II |
| Voltage Rating | : | 100-127 V/220-240 V |
The Brushless DC (BLDC) Motor incorporated in the next generation YELLOW JACKET® SuperEvac® PLUS II Vacuum Pump provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance in the most reliable vacuum pump. Able to function in extreme low voltage conditions and field rated to 15 microns, the SuperEvac® PLUS II is always ready. The easy-to-carry, lightweight design is available in 4, 6, 8 and 11 cfm models.OVER 20% LIGHTER THAN MOST AC MOTOR VACUUM PUMPS
Yellow Jacket Vacuum Pump, Model: SuperEvac PLUS II, 6 CFM, 15 Microns Maximum Vacuum, 1/2 HP, 100-127 V/220-240 V, BLDC, 1/2" Male Flare, 3/8" Male Flare, 1/4" Male Flare Connection Size, 36 Oz Oil Capacity, 9.83' Cord Length, 6" Overall Width, 16" Overall Length, 11-1/2" Overall Depth, 7.4 A
- High-torque, high-efficiency Brushless DC (BLDC) motor ensures reliable performance and long life.
- Designed for use with A2L refrigerant systems.
- Achieves a deep vacuum, field rated to 15 microns.
- Operates effectively even in extreme low voltage conditions.
- Isolation valve enables oil changes without losing system vacuum.
- Internal intake check valve prevents oil backup during power failure.
- Features a lightweight design, built-in vacuum gauge, and shoulder strap for convenience.
- Covered by a two-year warranty.
- Made in the USA.
