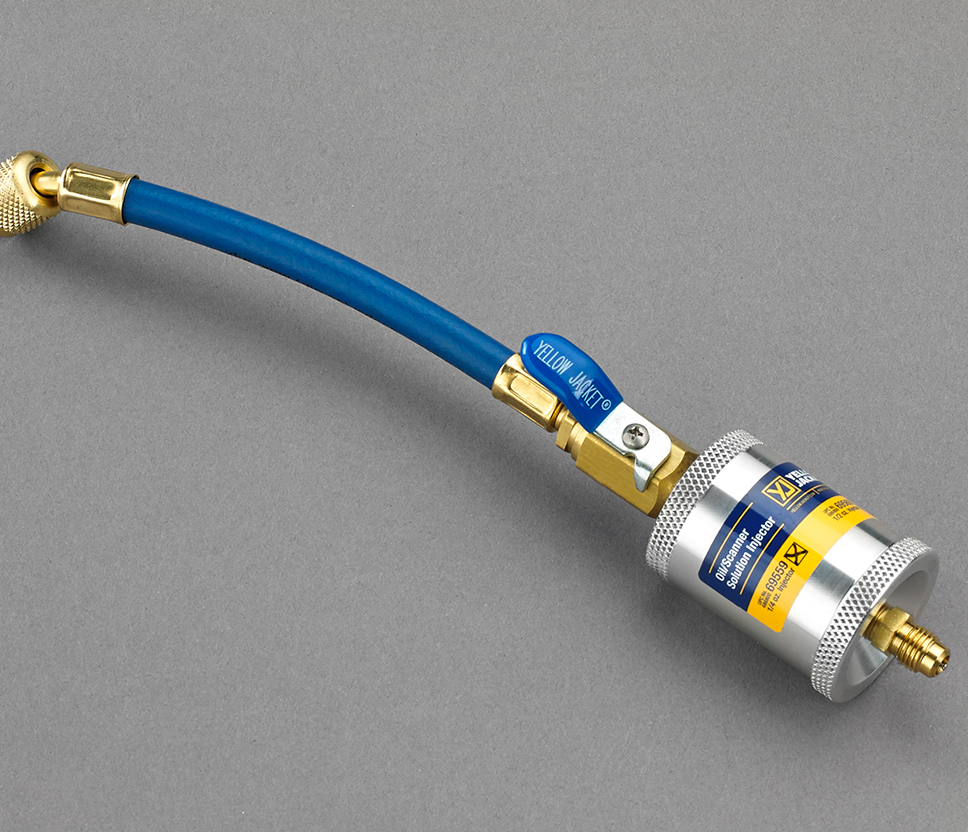

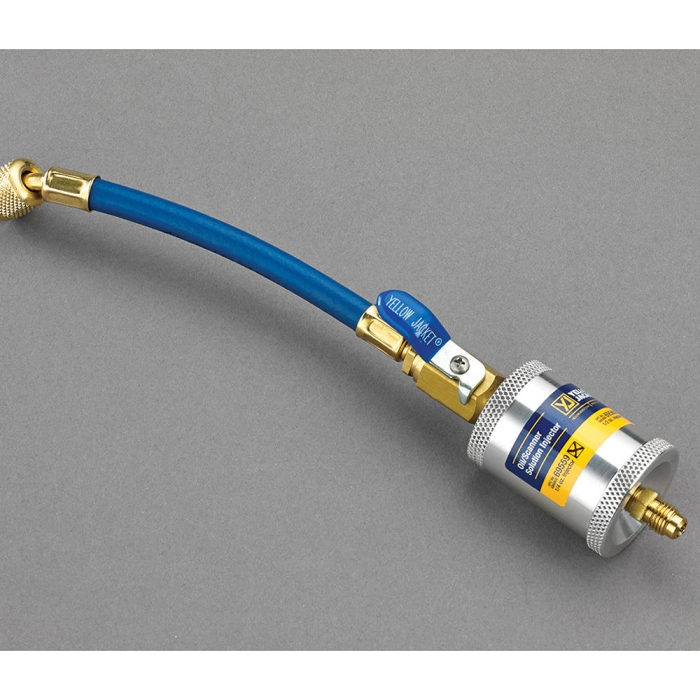

Yellow Jacket 69562 Oil Injector, 1/4" Male Flare/Schrader Valve (Hose End), 1/4" Female Flare/Valve Core Depressor/Ball Valve, R-410A, 1 Hoses, 600 PSI (Working Pressure), Aluminum (Body/Cap), Domestic

Body and cap are rugged aluminum with an “O†ring seal. 1/4″ Male fitting at one end with Schrader. A ball valve for control on other end with a short length of hose. Valve depressor in 1/4″ Female end. Recommended for R-410A.

Yellow Jacket Oil Injector, 1/4" Male Flare/Schrader Valve (Hose End), 1/4" Female Flare/Valve Core Depressor/Ball Valve, R-410A, 1 Hoses, 600 PSI (Working Pressure), Aluminum (Body/Cap), Domestic

• Features rugged aluminum body and cap with an O-ring seal for durability.
• Allows for adding oil, UV dye, or other additives to AC/R systems quickly and easily.
• Includes a 1/4" male flare fitting with Schrader valve and a short hose with a 1/4" female flare fitting, valve core depressor, and ball valve control.
• Rated for a maximum working pressure of 600 PSI.
• Recommended for use with R-410A refrigerant systems.
• Facilitates easy connection to standard 1/4" manifold gauge set hoses.
• Made in the USA.

• Other Drawings https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/dye-and-oil-injectors-69559-62-illustration-5196-7482.pdf
• Installation and Operation Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/procedure-for-injecting-mjx-oil-additive-12-5196-7483.pdf
