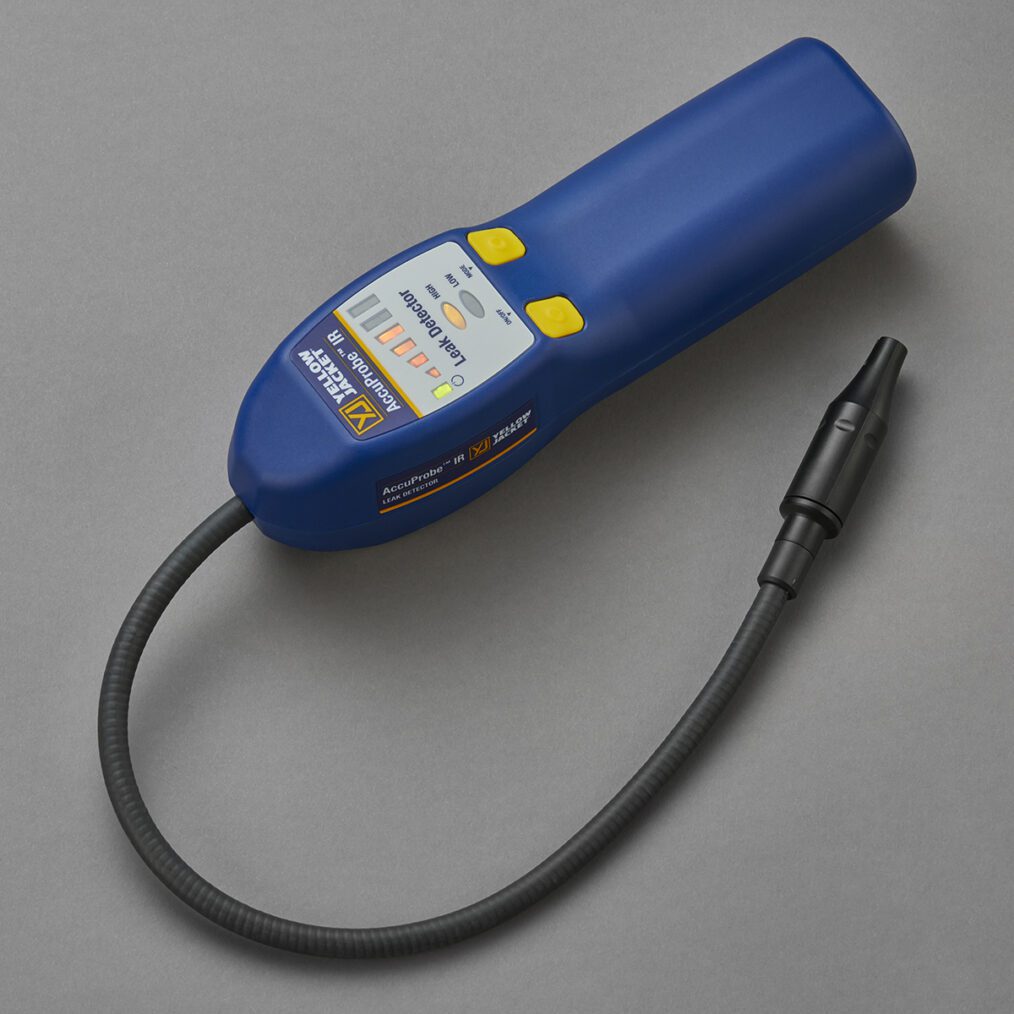

Yellow Jacket AccuProbe 69320 IR Refrigerant Leak Detector, 0.1 Oz/Yr Sensitivity, All Common Refrigerants (CFC, HCFC, HFC, HFO), Audible And Visual (Smartalarm LED) Leak Indicator, 0 Seconds (Instantaneous), 17" Probe Length, Rechargeable Li-Ion Battery, 8 Hrs

Yellow Jacket AccuProbe 69320 IR Refrigerant Leak Detector, 0.1 Oz/Yr Sensitivity, All Common Refrigerants (CFC, HCFC, HFC, HFO), Audible And Visual (Smartalarm LED) Leak Indicator, 0 Seconds (Instantaneous), 17" Probe Length, Rechargeable Li-Ion Battery, 8 Hrs

Manufacturer: Ritchie Engineering Company, Inc
Brand: Yellow Jacket®
Part #: 383935
MPN: 69320
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      1 A
Appearance      :      Handheld
Battery Life      :      8 hrs
Color      :      Blue, Black
Dimensions      :      8-1/4" (Body Length)
Form      :      Handheld
Humidity Rating      :      95 %
Leak Indicator      :      Audible and Visual (SmartAlarm LED)
Material      :      ABS (Body)
Model      :      69320
Power Source      :      Rechargeable Li-Ion Battery
Probe Length      :      17 "
Refrigerant Type      :      All Common Refrigerants (CFC, HCFC, HFC, HFO)
Response Time      :      0 seconds (Instantaneous)
Run Time      :      8 hrs
Sensitivity      :      0.1 oz/yr
Series      :      AccuProbe
Temperature Rating      :      -4-140 °F (Operating)
Voltage Rating      :      5 V
Warm-Up Time      :      45 to 90 s

Identifying the smallest leaks is fast and easy. The YELLOW JACKET® AccuProbeâ„¢ IR Leak Detector detects all CFC, HCFC, HFC and HFO refrigerants, including R-134A, R-404A, R-410A and R-1234YF. The SmartAlarm® LED shows the size of the leak on a rising scale. Coupled with two modes for sensitivity, the AccuProbeâ„¢ IR will locate a leak of any size.

Yellow Jacket IR Refrigerant Leak Detector, Model: AccuProbe, 0.1 Oz/Yr Sensitivity, All Common Refrigerants (CFC, HCFC, HFC, HFO), Audible And Visual (Smartalarm LED) Leak Indicator, 0 Seconds (Instantaneous), 17" Probe Length, Rechargeable Li-Ion Battery, 8 Hrs, Handheld, 8-1/4" (Body Length), ABS (Body), -4-140 °F (Operating), Blue, Black

  • Infrared (IR) sensor provides ultimate sensitivity (0.1 oz/yr) and long-term accuracy without degradation.
  • Detects all CFC, HCFC, HFC, and HFO refrigerants, including R-134a, R-404A, R-410A, R-1234yf, and other A2L refrigerants.
  • Features High and Low sensitivity modes, plus manual zero capability, to pinpoint leaks of any size.
  • SmartAlarm® LED provides visual leak size indication alongside audible alerts.
  • Rechargeable Li-Ion battery offers 8 hours of continuous operation and convenient USB charging.
  • Comes complete with a durable carrying case and one spare sensor filter.
  • Backed by a two-year over-the-counter warranty and manufactured in the USA.
  • Specification Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/10177-accuprobe-ir-uv-spec-sheet-2023-10-3223-7709.pdf
  • Installation and Operation Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/accuprobe-ir-operation-and-maintenance-manual-3223-7707.pdf
