Yellow Jacket SuperEvac 69075 LCD Vacuum Gauge, 760,000-1 Microns, 19.7 PSI (Maximum), 1/4" Male Flare Connection, ± 20% RDG (10-10,000 Microns), 1 Micron (Below 1,000 Microns) Resolution, All Common Refrigerants (CFC, HCFC, HFC, HFO), Handheld
Yellow Jacket SuperEvac 69075 LCD Vacuum Gauge, 760,000-1 Microns, 19.7 PSI (Maximum), 1/4" Male Flare Connection, ± 20% RDG (10-10,000 Microns), 1 Micron (Below 1,000 Microns) Resolution, All Common Refrigerants (CFC, HCFC, HFC, HFO), Handheld
| Accuracy | : | ± 20% RDG (10-10,000 microns) |
| Battery Life | : | 70 hrs (Continuous) |
| Battery Type | : | D Cell |
| Color | : | Blue, Black, Yellow |
| Connection Type | : | 1/4" Male Flare |
| Dimensions | : | 12-1/2" L x 2-2/5" H x 9" D |
| Display Type | : | LCD |
| Finish | : | Molded (Case), Nickel Plated (Sensor Housing) |
| Fitting Size | : | 1/4 " |
| Material | : | Plastic (Case), Steel (Sensor Housing), Rubber, Brass (Connection) |
| Measuring Range | : | 760,000-1 microns |
| Mounting Type | : | Handheld |
| Power Supply | : | Battery |
| Pressure Rating | : | 19.7 PSI (Maximum) |
| Refrigerant Type | : | All Common Refrigerants (CFC, HCFC, HFC, HFO) |
| Resolution | : | 1 micron (Below 1,000 Microns) |
| Series | : | SuperEvac |
| Temperature Rating | : | -30-125 °F |
Thermocouple technology has long been proven in laboratory and precision industrial instrumentation for sensing the deep vacuum range. Thermocouple sensors are factory calibrated and exhibit few of the electronic variances of thermistor sensors found in many other electronic gauges. Durable molded case with storage for sensor, cable and brass connector.Full range from atmosphere to 1 micron. The SuperEvac ® LCD vacuum gauge combines thermocouple sensor technology with advanced electronics for precise readings and repeatability not found with thermistor sensors or analog meters.
Yellow Jacket LCD Vacuum Gauge, Model: SuperEvac, 760,000-1 Microns, 19.7 PSI (Maximum), 1/4" Male Flare Connection, ± 20% RDG (10-10,000 Microns), 1 Micron (Below 1,000 Microns) Resolution, All Common Refrigerants (CFC, HCFC, HFC, HFO), Handheld, LCD, 70 Hrs (Continuous) Battery Life, D Cell Battery, Battery, Plastic (Case), Steel (Sensor Housing), Rubber, Brass (Connection), 12-1/2" L x 2-2/5" H x 9" D Dimensions, -30-125 °F, Blue, Black, Yellow, Molded (Case), Nickel Plated (Sensor Housing)
- Utilizes proven thermocouple sensor technology for precise readings from atmosphere to 1 micron.
- Requires no adjustments or warm-up, maintaining calibration through long evacuations.
- Features automatic compensation for ambient temperature and battery level changes.
- LCD display provides clear readings and is resistant to normal handling.
- Includes automatic shut-off after 20 minutes to extend D-cell battery life (up to 70 hours).

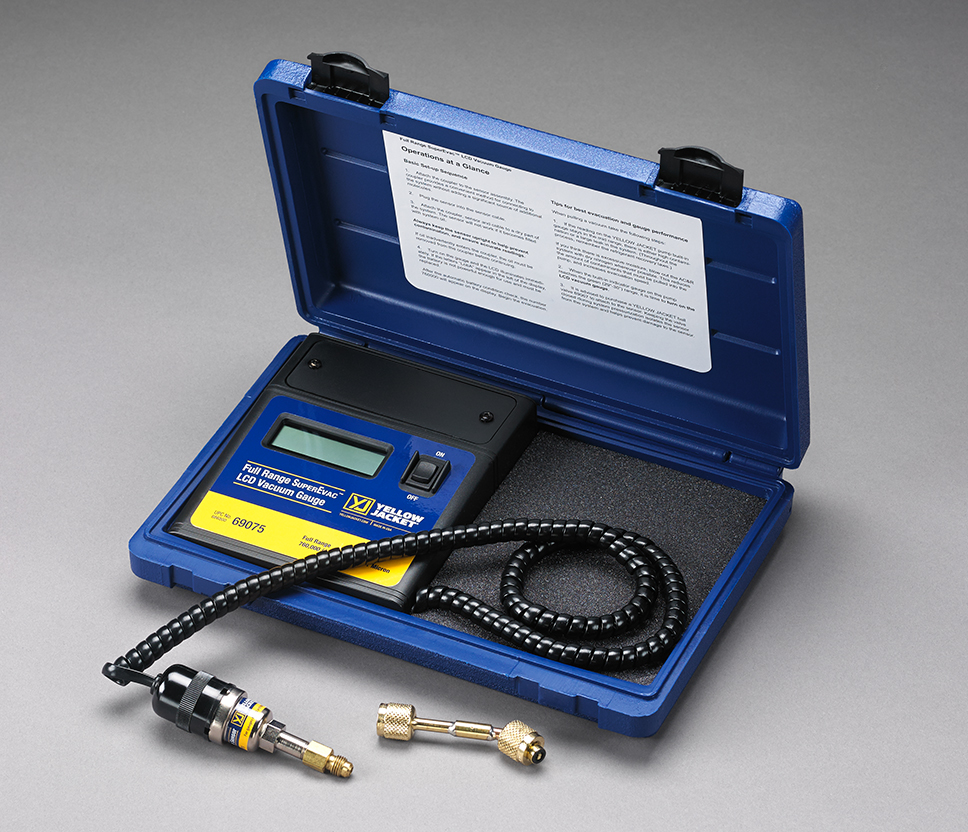

- Comes with a durable molded case for protection and storage of gauge, sensor, cable, and coupler.
- Calibration standards traceable to NIST; Made in the USA.
