Yellow Jacket YJACK 67068 Wireless Dual Port Manometer, +/- 80 In. Wc. Measuring Range, ± 0.03 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-80 In. W.c.) Accuracy, 0.01 In. Wc. Resolution, Barb (For 1/8" ID Tubing), 1/8" NPT Adapter, Slide Gas Adapter, Graphical, App-Based, Battery, ≤280 Hrs (With Power-Saving Mode) Battery Life
Yellow Jacket YJACK 67068 Wireless Dual Port Manometer, +/- 80 In. Wc. Measuring Range, ± 0.03 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-80 In. W.c.) Accuracy, 0.01 In. Wc. Resolution, Barb (For 1/8" ID Tubing), 1/8" NPT Adapter, Slide Gas Adapter, Graphical, App-Based, Battery, ≤280 Hrs (With Power-Saving Mode) Battery Life
| Accuracy | : | ± 0.03 in. w.c. (0-2 in. w.c.), ± 1.5% FS (2-80 in. w.c.) |
| Battery Life | : | 280 hrs (With Power-Saving Mode) |
| Battery Type | : | AAA |
| Color | : | Blue, Yellow |
| Connection Type | : | Barb (For 1/8" ID Tubing), 1/8" NPT Adapter, Slide Gas Adapter |
| Dimensions | : | 4-1/2" L x 1-1/2" H x 1-4/5" W |
| Display Type | : | Graphical, App-Based |
| Fitting Size | : | 1/8" (Barb For ID Tubing), 1/8" NPT (Adapter) |
| Fluid Type | : | Air, Non-combustible Gases |
| Material | : | Plastic, Steel |
| Measuring Range | : | +/- 80 in. wc. |
| Mounting Type | : | Handheld, Magnetic Mount |
| Power Source | : | Battery |
| Resolution | : | 0.01 in. wc. |
| Response Time | : | 1 second |
| Series | : | YJACK |
| Suitable For Use With | : | HVAC/R Diagnostic; Static Pressure Measurements (Filters, TESP); Duct Pressure; Gas Pressure Measurements (Regulators, Manifolds); Flue Draft; Air Balancing |
| Temperature Rating | : | 6-145 °F (Operating), -22-149 °F (Storage), 32-104 °F (Display) |

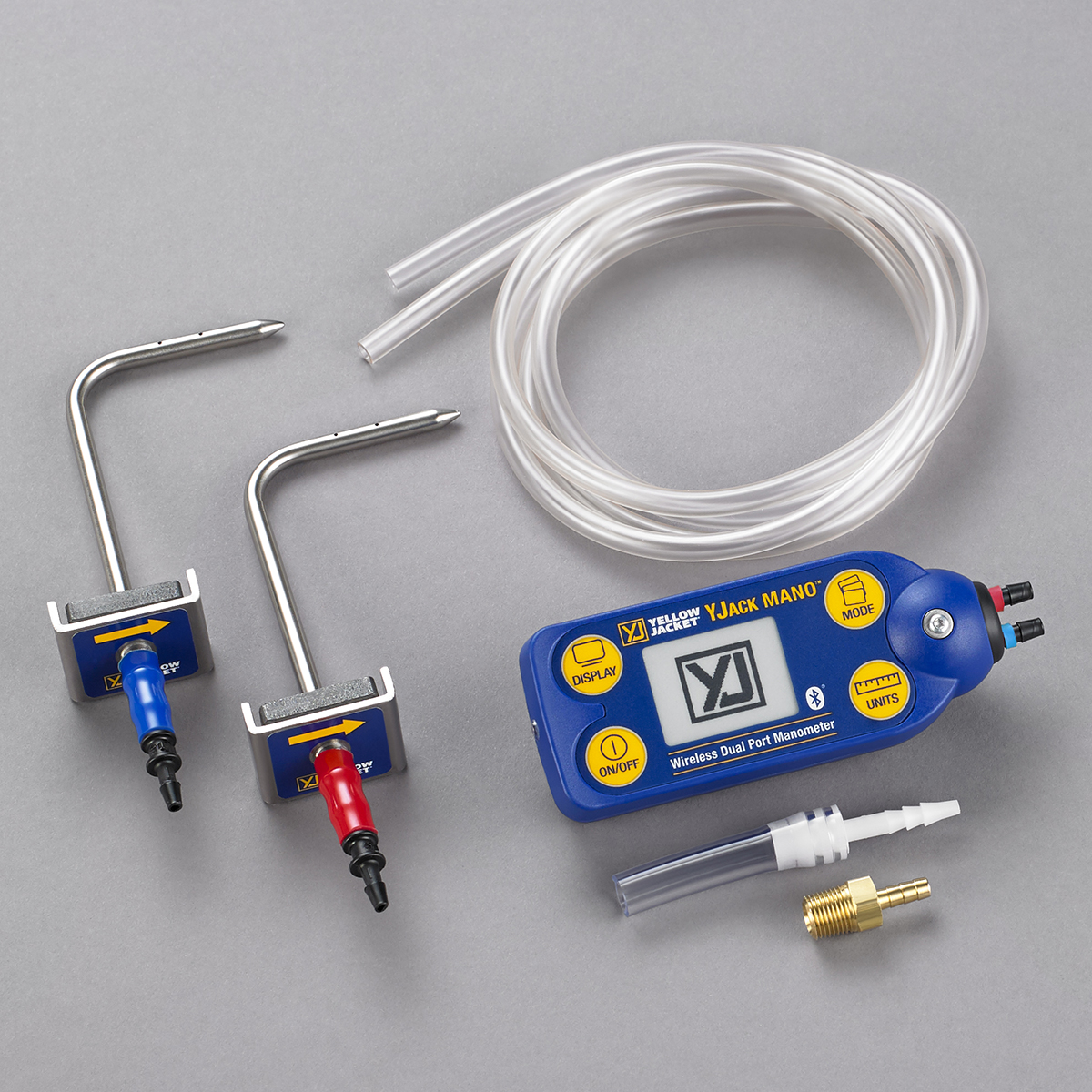

Take accurate static pressure measurements up to +/- 80 inches of water column with the YJACK MANO ® Wireless Dual Port Manometer 67068 by YELLOW JACKET ®. Measure pressure drop across a filter or Total External Static Pressure (TESP) with the included static pressure tips. Measure gas pressure at the regulator inlet and outlets with the 1/8†NPT fitting or slide gas adapter. Use the integrated display to view the system readings or view and analyze all the system measurements with the YJACK VIEW® app. Soft case included for convenient storage of manometer and adapters​.
Yellow Jacket Wireless Dual Port Manometer, Model: YJACK, +/- 80 In. Wc. Measuring Range, ± 0.03 In. W.c. (0-2 In. W.c.), ± 1.5% FS (2-80 In. W.c.) Accuracy, 0.01 In. Wc. Resolution, Barb (For 1/8" ID Tubing), 1/8" NPT Adapter, Slide Gas Adapter, Graphical, App-Based, Battery, ≤280 Hrs (With Power-Saving Mode) Battery Life, AAA Battery, Air, Non-Combustible Gases, 6-145 °F (Operating), -22-149 °F (Storage), 32-104 °F (Display), Handheld, Magnetic Mount, Plastic, Steel, 1 Second, 4-1/2" L x 1-1/2" H x 1-4/5" W Dimensions, Blue, Yellow
- Measures static pressure wirelessly from -80 to +80 inches of water column.
- Achieves high accuracy (±0.03 inWC from 0-2 inWC, ±1.5% FS from 2-80 inWC) and 0.01 inWC resolution.
- Includes static pressure tips and gas pressure adapters (1/8†NPT fitting, slide adapter).
- Connects via Bluetooth 4.2 with a 400 ft line-of-sight range to the YJACK VIEW app.
- Features a rotating magnetic mount and an integrated display for versatile use.
- Provides up to 280 hours of battery life with power-saving mode (AAA batteries included).
- Comes with a soft carrying case and a 2-year warranty.
