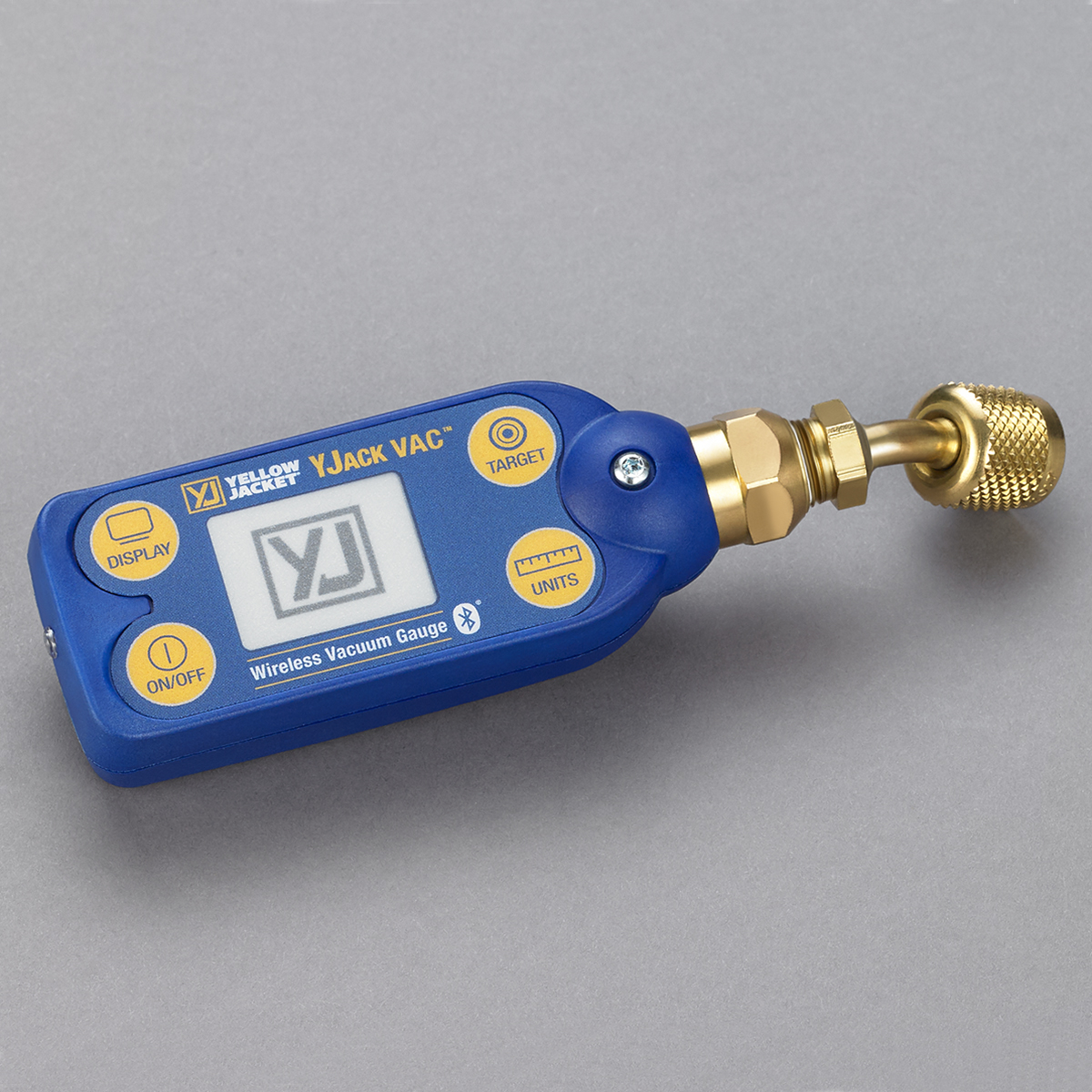

Yellow Jacket YJACK 67066 VAC Wireless Vacuum Gauge, 1 Micron-Atmospheric Pressure (Overall); 1-760,000 Microns (With YJACK VIEW® App); 1-99,999 Microns (On Integrated Display), 450 PSI (Proof), 1/4" Quick Connect (45°) Connection, 1/4" Fitting Size, ± 20% RDG (10-25,000 Microns), Electronic Paper, ≤240 Hrs (With Power Saving Mode) Battery Life
Yellow Jacket YJACK 67066 VAC Wireless Vacuum Gauge, 1 Micron-Atmospheric Pressure (Overall); 1-760,000 Microns (With YJACK VIEW® App); 1-99,999 Microns (On Integrated Display), 450 PSI (Proof), 1/4" Quick Connect (45°) Connection, 1/4" Fitting Size, ± 20% RDG (10-25,000 Microns), Electronic Paper, ≤240 Hrs (With Power Saving Mode) Battery Life
| Accuracy | : | ± 20% RDG (10-25,000 microns) |
| Battery Life | : | 240 hrs (With Power Saving Mode) |
| Battery Type | : | AAA |
| Connection Type | : | 1/4" Quick Connect (45°) |
| Display Type | : | Electronic Paper |
| Fitting Size | : | 1/4 " |
| Measuring Range | : | 1 micron-atmospheric pressure (Overall); 1-760,000 microns (With YJACK VIEW® App); 1-99,999 microns (On Integrated Display) |
| Power Supply | : | AAA Batteries |
| Pressure Rating | : | 450 PSI (Proof) |
| Series | : | YJACK |
| Temperature Rating | : | 32-104 °F (Operating), -4-122 °F (Storage) |
The YJACK VAC® Wireless Vacuum Gauge provides all the features needed for effective system evacuation. It offers full-range vacuum measurement from atmospheric pressure down to 1 micron, and its robust sensor ensures accurate readings during every job.Use the integrated electronic paper display to view system vacuum readings and configure target levels, or track the evacuation remotely via Bluetooth® with the YJACK VIEW® app, TITANMAXâ„¢, or P51-870 TITAN® Digital Manifold. This gauge allows users to perform hold tests and log system data for service records and reporting. Units with serial number YJVAC-2434-9755 or later feature a 1000 ft line-of-sight signal range.
Yellow Jacket VAC Wireless Vacuum Gauge, Model: YJACK, 1 Micron-Atmospheric Pressure (Overall); 1-760,000 Microns (With YJACK VIEW® App); 1-99,999 Microns (On Integrated Display), 450 PSI (Proof), 1/4" Quick Connect (45°) Connection, 1/4" Fitting Size, ± 20% RDG (10-25,000 Microns), Electronic Paper, ≤240 Hrs (With Power Saving Mode) Battery Life, AAA Battery, 32-104 °F (Operating), -4-122 °F (Storage)
- Measures vacuum wirelessly from atmospheric pressure down to 1 micron.
- Robust sensor design resists damage from pressure shock and oil contamination.
- Integrated electronic paper display provides clear readings, even in direct sunlight.
- Connects via long-range Bluetooth® (up to 1000 ft line-of-sight for newer units) to compatible apps and manifolds.
- Features a 45° x 1/4†quick-coupler fitting for versatile system attachment.
- Compatible With: YJACK VIEW® App, measureQuick® App, TITANMAXâ„¢ and P51-870 TITAN® devices (requires firmware v4.0 or later).
- Offers up to 240 hours of battery life with power-saving mode using two AAA batteries (included).
- Includes a 2-year manufacturer warranty.
