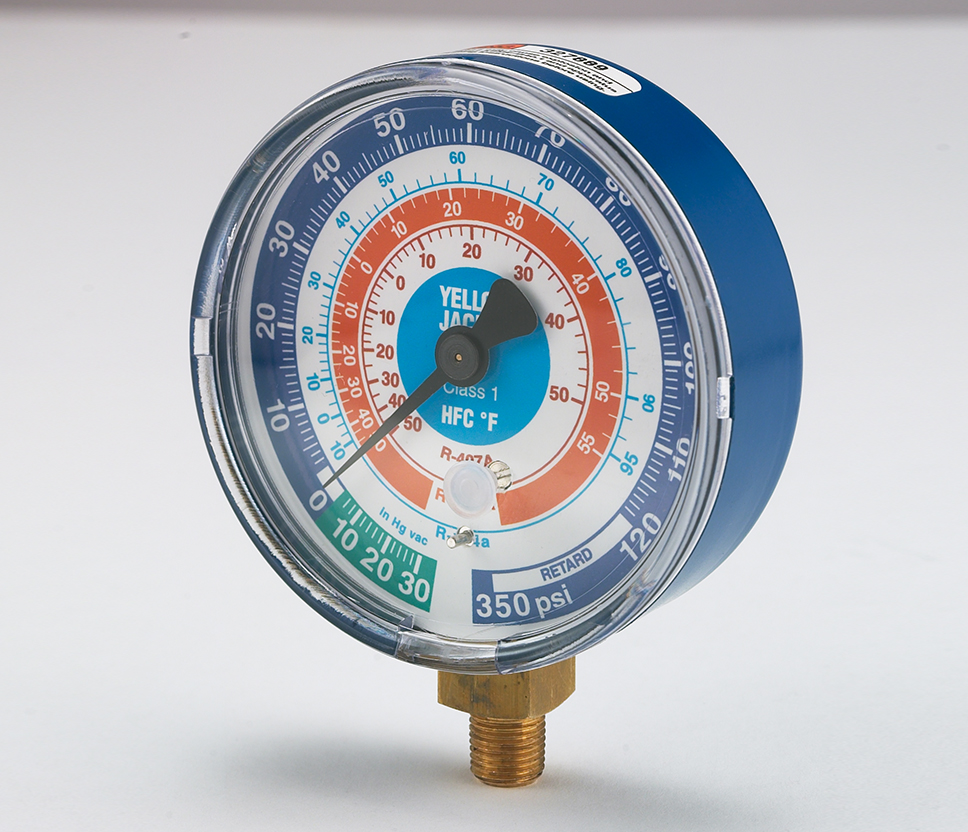

Yellow Jacket 49138 Blue Compound Gauge, R-22, R-404A, R-410A, 1/8" MNPT Connection, 1% (Class 1) Accuracy, Dial, 1 Inputs, 30 In. Hg-350 PSI (Pressure) Measuring Range, Steel (Case), Polycarbonate (Crystal), Brass (Movement/Surge Protector), Copper Alloy (Bourdon Tube)
Yellow Jacket 49138 Blue Compound Gauge, R-22, R-404A, R-410A, 1/8" MNPT Connection, 1% (Class 1) Accuracy, Dial, 1 Inputs, 30 In. Hg-350 PSI (Pressure) Measuring Range, Steel (Case), Polycarbonate (Crystal), Brass (Movement/Surge Protector), Copper Alloy (Bourdon Tube)
| Accuracy | : | 1% (Class 1) |
| Color | : | Blue |
| Connection Size | : | 1/8 in |
| Connection Type | : | 1/8" MNPT |
| Dial Size | : | 3-1/8 in |
| Dimensions | : | 7" L x 1-1/2" H x 5" W, 3-1/8" Diam (Gauge) |
| Display Type | : | Dial |
| Enclosure Type | : | Steel |
| Fitting Size | : | 1/8 " |
| Material | : | Steel (Case), Polycarbonate (Crystal), Brass (Movement/Surge Protector), Copper Alloy (Bourdon Tube) |
| Measuring Range | : | 30 in. Hg-350 PSI (Pressure) |
| Model | : | 49138 |
| Number of Inputs | : | 1 |
| Refrigerant Type | : | R-22, R-404A, R-410A |
| Temperature Rating | : | -20 to 180 deg F |
With 1% accuracy (Class 1) calibration. Large 3-1/8″ gauges are housed in a red or blue steel case with front recalibrator screw. High visibility colored temperature scales are easy to read through the full view polycarbonate crystal.
Yellow Jacket Blue Compound Gauge, R-22, R-404A, R-410A, 1/8" MNPT Connection, 1% (Class 1) Accuracy, Dial, 1 Inputs, 30 In. Hg-350 PSI (Pressure) Measuring Range, Steel (Case), Polycarbonate (Crystal), Brass (Movement/Surge Protector), Copper Alloy (Bourdon Tube), Steel Enclosure, 7" L x 1-1/2" H x 5" W, 3-1/8" Diam (Gauge) Dimensions, Blue
- Features Flutterlessâ„¢ technology with a brass surge protector to minimize needle pulsation.
- Large 3-1/8" (80 mm) gauge housed in a blue steel case with front recalibrator screw.
- High-visibility colored temperature scales are easy to read through the full-view polycarbonate crystal.
- Utilizes a durable brass gauge movement and copper alloy Bourdon tube.
- Color-coded blue for compound readings and compatible with R-22, R-404A, and R-410A refrigerants.
- Calibrated to 1% accuracy (Class 1) for reliable measurements.
- Standard 1/8" NPT male connection for easy installation on manifolds.
