Yellow Jacket Series 41 46060 Digital Manifold, 2 Pcs (Valves), -14.7-800 PSI, 0.5% FS (@ 71.6°F To 82.4°F) Accuracy, SAE End Connection, 1/4" Male SAE Connection Size, Forged Brass (Body), Nylon (Seats), Metal (Handles), 14-140 °F
Yellow Jacket Series 41 46060 Digital Manifold, 2 Pcs (Valves), -14.7-800 PSI, 0.5% FS (@ 71.6°F To 82.4°F) Accuracy, SAE End Connection, 1/4" Male SAE Connection Size, Forged Brass (Body), Nylon (Seats), Metal (Handles), 14-140 °F
| Accuracy | : | 0.5% FS (@ 71.6°F to 82.4°F) |
| Burst Pressure | : | 4000 psi |
| Connection Size | : | 1/4" Male SAE |
| End Connection | : | SAE |
| Finish | : | Forged Brass |
| Gauge Range | : | -14.7-800 PSI |
| Material | : | Forged Brass (Body), Nylon (Seats), Metal (Handles) |
| Model | : | 46060 |
| Number of Pieces | : | 2 pcs (Valves) |
| Pressure Rating | : | 800 PSI |
| Series | : | Series 41 |
| Suitable For Use With | : | Refrigerants: R-22, R-23, R-32, R-124, R-134A, R-290, R-404A, R-407C, R-407F, R-408A, R-410A, R-417A, R-427A, R-444B, R-448A, R-449A, R-452A, R-454B, R-507, R-600, R-1234YF, R-1270 (A2L Compatible) |
| Temperature Rating | : | 14-140 °F |

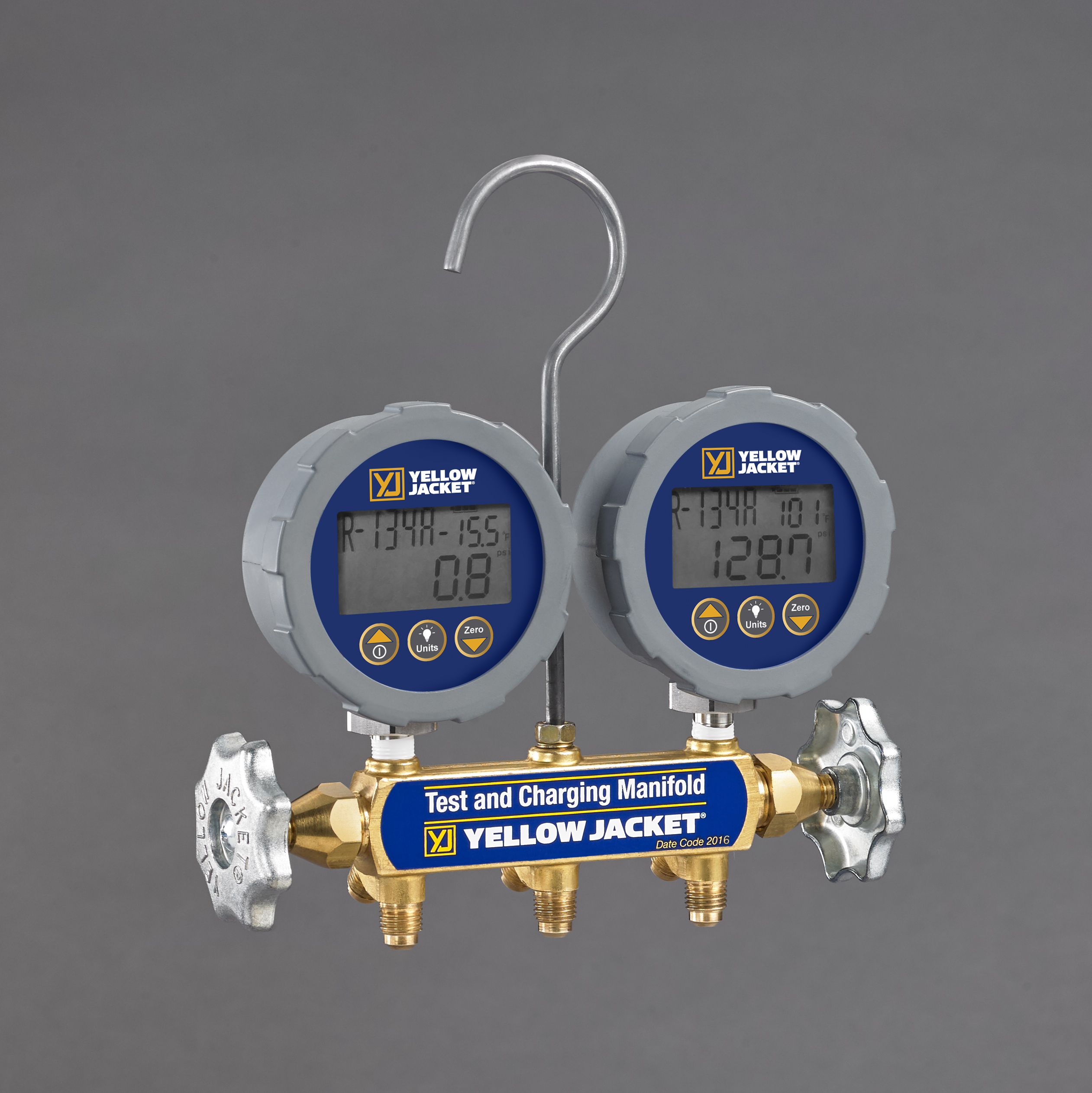

The YELLOW JACKET® Series 41 Digital Manifold combines the advantages of digital technology with the proven Series 41 2-valve brass manifold. The 3-1/8†backlit LCD gauges provide easy-to-read accurate measurements for system pressures. Each interchangeable gauge is capable of handling maximum pressures of 800 psi, so there are no worries about over-pressurizing. Pre-programmed with 21 most common refrigerants, the Series 41 Digital Manifold will provide clear, swift and accurate pressure measurements for all your system applications.The forged body of the manifold is constructed of solid brass for durability. Full porting maximizes capacity, and the metal valve handles are full size for easy operation. For added security, the hose anchors are forged into the back of body at 45°.
Yellow Jacket Digital Manifold, Model: Series 41, 2 Pcs (Valves), -14.7-800 PSI, 0.5% FS (@ 71.6°F To 82.4°F) Accuracy, SAE End Connection, 1/4" Male SAE Connection Size, Forged Brass (Body), Nylon (Seats), Metal (Handles), 14-140 °F, Forged Brass
- Durable forged brass body ensures longevity on the job site.
- Large 3-1/8" backlit LCD gauges provide clear, accurate pressure measurements.
- Interchangeable gauges handle system pressures up to 800 PSI without risk of damage.
- Pre-programmed with 21 common refrigerants, including A2L types, for wide system compatibility.
- Sliding double "O" ring pistons and long-life nylon seats reduce wear and ensure reliable operation.
- Features full porting to maximize capacity and flow during service.
- Includes a 1-year manufacturer warranty.
- Assembled in the USA.
