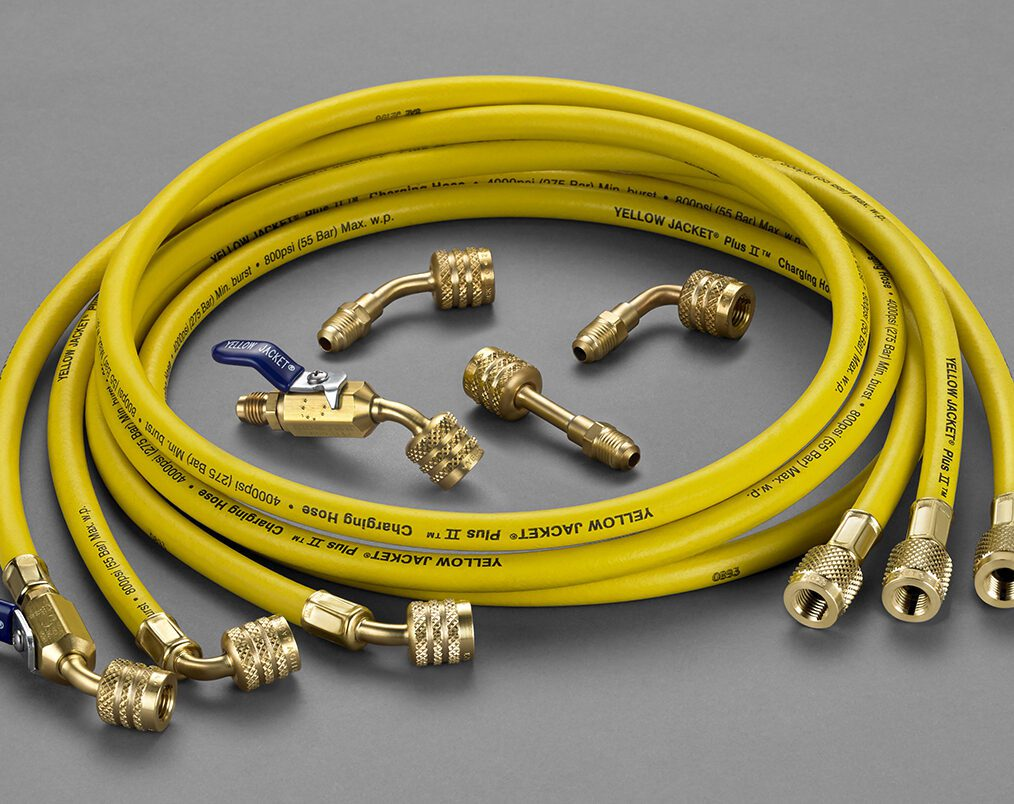

Yellow Jacket PLUS II 30460 A2L Charging Hose, 1/4" Left Hand Female SAE Flare x 1/4" Right Hand Female SAE Flare, Ball Valve, R-32, R-454B (A2L Compatible), 60" Length, 1 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F, 6" Bend Radius
Yellow Jacket PLUS II 30460 A2L Charging Hose, 1/4" Left Hand Female SAE Flare x 1/4" Right Hand Female SAE Flare, Ball Valve, R-32, R-454B (A2L Compatible), 60" Length, 1 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F, 6" Bend Radius
| Angle | : | 45 degrees |
| Bend Radius | : | 6 " |
| Color | : | Yellow |
| Connection Size | : | 1/4" LH x 1/4" RH |
| Connection Type | : | 1/4" Left Hand Female SAE Flare x 1/4" Right Hand Female SAE Flare, Ball Valve |
| Domestic/Import | : | Domestic |
| Fitting Size | : | 1/4" (Line), 1/4" (Manifold) |
| Length | : | 60 " |
| Material | : | Rubber/Polyester/Nylon (Hose), Brass (Fittings) |
| Model | : | 30460 |
| Nominal Size | : | 1/4 " |
| Number of Hoses | : | 1 |
| Pressure Rating | : | 800 PSI (Working), 4,000 PSI (Burst) |
| Refrigerant Type | : | R-32, R-454B (A2L Compatible) |
| Series | : | PLUS II |
| Suitable For Use With | : | A2L Refrigerant Systems (R-32, R-454B) |
| Temperature Rating | : | -20-180 °F |
The A2L refrigerants, R-32 and R-454B , have adopted left-handed connections for their tanks. These new refrigerants are categorized as slightly flammable, so left-handed connections were implemented to differentiate them from A1, non-flammable refrigerants. As the industry adopts these new refrigerants, YELLOW JACKET® A2L Tank Adapters and Charging Hoses incorporate left-handed connections so a service technician can safely charge A2L refrigerant systems.Easily identified by double ring on tightening knurl for LH connection.
Yellow Jacket A2L Charging Hose, Model: PLUS II, 1/4" Left Hand Female SAE Flare x 1/4" Right Hand Female SAE Flare, Ball Valve, R-32, R-454B (A2L Compatible), 60" Length, 1 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F, 6" Bend Radius, 45 Degrees Angle, Rubber/Polyester/Nylon (Hose), Brass (Fittings), Yellow, Domestic
- Designed for safe charging of A2L refrigerant systems (R-32, R-454B) with specific left-handed connections.
- Features 1/4" LH x 1/4" RH SAE flare connections with a 45° angle and integrated ball valve.

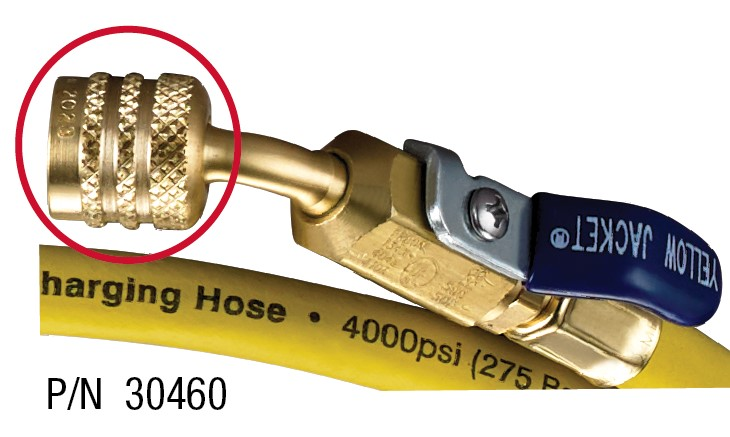

- Easily identified left-hand connection with a double ring on the tightening knurl.
- Nylon permeation barrier meets SAE J2196 standards and resists moisture migration.
- Rated for 800 psi maximum working pressure and 4000 psi minimum burst pressure.
- UL recognized hose assembly (File SA9737).
- Made in the USA.
