Yellow Jacket PLUS II 22985 Charging Hose Set, Sealright Fitting (Straight/45°), 1/4" Connection Size, R-410A (Recommended), CFC, HCFC, HFC, 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F
Yellow Jacket PLUS II 22985 Charging Hose Set, Sealright Fitting (Straight/45°), 1/4" Connection Size, R-410A (Recommended), CFC, HCFC, HFC, 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F
| Angle | : | 45 degrees (Fitting End) |
| Bend Radius | : | 6 " |
| Color | : | Red, Yellow, Blue |
| Connection Size | : | 1/4 " |
| Connection Type | : | SealRight Fitting (Straight/45°) |
| Domestic/Import | : | Domestic |
| Fitting Material | : | Brass |
| Fitting Size | : | 1/4 " |
| Length | : | 60 " |
| Material | : | Rubber/Polyester/Nylon (Hose), Brass (Fittings) |
| Model | : | 22985 |
| Nominal Size | : | 1/4 " |
| Number of Hoses | : | 3 |
| Pressure Rating | : | 800 PSI (Working), 4,000 PSI (Burst) |
| Refrigerant Type | : | R-410A (Recommended), CFC, HCFC, HFC |
| Series | : | PLUS II |
| Suitable For Use With | : | Refrigerant Charging And Evacuation; CFC, HCFC, HFC (Including R-410A) |
| Temperature Rating | : | -20-180 °F |

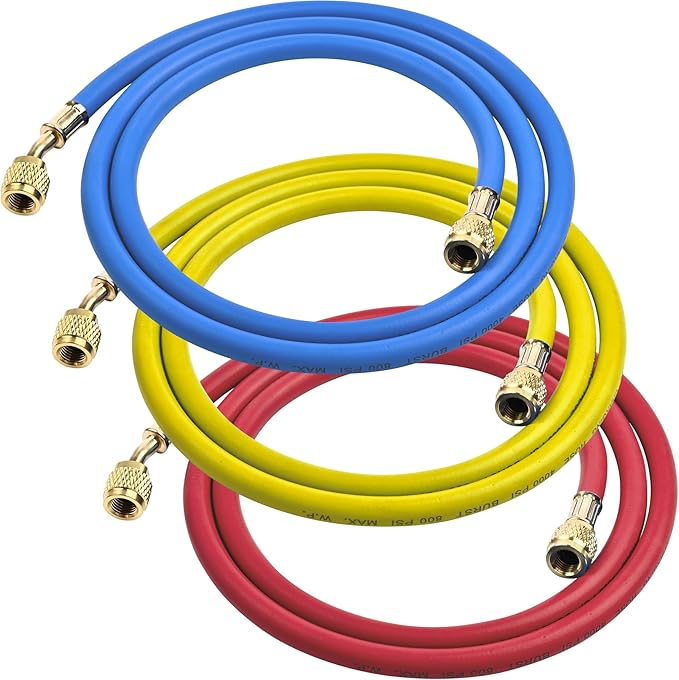

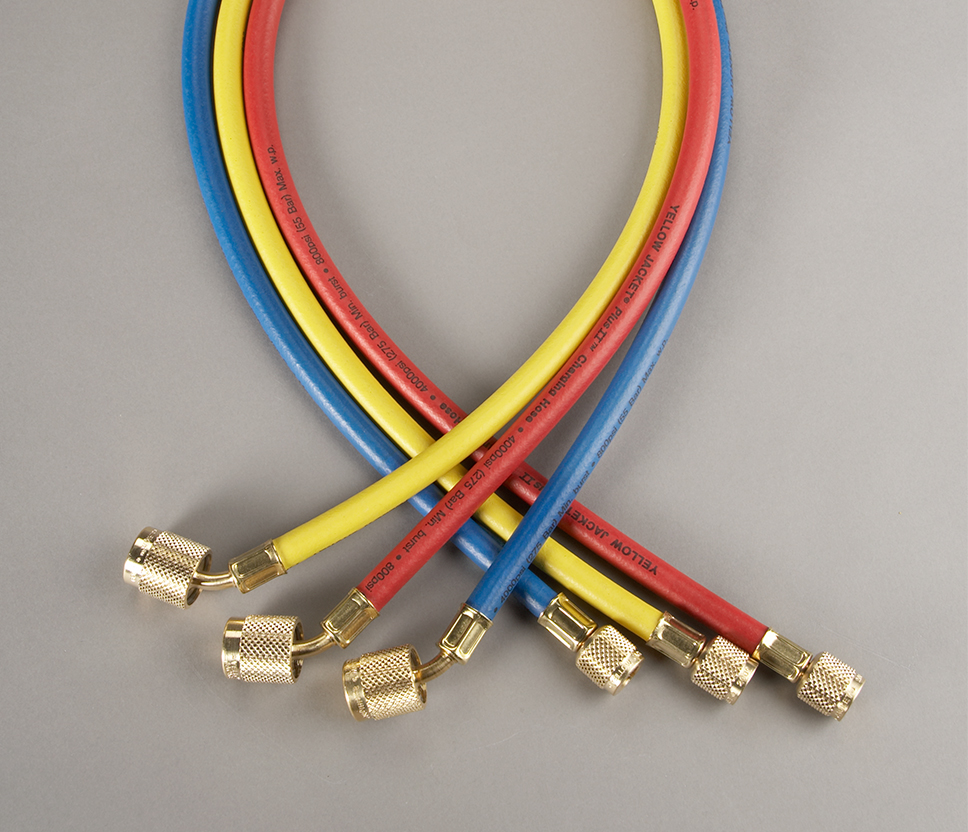

This Yellow Jacket PLUS II charging hose set includes three 60-inch hoses (red, yellow, and blue) with 1/4-inch connections, designed for servicing HVAC/R systems. The hoses feature SealRight™ low-loss, anti-blowback fittings on one end, which immediately trap refrigerant when disconnected. This helps technicians meet non-venting regulations and prevents potential finger burns.Built for durability and convenience, the hoses feature a 45° angled fitting end for easier installation in tight areas. The multi-layer construction includes a nylon permeation barrier and resists deterioration from common refrigerants (CFC, HCFC, HFC, HFO) and oils. These hoses are rated for 800 PSI maximum working pressure, are UL recognized, and made in the USA.
Yellow Jacket Charging Hose Set, Model: PLUS II, Sealright Fitting (Straight/45°), 1/4" Connection Size, R-410A (Recommended), CFC, HCFC, HFC, 60" Length, 3 Hoses, 800 PSI (Working), 4,000 PSI (Burst), -20-180 °F, 6" Bend Radius, 45 Degrees (Fitting End) Angle, Brass, Rubber/Polyester/Nylon (Hose), Brass (Fittings), Red, Yellow, Blue, Domestic
- Includes three 60-inch hoses (Red, Yellow, Blue) with 1/4" fittings.
- SealRightâ„¢ low-loss, anti-blowback fittings trap refrigerant upon disconnection, reducing loss and improving safety.
- Features a 45° angled fitting end for easier access in confined spaces.
- Rated for 800 PSI maximum working pressure and 4000 PSI minimum burst pressure.
- Gaskets resist deterioration from CFC, HCFC, HFC, and HFO refrigerants and oils.
- UL recognized assembly (File SA9737).
- Made in the USA.
