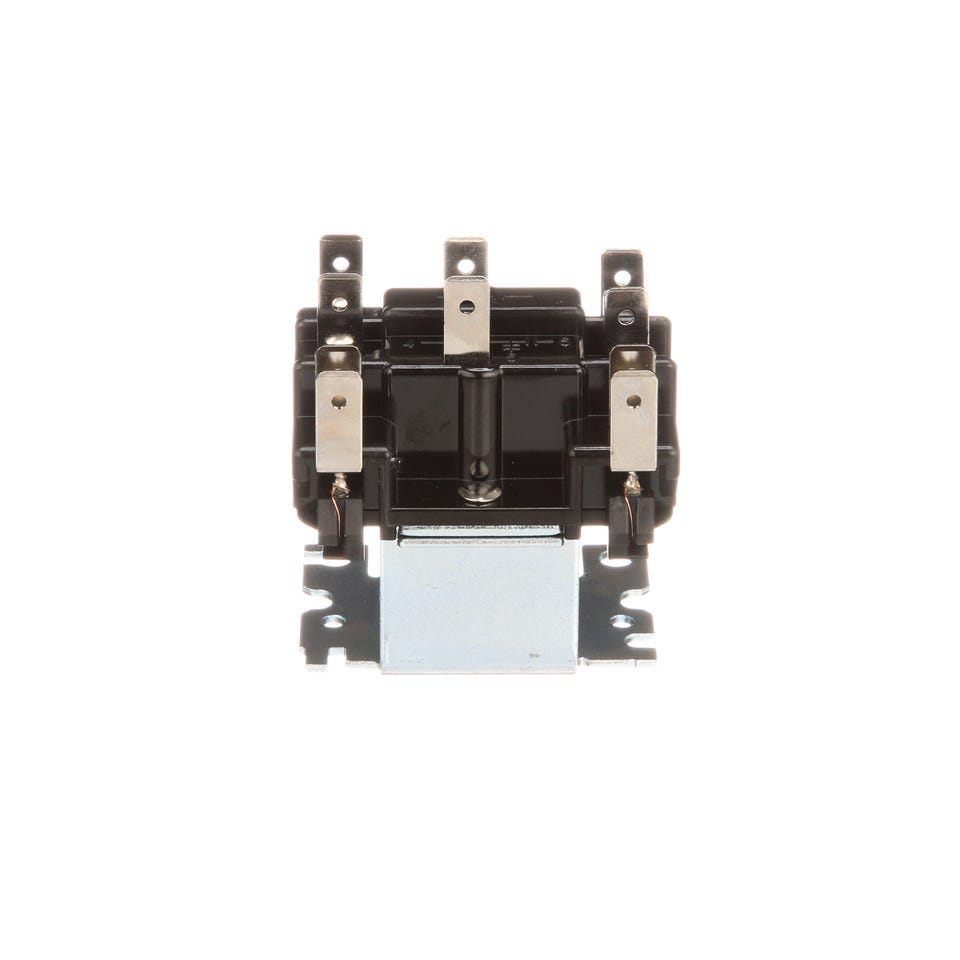

White Rodgers Type 91 90-340 DPDT Switching Relay, DPDT Contact Form, 6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC), 24 VAC, 277 VAC, 1/4" Quick Connect Terminal, Universal Mount, 2-1/4" Overall Height
White Rodgers Type 91 90-340 DPDT Switching Relay, DPDT Contact Form, 6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC), 24 VAC, 277 VAC, 1/4" Quick Connect Terminal, Universal Mount, 2-1/4" Overall Height

White Rodgers Type 91 90-340 DPDT Switching Relay, DPDT Contact Form, 6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC), 24 VAC, 277 VAC, 1/4" Quick Connect Terminal, Universal Mount, 2-1/4" Overall Height

White Rodgers Type 91 90-340 DPDT Switching Relay, DPDT Contact Form, 6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC), 24 VAC, 277 VAC, 1/4" Quick Connect Terminal, Universal Mount, 2-1/4" Overall Height

Manufacturer: Copeland LP
Brand: WHITE-RODGERS™
Part #: 384554
MPN: 90-340
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC)
Coil Voltage      :      24 VAC
Contact Form      :      DPDT
Mounting Type      :      Universal Mount
Overall Depth      :      1-7/8 "
Overall Height      :      2-1/4 "
Overall Width      :      2-1/8 "
Series      :      Type 91
Suitable For Use With      :      Vending Machines; Appliances; Heating and Air Conditioning Applications; General Purpose Switching; Fan Control Centers: 90-112, 90-113, 90-118E, 90-119; ICP Equipment
Terminal Type      :      1/4" Quick Connect
Voltage Rating      :      277 VAC

A Two Pole Double Throw (DPDT) semi-enclosed relay designed for various HVAC and general purpose switching applications. This Type 91 relay is suitable for use in vending machines, appliances, and heating and air conditioning systems, and is also compatible as a replacement relay for select White-Rodgers Fan Control Centers.

White Rodgers DPDT Switching Relay, Model: Type 91, DPDT Contact Form, 6 A (FLA, 240/277 VAC); 12 A (FLA, 125 VAC); 15 A (Resistive, 277 VAC), 24 VAC, 277 VAC, 1/4" Quick Connect Terminal, Universal Mount, 2-1/4" Overall Height, 2-1/8" Overall Width, 1-7/8" Overall Depth

  • DPDT contact form provides versatile switching options.
  • Operates on a standard 24 VAC coil voltage (50/60 Hz).
  • Rated for continuous duty cycle operation.
  • Features 1/4" quick-connect terminals for straightforward wiring.
  • Designed for a wide operating temperature range (-40°F to 130°F).
  • UL recognized (File E12139) and CSA certified (File LR13360).
  • Compatible with White-Rodgers fan control centers 90-112, 90-113, 90-118E, and 90-119.
  • Data Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/90-340-thru-90-342-relays-4572-9328.pdf
