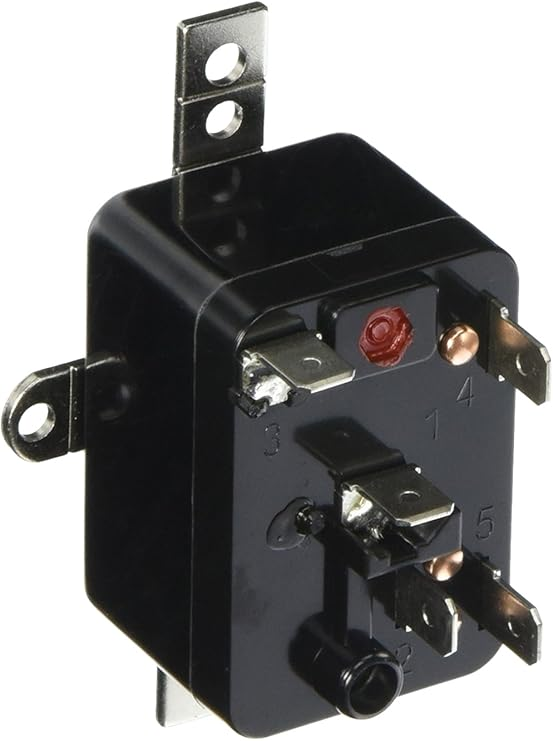

White Rodgers Type 84 90-293Q Fan Relay, SPDT Contact Form, 8 A (Inductive Continuous); 16 A (Resistive Continuous), 24 VAC, 125/250 VAC, 1/4" Quick Connect Terminal, Surface Mount, 1-1/2" Overall Height
White Rodgers Type 84 90-293Q Fan Relay, SPDT Contact Form, 8 A (Inductive Continuous); 16 A (Resistive Continuous), 24 VAC, 125/250 VAC, 1/4" Quick Connect Terminal, Surface Mount, 1-1/2" Overall Height
Manufacturer: Copeland LP
Brand: WHITE-RODGERS™
Part #: 384549
MPN: 90-293Q
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | -40 to 150 deg F Temperature Rating, 125/250 VAC Contact Rating, 50/60 Hz Frequency Rating, 90 Ohm Resistance |
| Amperage Rating | : | 8 A (Inductive Continuous); 16 A (Resistive Continuous) |
| Coil Voltage | : | 24 VAC |
| Contact Form | : | SPDT |
| Mounting Type | : | Surface Mount |
| Overall Depth | : | 1-4/5 " |
| Overall Height | : | 1-1/2 " |
| Overall Width | : | 1-5/8 " |
| Series | : | Type 84 |
| Suitable For Use With | : | Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads, General Purpose Switching; Heating and Cooling Applications |
| Terminal Type | : | 1/4" Quick Connect |
| Voltage Rating | : | 125/250 VAC |
Used for switching single or two-speed fan motors, solenoids, relays, resistive loads, and general purpose switching. Features a compact, totally enclosed design suitable for heating, cooling, and general switching applications. Offers quiet, reliable, and economical operation.
White Rodgers Fan Relay, Model: Type 84, SPDT Contact Form, 8 A (Inductive Continuous); 16 A (Resistive Continuous), 24 VAC, 125/250 VAC, 1/4" Quick Connect Terminal, Surface Mount, 1-1/2" Overall Height, 1-5/8" Overall Width, 1-4/5" Overall Depth
- Compact, totally enclosed design ensures quiet operation and protection.
- Versatile SPDT contacts switch single/two-speed fan motors, solenoids, relays, and resistive loads.
- Suitable for various heating, cooling, and general purpose switching applications.
- Features convenient 1/4" quick-connect terminals for easy wiring.
- Operates with a standard 24 VAC coil (50/60 Hz).
- UL recognized and CSA certified for safety assurance.
- Backed by a 1-year manufacturer warranty.
