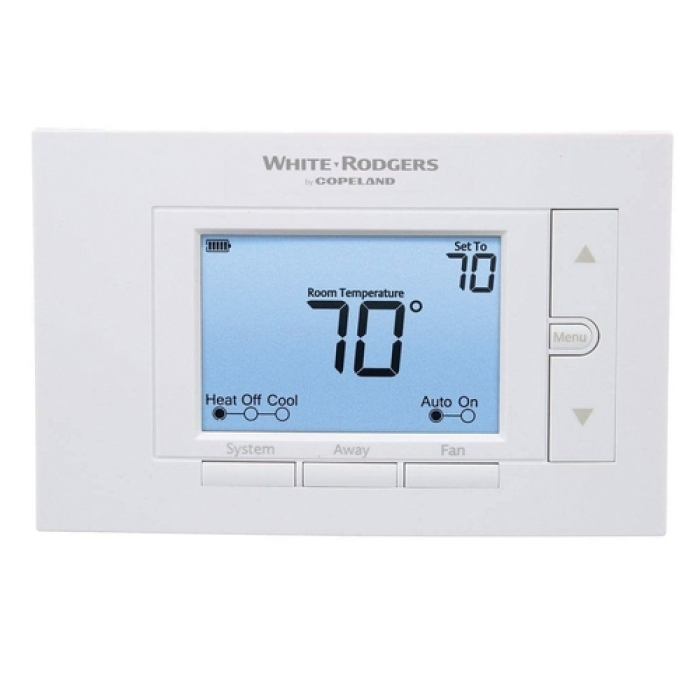

WHITE-RODGERS™ 1F85U-22NP Non-Programmable Thermostat, 24 V, 1H/1C, 2H/1C, 2H/2C-Stage, Auto Changeover: Yes, AA
WHITE-RODGERS™ 1F85U-22NP Non-Programmable Thermostat, 24 V, 1H/1C, 2H/1C, 2H/2C-Stage, Auto Changeover: Yes, AA

WHITE-RODGERS™ 1F85U-22NP Non-Programmable Thermostat, 24 V, 1H/1C, 2H/1C, 2H/2C-Stage, Auto Changeover: Yes, AA

WHITE-RODGERS™ 1F85U-22NP Non-Programmable Thermostat, 24 V, 1H/1C, 2H/1C, 2H/2C-Stage, Auto Changeover: Yes, AA

Manufacturer: Copeland LP
Brand: WHITE-RODGERS™
Part #: 382483
MPN: 1F85U-22NP
Customer Part #:
Min. Order Qty: 1
Login for Availability
Accuracy      :      +/-1 deg C
Amperage Rating      :      2.5 A
Auto Changeover      :      Yes
Battery Type      :      AA
Color      :      White
Depth      :      1.15 in
Differential Temperature      :      0.9 deg F Fast, 1.2 deg F Medium, 1.7 deg F Slow Cooling/Heat Pump Heating, 0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Slow Auxiliary Heating/Heating
Display Type      :      Backlight Digital LCD
Height      :      3-3/4 in
Humidity Rating      :      0 to 90 %
Number of Stages      :      1H/1C, 2H/1C, 2H/2C
Power Source      :      Battery, Hardwired
Product Weight      :      0.55 lb
Setpoint Temperature Range      :      45 to 99 deg F
Terminal Designations      :      RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L
Voltage Rating      :      24 V
Width      :      6 in

The White-Rodgers 80 Series thermostats are the perfect fit for every application with a large, backlit display, easy to use design, flexible programming and dependable performance. Thermostats with a footprint that fits the install, features that fit the homeowner and support that fits your business.

WHITE-RODGERS™ Non-Programmable Thermostat, 24 V, 1H/1C, 2H/1C, 2H/2C Stages, Auto Changeover: Yes, Battery, Hardwired Power Source, AA Battery, Backlight Digital LCD Display, White, 45 to 99 deg F Setpoint Temperature Range, 0.9 deg F Fast, 1.2 deg F Medium, 1.7 deg F Slow Cooling/Heat Pump Heating, 0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Slow Auxiliary Heating/Heating Differential Temperature, +/-1 deg C Accuracy, 0 to 90 % Humidity Rating, 2.5 A, RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L Terminal Designations, 3-3/4 in Height, 6 in Width, 1.15 in Depth

  • Large display, bright backlight, high contrast screen
  • Easy to install with built-in level, simple set-up menu and separate subbase
  • Non-Programmable
  • Dual fuel control, no outdoor sensor required, standard on all staging models
  • Auto changeover on all universal models
  • Keypad lockout and adjustable heat/cool temperature limits
