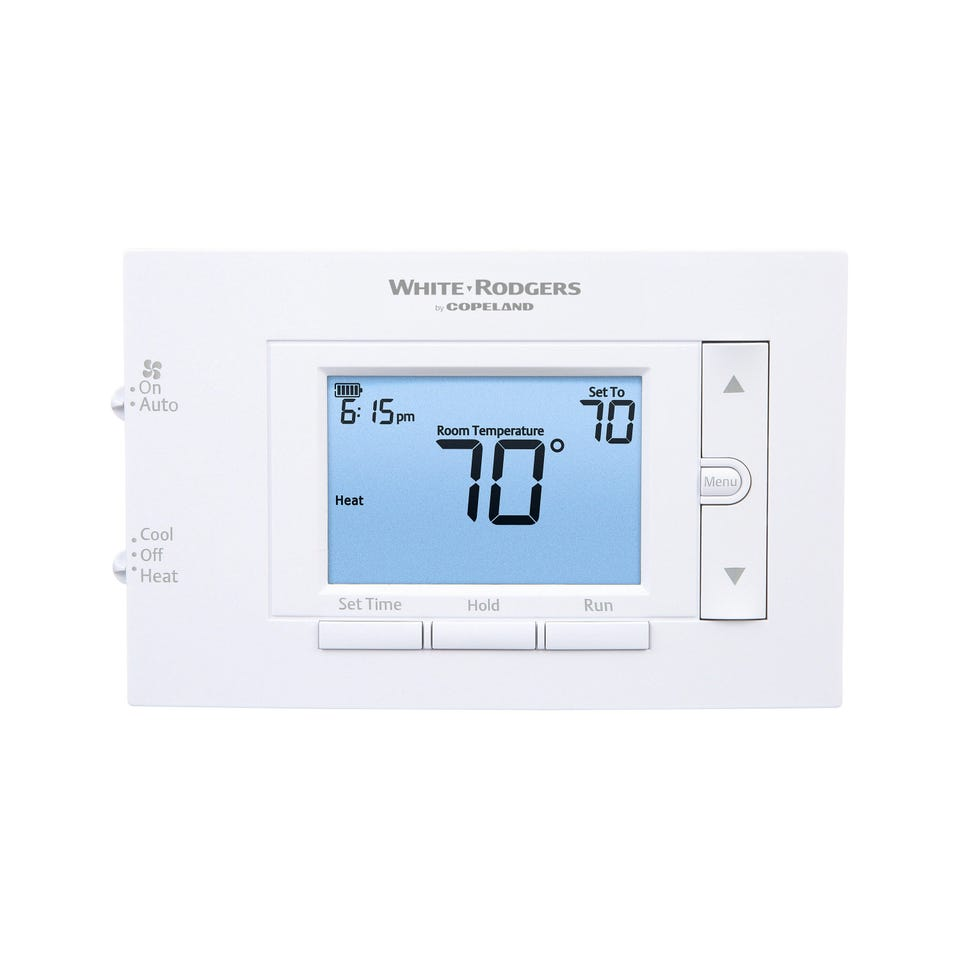

White Rodgers 80 Series 1F83C-11PR Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C, Manual, Horizontal, Wired / Lead Wires, Battery, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered
White Rodgers 80 Series 1F83C-11PR Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C, Manual, Horizontal, Wired / Lead Wires, Battery, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals) |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires, Battery |
| Contact Rating | : | 1.0 A (20-30 VAC) |
| Control Range | : | 45 °F-99 °F |
| Cool Current | : | 1.0 A (Per Terminal) |
| Dehumidification | : | No |
| Differential Temperature | : | 0.5 °F (Heat, Conventional Gas/Oil/Elect, Fast), 0.75 °F (Heat, Conventional Gas/Oil/Elect, Med), 1.9 °F (Heat, Conventional Gas/Oil/Elect, Slow); 0.9 °F (Cool, Central Air, Fast), 1.2 °F (Cool, Central Air, Med), 1.7 °F (Cool, Central Air, Slow); 0.9 °F (Heat Pump, Heat and Cool, Fast), 1.2 °F (Heat Pump, Heat and Cool, Med), 1.7 °F (Heat Pump, Heat and Cool, Slow) |
| Dimensions | : | 3-3/4" H x 6" W x 1-1/8" D |
| Display Type | : | LCD |
| Fan Current | : | 1.0 A (Per Terminal) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 1.0 A (Per Terminal) |
| Humidity Rating | : | 90% (Non-Condensing) |
| Material | : | Plastic (Housing) |
| Model | : | 1F83C-11PR |
| Mounting Type | : | Horizontal |
| Power Source | : | Dual Powered |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Series | : | 80 Series |
| Stages | : | 1 H / 1 C |
| Temperature Rating | : | 32-105 °F |
| Temperature Settings | : | 45°F - 99°F |
| Terminal Designation | : | RC, RH, C, W, Y, O/B, G |
| Termination | : | Terminal Block |
| Voltage Rating | : | 20-30 VAC (Hardwire), mV-30 VAC (Battery) |
Emerson 80 Series thermostats offer a footprint that fits the install, features that fit the homeowner and support that fits your business. With a large, backlit display, easy to use design, flexible programming and dependable performance, 80 Series thermostats are the perfect fit for every application.
White Rodgers Programmable Thermostat, Model: 80 Series, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C, Manual, Horizontal, Wired / Lead Wires, Battery, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered, LCD, 45°F - 99°F, Terminal Block, RC, RH, C, W, Y, O/B, G Terminal Designation, 32-105 °F, ± 1 °F, 0.5 °F (Heat, Conventional Gas/Oil/Elect, Fast), 0.75 °F (Heat, Conventional Gas/Oil/Elect, Med), 1.9 °F (Heat, Conventional Gas/Oil/Elect, Slow); 0.9 °F (Cool, Central Air, Fast), 1.2 °F (Cool, Central Air, Med), 1.7 °F (Cool, Central Air, Slow); 0.9 °F (Heat Pump, Heat And Cool, Fast), 1.2 °F (Heat Pump, Heat And Cool, Med), 1.7 °F (Heat Pump, Heat And Cool, Slow), ≤90% (Non-Condensing), No Dehumidification, White, 3-3/4" H x 6" W x 1-1/8" D Dimensions, Plastic (Housing), AA Alkaline Battery, 1.0 A (20-30 VAC), 1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals), 50 Hz, 60 Hz, System (Heat/Off/Cool), Fan (Auto/On)
- Designed for single-stage (1H/1C) conventional and heat pump (no auxiliary heat) systems.
- Offers flexible programming options: 7-Day, 5+1+1 Day, or can be set as non-programmable.
- Features a large, backlit digital LCD display for clear visibility.
- Dual powered capability allows operation via battery or hardwired 20-30 VAC connection.
- Includes keypad lockout and adjustable setpoint temperature limits for secure operation.
- Provides adjustable filter change reminders to aid system maintenance.
- Backed by a 5-year limited warranty for professional installers.
