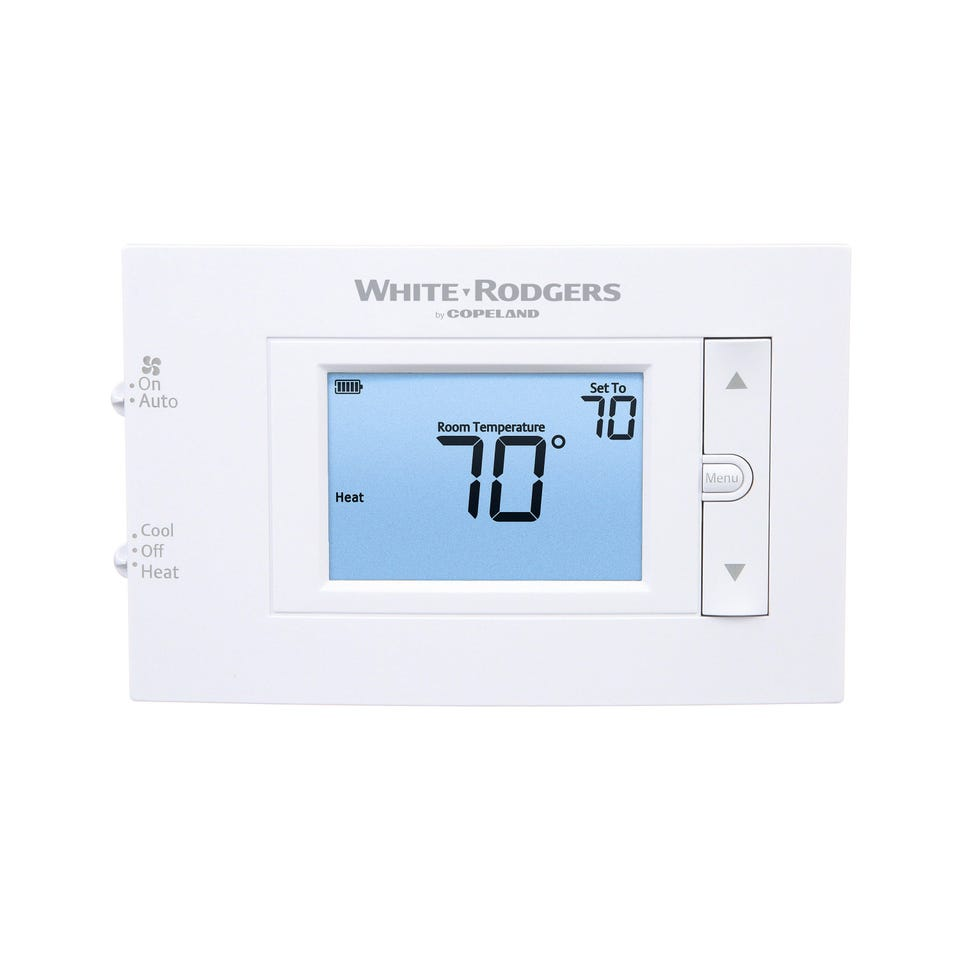

White Rodgers 80 Series 1F83C-11NP Non-Programmable Thermostat, 1 H / 1 C, Screw Terminal, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered, Manual Changeover, LCD, 45-99 °F Temperature Settings
White Rodgers 80 Series 1F83C-11NP Non-Programmable Thermostat, 1 H / 1 C, Screw Terminal, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered, Manual Changeover, LCD, 45-99 °F Temperature Settings
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Screw Terminal |
| Cool Current | : | 1.0 A (Per Terminal) |
| Differential Temperature | : | 0.5-1.9 °F (Heat), 0.9-1.7 °F (Cool) |
| Dimensions | : | 3-3/4" H x 6" W x 1-1/8" D |
| Display Type | : | LCD |
| Fan Current | : | 1.0 A (Per Terminal) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 1.0 A (Per Terminal) |
| Humidity Rating | : | 90% (Non-Condensing) |
| Material | : | Plastic |
| Model | : | 1F83C-11NP |
| Mounting Type | : | Wall Mount (UWP Mounting System) |
| Number of Fans | : | 1 |
| Phase | : | 1 |
| Power Source | : | Dual Powered |
| Stages | : | 1 H / 1 C |
| Suitable For Use With | : | Conventional Air Conditioning; Gas/Oil/Electric Heat; Heat Pump (No Aux); Millivolt Heat Systems |
| Switch Position | : | Horizontal |
| Temperature Rating | : | 32-105 °F |
| Temperature Settings | : | 45-99 °F |
| Voltage Rating | : | 20-30 VAC (Hardwire), mV-30 VAC (Battery) |
The 80 Series thermostats are the perfect fit for every application with universal, conventional and heat pump models. The standard footprint makes replacements and upgrades easier than ever without leaving visible marks on the wall from the old thermostat.This non-programmable thermostat controls single-stage (1H/1C) conventional or heat pump systems (without aux). It features a large, backlit LCD display for clear visibility and straightforward push-button controls. Powered by 2 AA batteries or hardwired (20-30 VAC), it offers flexibility during installation and includes features like keypad lockout and adjustable temperature limits.
White Rodgers Non-Programmable Thermostat, Model: 80 Series, 1 H / 1 C, Screw Terminal, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered, Manual Changeover, LCD, 45-99 °F Temperature Settings, 32-105 °F, 1 Fan(s), Wall Mount (UWP Mounting System), 0.5-1.9 °F (Heat), 0.9-1.7 °F (Cool) Differential Temperature, ± 1 °F Accuracy, AA Alkaline Battery, Horizontal, 3-3/4" H x 6" W x 1-1/8" D Dimensions, White, Plastic, ≤90% (Non-Condensing), 1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals), 50 Hz, 60 Hz, 1 Phase
- Controls single-stage (1H/1C) conventional and heat pump systems without auxiliary heat.
- Features a large 4.5 sq. in. backlit LCD display for clear visibility.
- Dual power capable: operates via hardwire (20-30 VAC) or battery power (2 AA included).
- Standard footprint and built-in level indicator simplify installation and upgrades.
- Includes keypad lockout and adjustable setpoint temperature limits (45°F to 99°F).
- Compatible with millivolt heat systems.
- Backed by a 5-year limited warranty for professionals.
