Linesets, Inc 40820150B6L Line Set, 1/2" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
Linesets, Inc 40820150B6L Line Set, 1/2" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
| Color | : | Black |
| Connection Type | : | Plain End |
| Domestic/Import | : | Domestic |
| Finish | : | Co-Extruded/UV Resistant (Jacket) |
| Insulation Thickness | : | 1 " |
| Length | : | 15 ' |
| Liquid Line Size | : | 1/4 " |
| Material Standard | : | ASTM B280 (Copper Tube), ASTM B1003 (Insulation), UL 700 PSI |
| Material | : | C12200 Copper (Tube), NBR/PVC (Insulation) |
| Model | : | 40820150B6L |
| Pressure Rating | : | 700 PSI (UL Recognized) |
| Suction Line Size | : | 1/2 " |
| Temperature Rating | : | -297-220°F (Insulation) |

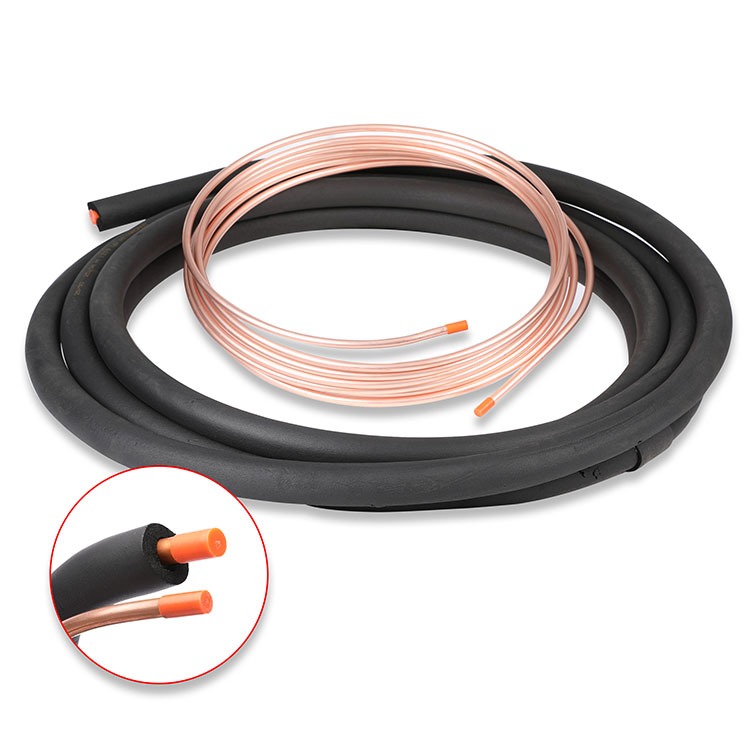

This insulated line set is designed for HVACR applications, particularly suitable for mini-split systems. It includes a 1/4" liquid line and a 1/2" suction line, both extending 15 feet in length with plain ends for field connection.Manufactured in the USA from C12200 grade copper tubing meeting ASTM B280 standards for cleanliness, the lines are insulated with 1" thick black elastomeric insulation. This insulation meets ASTM B1003 requirements, provides UV resistance, and is rated for temperatures from -297°F to 220°F. The assembly is UL recognized with a pressure rating of 700 PSI.
Linesets, Inc Line Set, 1/2" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Plain End, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), -297-220°F (Insulation), Co-Extruded/UV Resistant (Jacket), Black, Domestic
- Features a 1/4" liquid line and 1/2" suction line in a 15-foot length.
- Insulated with 1" thick, UV-resistant black elastomeric material meeting ASTM B1003.
- Constructed from C12200 grade copper tubing conforming to ASTM B280 cleanliness standards.
- Plain ends allow for flexible field connections during installation.
- UL recognized with a maximum pressure rating of 700 PSI.
- Pressurized with nitrogen to prevent internal oxidation during brazing.
- Proudly manufactured in the USA.
