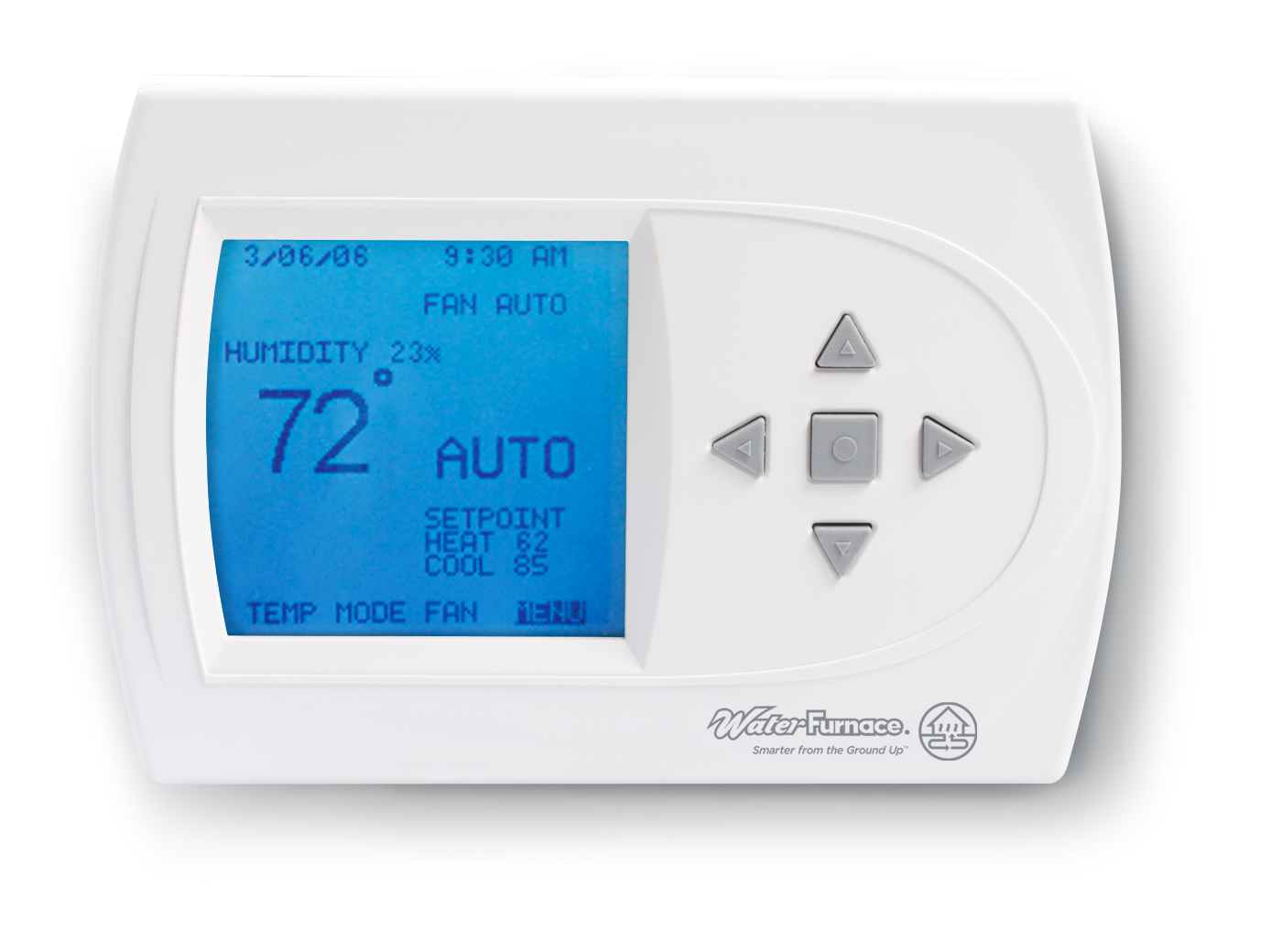

Water Furnace TP32U04GSR Programmable Thermostat, 3 H / 2 C, Auto, Manual, Wall Mount, Wired / Lead Wires, 24 V, Low Voltage, LCD
Water Furnace TP32U04GSR Programmable Thermostat, 3 H / 2 C, Auto, Manual, Wall Mount, Wired / Lead Wires, 24 V, Low Voltage, LCD
| Changeover | : | Auto, Manual |
| Connection Type | : | Wired / Lead Wires |
| Cycles per Hour | : | 4 CPH, 6 CPH (Adjustable) |
| Dehumidification | : | Yes |
| Differential Temperature | : | 0.5-4 °F (Adjustable) |
| Display Type | : | LCD |
| Electrical Connection | : | Terminal Block |
| Model | : | TP32U04GSR |
| Mounting Type | : | Wall Mount |
| Power Source | : | Low Voltage |
| Programmability | : | Programmable |
| Stages | : | 3 H / 2 C |
| Terminal Designation | : | C, G, H, L, O, R, DH, ID, OD, W1, Y1, Y2, GND |
| Voltage Rating | : | 24 V |

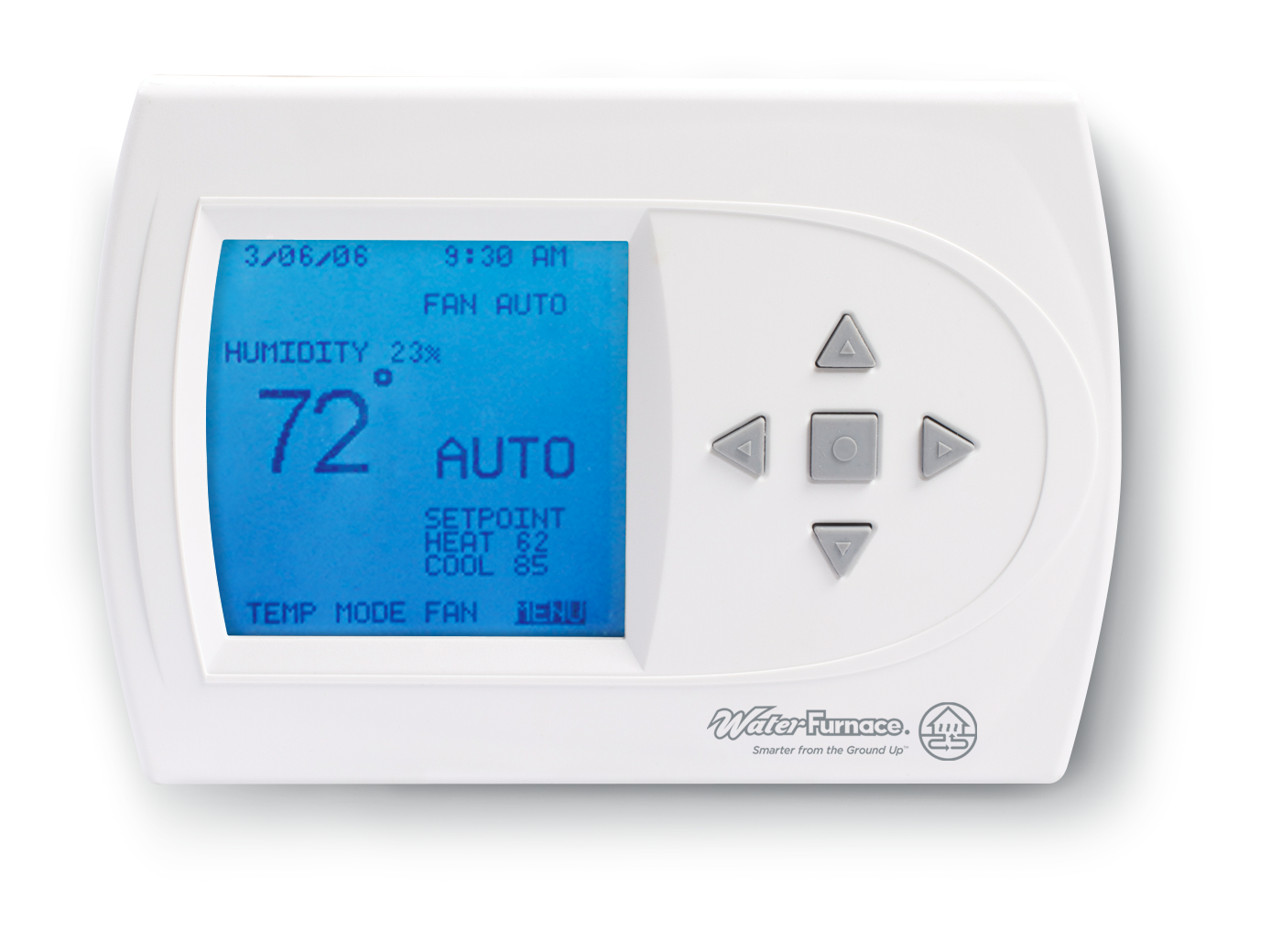

The GEOSTAR TP32U04 is a wall-mounted, low-voltage thermostat designed to maintain room temperature by controlling heating and air conditioning systems. It features a text-based display, programmability, and dual-fuel capability, offering versatile control options.This model includes integrated humidity control, suitable for managing whole-house humidifiers or dehumidifiers. Settings are preserved during power outages, ensuring consistent operation without the need for batteries.
Water Furnace Programmable Thermostat, 3 H / 2 C, Auto, Manual, Wall Mount, Wired / Lead Wires, 24 V, Low Voltage, LCD, Terminal Block, C, G, H, L, O, R, DH, ID, OD, W1, Y1, Y2, GND Terminal Designation, 0.5-4 °F (Adjustable), Yes Dehumidification, 4 CPH, 6 CPH (Adjustable)
- Controls up to 3 stages of heat and 2 stages of cool (3H/2C) for versatile system management.
- Offers integrated humidity control for managing humidifiers and dehumidifiers.
- Features flexible programmability to customize heating and cooling schedules.
- Supports dual-fuel systems and provides automatic or manual changeover between heating and cooling.
- Includes a clear, text-based display for easy status checks and adjustments.
- Operates on 24V low voltage and preserves settings during power loss.
- Compatible with single or dual stage ECM/PSC motors and split systems with gas furnaces.
