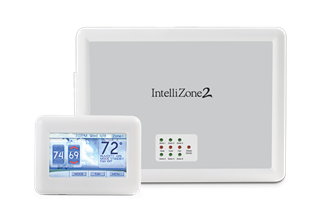

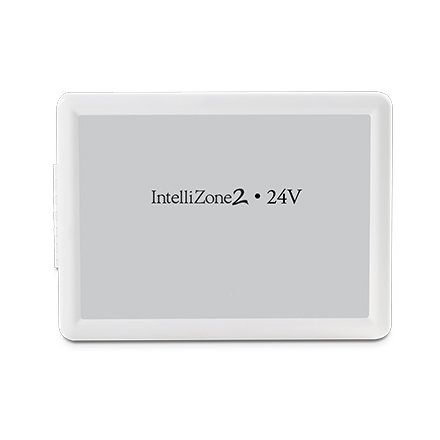

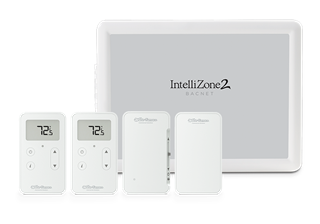

Water Furnace IntelliZone2 INTELLIZONE2GSR Zoning System, ≤6 (Variable Speed), ≤4 (Dual Capacity), ≤2 (Single Speed) Zones, Auto, Manual Changeover, 18-30 VAC, 350 mA (Input Current, 24 VAC); 5 A (Damper Outputs Fused), 3-9/10" H x 5-1/4" W x 19/20" D (Thermostat) Dimensions, G90 Galvanized Steel, Galvanized
Water Furnace IntelliZone2 INTELLIZONE2GSR Zoning System, ≤6 (Variable Speed), ≤4 (Dual Capacity), ≤2 (Single Speed) Zones, Auto, Manual Changeover, 18-30 VAC, 350 mA (Input Current, 24 VAC); 5 A (Damper Outputs Fused), 3-9/10" H x 5-1/4" W x 19/20" D (Thermostat) Dimensions, G90 Galvanized Steel, Galvanized
| Amperage Rating | : | 350 mA (Input Current, 24 VAC); 5 A (Damper Outputs Fused) |
| Changeover | : | Auto, Manual |
| Color | : | White (Thermostat) |
| Dimensions | : | 3-9/10" H x 5-1/4" W x 19/20" D (Thermostat) |
| Finish | : | Galvanized |
| Material | : | G90 Galvanized Steel |
| Number of Zones | : | 6 (Variable Speed), 4 (Dual Capacity), 2 (Single Speed) |
| Series | : | IntelliZone2 |
| Shape | : | Rectangular (Thermostat) |
| Temperature Rating | : | 32-122 °F (Operating Ambient), 14-135 °F (Storage Ambient) |
| Voltage Rating | : | 18-30 VAC |
WaterFurnace is the only geothermal company to offer our own residential zoning system — the IntelliZone2. The IntelliZone2 works in unison with our Aurora controls to provide the perfect temperature in up to six separate rooms. When added to our ground source heat pump systems, you'll enjoy the highest level of comfort and savings available today.Now you can precisely regulate temperatures in multiple areas of your home using separate thermostats or sensors. Gone are the days of needing to endure a hot upstairs bedroom or being forced to heat a guest bedroom that's only used during the holidays. Aurora controls allow the IntelliZone2 to communicate with the WaterFurnace system to control the zone temperatures. And all the advanced features of our systems are fully supported in the IntelliZone2 including energy monitoring, plain-English error communication, and Active Dehumidification. The IntelliZone2 is the only residential zoning system capable of mating to variable speed compressors. It was engineered specifically to control the variable capacity technology of the WaterFurnace 7 Series for up to six zones of comfort and control you have to experience to believe.
Water Furnace Zoning System, Model: IntelliZone2, ≤6 (Variable Speed), ≤4 (Dual Capacity), ≤2 (Single Speed) Zones, Auto, Manual Changeover, 18-30 VAC, 350 mA (Input Current, 24 VAC); 5 A (Damper Outputs Fused), 3-9/10" H x 5-1/4" W x 19/20" D (Thermostat) Dimensions, G90 Galvanized Steel, Galvanized, White (Thermostat), Rectangular (Thermostat), 32-122 °F (Operating Ambient), 14-135 °F (Storage Ambient)
- Provides precise temperature control for up to six separate zones (variable speed systems), four zones (dual capacity), or two zones (single speed).
- Works seamlessly with WaterFurnace Aurora controls for optimal system communication and performance.
- Features a 4.3" color touch-screen MasterStat for intuitive operation, programming, and control.
- Supports energy monitoring capabilities when paired with Aurora Advanced (AXB) Controls.
- Engineered specifically to control variable capacity technology found in units like the WaterFurnace 7 Series.
- Compatible with WaterFurnace 3, 5, and 7 Series geothermal units, as well as Versatec Variable Speed, Dual Capacity, and Single Capacity equipment.
- MasterStat preserves temperature and mode settings during power interruptions without requiring batteries.
