| Accessories | : | Y |
| Additional Information | : | Uncrated Dimensions (HxWxD):: 39.5 x 22 x 1 x 19 |
| Airflow Configuration | : | Wall Mount |
| Airflow Range (CFM) | : | 1,077 to 1,362 |
| Airflow Type & Capacity | : | Mid Effy Multi-Speed, 2 nom. Tonnage (cfm/Ton) |
| AirflowRange | : | 1,077 to 1,362 CFM |
| BTU Rating | : | 30,000 Btu/hr |
| BTUH(208V) | : | No Heater - ,BAYHTRM505BRKA* - 12800,BAYHTRM508BRKA* - 19200,BAYHTRM510BRKA* - 25600 |
| BTUH(240V) | : | No Heater - ,BAYHTRM505BRKA* - 17100,BAYHTRM508BRKA* - 25600,BAYHTRM510BRKA* - 34100 |
| Blower Type | : | ECM |
| CFM Rating | : | 1000 cfm |
| Cabinet Size(W x D) | : | 22 x 19 |
| Coil Type | : | Plate Fin |
| Communicating | : | No |
| Configuration | : | Wall Mount |
| Connection Type | : | Brazed |
| Convertability | : | Multi-Position |
| CoolingCapacity | : | 30,000 BTU |
| Dimensions | : | 39.5 x 22 x 19 |
| Drain Connection Size (In) | : | 3/4 NPT |
| Duct Size (In) | : | 18.75 X 9.5 |
| ElecHertz | : | 60 |
| ElecPhases | : | 1 |
| ElecVolts | : | 208-230 |
| Energy Star Compliant | : | N |
| Family Description | : | "TMM Wall |
| Fan Diameter (In) | : | 10.6 |
| Fan Motor FLA | : | 2.7 |
| Fan Type | : | Centrifugal |
| Filter Furnished | : | No |
| Filter Size (In) | : | 20 x 20 x 1 |
| FilterSize | : | 20 x 20 x 1 |
| Flow Control | : | TXV |
| Footprint Depth | : | 19 |
| Footprint Width | : | 22 |
| Frequency Rating | : | 60 Hz |
| Group Description | : | R-410A Wall, Stud, or Over the Water Heater Mount Air Handler 208-230/1/60, ECM Motor, Factory installed R-410A TXV, all aluminum coil, Cooling & Limited Heating |
| Heater (KW) 208V | : | No Heater - ,BAYHTRM505BRKA* - 3.8,BAYHTRM508BRKA* - 5.6,BAYHTRM510BRKA* - 7.5 |
| Heater (KW) 240V | : | No Heater - ,BAYHTRM505BRKA* - 5,BAYHTRM508BRKA* - 7.5,BAYHTRM510BRKA* - 10 |
| Heater (KW) | : | Optional |
| Heater Amps per Circuit(208V) | : | No Heater - ,BAYHTRM505BRKA* - 18.0,BAYHTRM508BRKA* - 27.1,BAYHTRM510BRKA* - 36.1 |
| Heater Amps per Circuit(240V) | : | No Heater - ,BAYHTRM505BRKA* - 20.8,BAYHTRM508BRKA* - 31.2,BAYHTRM510BRKA* - 41.7 |
| Line Size Gas | : | 3/4 |
| Line Size Liquid | : | 3/8 |
| MCA(208V) | : | No Heater - 3.4,BAYHTRM505BRKA* - 26.0,BAYHTRM508BRKA* - 37.3,BAYHTRM510BRKA* - 48.6 |
| MCA(240V) | : | No Heater - 3.4,BAYHTRM505BRKA* - 29.5,BAYHTRM508BRKA* - 42.5,BAYHTRM510BRKA* - 55.5 |
| MCA | : | 5.2 |
| MOCP(208V) | : | No Heater -15,BAYHTRM505BRKA* - 30,BAYHTRM508BRKA* - 40,BAYHTRM510BRKA* - 50 |
| MOCP(240V) | : | No Heater -15,BAYHTRM505BRKA* - 30,BAYHTRM508BRKA* - 45,BAYHTRM510BRKA* - 60 |
| Min Amp Rating | : | 3.4 |
| Motor Type | : | ECM |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Refrigerant Control | : | TXV |
| Refrigerant Type | : | R-410A |
| Series | : | TMM5 |
| Tonnage | : | 2.5 Ton |
| Voltage Rating | : | 208/230 V |

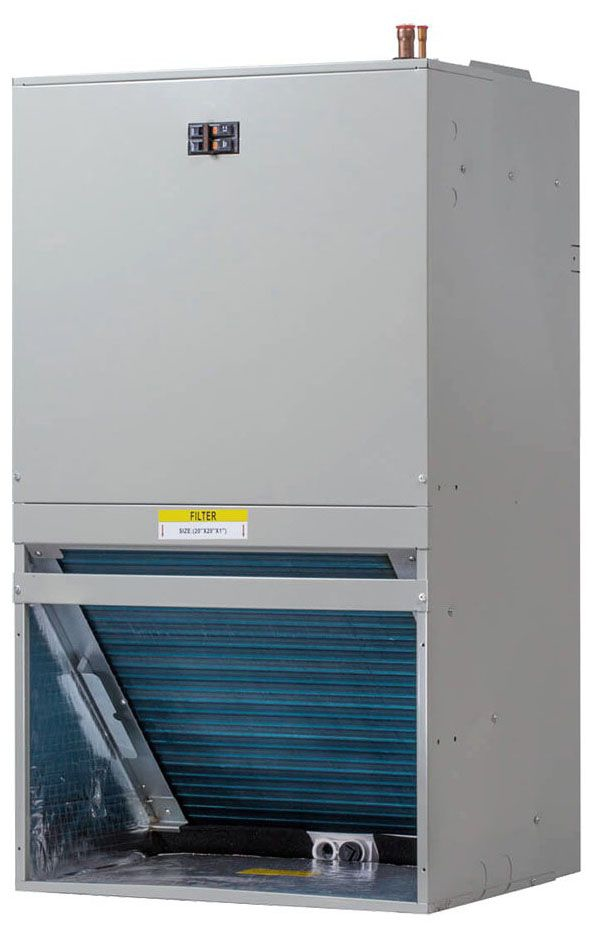

Trane TMM5B0B30M21S, 30,000 BTU, 2.5T, 20/230V, ECM Fan motor, Wall Mount Single Stage Air Handler
- Front or bottom return air
- Painted finish on galvanized steel
- Multi-speed direct drive blower - Constant torque ECM motor with fan-off time delay programming
- Stud or wall mounting tabs
- Fully insulated cabinet
- 5, 7.5, and 10 kW single phase electric heaters (optinal accessory)
