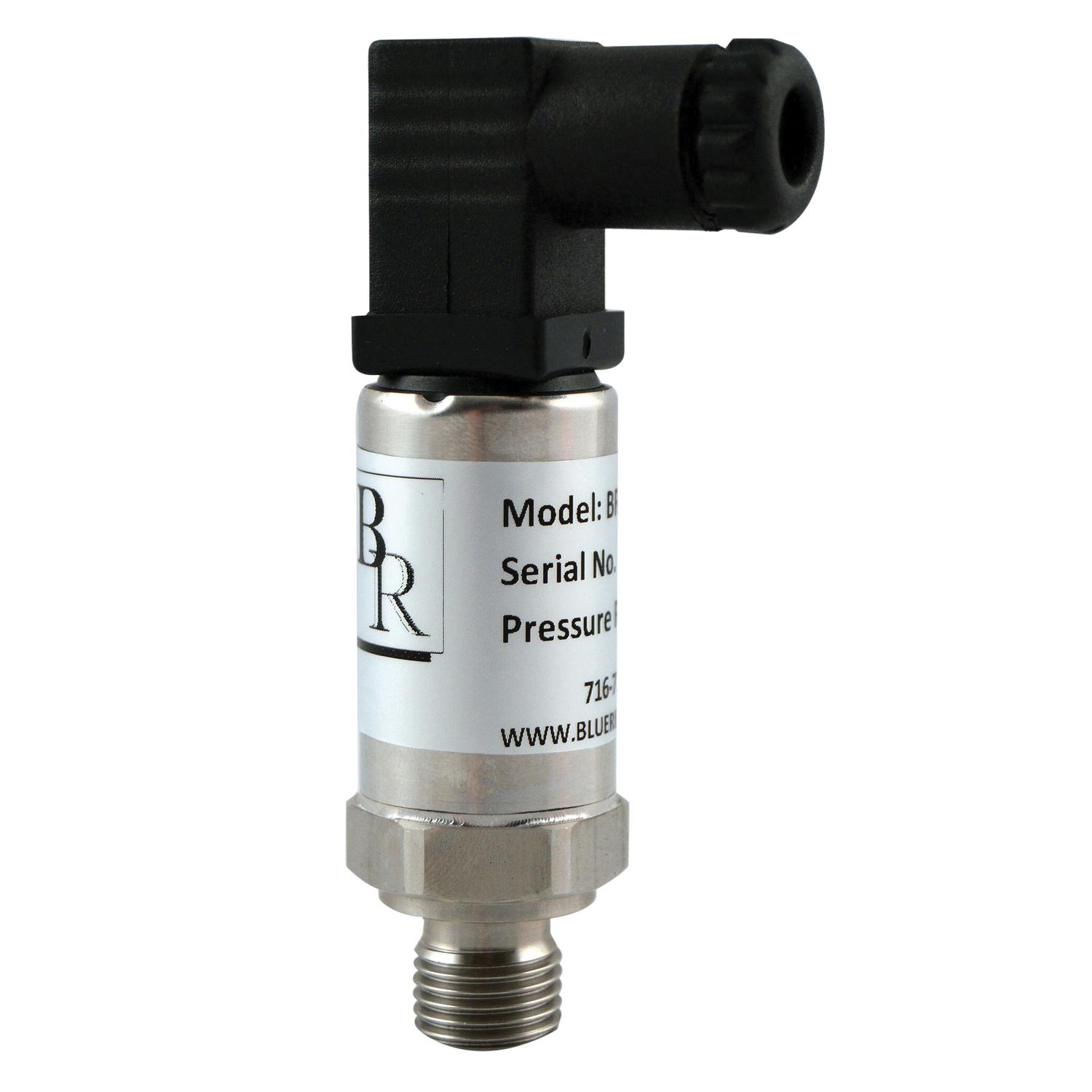

TRANSDUCER; PRESSURE, SUCTION, 0.5 VDC AT 14.7 PSIA, 4.5 VDC AT 400 PSIA, 1/4" SAE FEMALE FLARE WITH DEFLATOR, 7/16-20
TRANSDUCER; PRESSURE, SUCTION, 0.5 VDC AT 14.7 PSIA, 4.5 VDC AT 400 PSIA, 1/4" SAE FEMALE FLARE WITH DEFLATOR, 7/16-20
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 390007
MPN: TDR00645
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Accuracy | : | ��1% |
| Connection Type | : | 1/4 SAE Flared |
| Enclosure Type | : | NEMA 4X, IP65 |
| Material | : | HNBR (Hydrogenated Nitrile Rubber); Neoprene; Brass; Steel |
| Output (mA, VDC) | : | 2.5 mA |
| Port Size (In) | : | 1/4 |
| Port Style | : | Female Flare SAE |
| Pressure Rating | : | 0 to 500 PSI |
| Series/Model | : | 2CP5 |
| Standards | : | Reach,ROHS,UL |
| Supply Current | : | 7 mA |
| Supply Voltage | : | 4.5 to 5.5V DC |
| Temperature Rating | : | -40 to 275 Deg. F |
| Type | : | Suction |
TRANE® Switch, 0.5 VDC, 4 in-WC, 1/4 in Female Flare Port
