| AFUE Rating % | : | 95 |
| AFUE Rating | : | 96 % |
| AHRI Model Number | : | TDHMD120BCV5VB* |
| Additional Information | : | Tonnage:: 40% = 3.8; 100% = 9.5|Valve Type:: Redundant - Three Stage |
| Airflow CFM | : | 60,000 |
| Airflow Capacity | : | 5.0 Ton |
| Ampacity | : | 13.5 |
| BTUH | : | 80,000 |
| Batteries included | : | No |
| Blower (Dia x W) (In) | : | 10 x 10 |
| Blower Drive | : | Direct |
| Blower FLA | : | 10 |
| Blower Fan Power | : | 115/1/60 |
| Blower Fan RPM | : | Variable |
| Blower Fan Speeds | : | Variable |
| Blower Motor Type | : | High Efficiency Motor |
| Burner Type | : | Multiport Inshot |
| Combustion Fan FLA | : | 1.3 |
| Combustion Fan Motor HP | : | 1/50 |
| Combustion Fan Power | : | 33 to 110/3/60 to 180 |
| Combustion Fan Type | : | Centrifugal |
| Combustion Fan-RPM | : | 5,000 |
| Communicating | : | Yes |
| Configuration | : | Downflow, Horizontal |
| CoolingCapacity | : | 5 Ton Variable Speed |
| Dimensions | : | 40 x 24.5 x 28 |
| Drill Size LP Gas (Qty - Drill Size) | : | 6 - 56 |
| Drill Size Nat Gas (Qty - Drill Size) | : | 6 - 45 |
| ElecVolts | : | 115 |
| Energy Star Compliant | : | Yes |
| Equipment Application | : | Heating |
| Exchanger Material | : | Aluminized Steel - Type I |
| Filter Height (In) | : | 16 |
| Filter Hi Vel. (No.-Size-Thk.) | : | 2 - 16 x 20 - 1 |
| Filter Qty | : | 2 |
| Filter Size (In) | : | 16 x 20 |
| Filter Type Recommended | : | High Velocity |
| Filter Width In | : | 20 |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 120,000 Btu/hr |
| Model Number | : | TDHM |
| Model | : | TDHM |
| Motor Type | : | ECM |
| Number of Stages | : | Modulating |
| Phase | : | 1 ph |
| Series | : | XC95 |
| Specifications1 | : | Flue Size:: 3 Round|Frequency (Hz):: 60|Frequency Rating:: 60|Fuel Type:: Natural Gas|Gas Valve Type:: Redundant - 3-Stage|Heat Exchanger Guage (Fired):: 20|Heat Exchanger Type - Fired:: Aluminized Steel - Type I|Heat Exchanger Type - Unfired:: Aluminized Steel - Type I|HeatingCapacityStage1:: 48,000|HeatingCapacityStage2:: 120,000|Ignition Type:: Silicon Nitride Igniter |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 24.5 in |

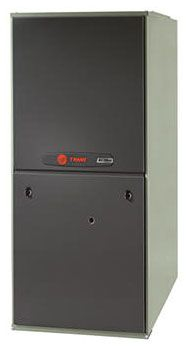

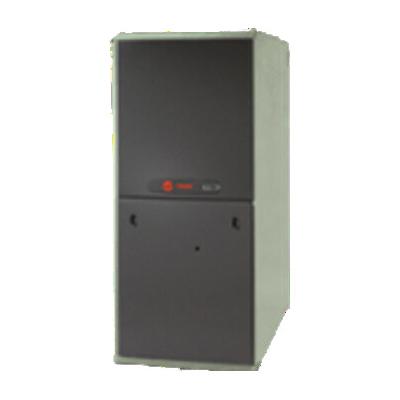

Trane XC95 - TDHMD120BCV5VB, 5T, 95% AFUE, 120,000 BTU, 115V, PSC Variable Speed Fan Motor, Downflow / Horizontal, Condensing Modulating Gas Furnace
- ComfortLink™ II communicating capability
- Durable silicon nitride hot surface igniter
- Heavy gauge, two-tone powder-painted cabinet
- Fully modulating gas heat furnace provides greater fuel efficiency and ultimate comfort control
- Variable-speed blower motor
- One-piece aluminized steel primary heat exchanger
- Multi-port, in-shot burners
