| AFUE Rating | : | 96 % |
| Additional Information | : | Aluminized Steel Exchanger Material |
| Amperage Rating | : | 9.2 A |
| Blower Size | : | 10 in Dia x 8 in W in |
| Cabinet Dimensions | : | 40 in H x 17-1/2 in W x 28 in D |
| Configuration | : | Downflow, Horizontal |
| Energy Star Compliant | : | Yes |
| Finish | : | Powder Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/2 hp |
| Ignition Type | : | Hot Surface |
| Input BTU Rating | : | 60,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | TDHM |
| Model | : | TDHM |
| Motor Type | : | Variable |
| Number of Burners | : | 3 |
| Number of Stages | : | Modulating |
| Phase | : | 1 ph |
| Series | : | XC95 |
| Temperature Rise | : | 30 to 60 deg F |
| Tonnage | : | 3.0 Ton |
| Vent Size | : | 2 in Dia in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |

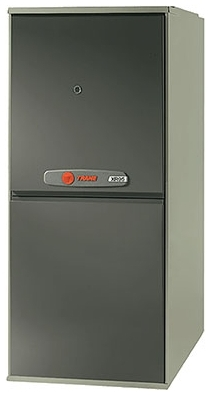

Trane XC95 - TDHMB060BCV3VB, 3T, 95% AFUE, 60,000 BTU, 115V, PSC Variable Speed Fan Motor, Downflow / Horizontal Condensing Modulating Gas Furnace
- ComfortLink™ II communicating capability
- Durable silicon nitride hot surface igniter
- Heavy gauge, two-tone powder-painted cabinet
- Fully modulating gas heat furnace provides greater fuel efficiency and ultimate comfort control
- Variable-speed blower motor
- One-piece aluminized steel primary heat exchanger
- Multi-port, in-shot burners
