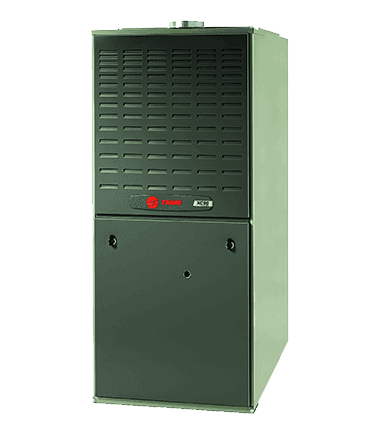

Trane XL80 TDD2B060ACV32B 3T 80 AFUE Non-Condensing Two Stage Gas Furnace
Trane XL80 TDD2B060ACV32B 3T 80 AFUE Non-Condensing Two Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391254
MPN: TDD2B060ACV32B
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 80 % |
| AHRI Model Number | : | TDD2B060ACV32 |
| Airflow Capacity | : | 3.0 Ton |
| BTUH | : | 60,000 |
| Blower FLA | : | 5.2 |
| Blower Fan Speeds | : | Variable |
| Communicating | : | Communicating |
| Condensing | : | Non-condensing |
| Configuration | : | Downflow, Horizontal |
| Dimensions | : | 40 x 17.5 x 28.5 |
| Energy Star Compliant | : | No |
| Equipment Application | : | Heating |
| Filter Height (In) | : | 14 |
| Filter Size (In) | : | 14 x 20 x 1 |
| Filter Width In | : | 20 |
| Flue Size | : | 4 |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Heating Capacity Stage 2 | : | 48000 |
| Heating Capacity | : | 31200 BTUH (1st Stage) |
| Ignition Type | : | Silicon Nitride Igniter |
| Input BTU Rating | : | 60,000 Btu/hr |
| Line Size - Suction (In) | : | 1/2 |
| Max Amp Rating | : | 7.8 |
| Max Fuse | : | 15 A |
| Model Number | : | TDD2 |
| Model | : | TDD2 |
| Motor Type | : | ECM |
| Number of Stages | : | Two |
| Phase | : | 1 ph |
| Power Supply | : | 115 V/1 Phase/60 Hz |
| Series | : | XL80 |
| Tonnage | : | 3.0 Ton |
| Uncrated Dimensions (HxWxD) | : | 40 x 17.5 x 28.5 in |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
Trane XL80 - TDD2B060ACV32B, 3T, 80% AFUE, 60,000 BTU, 115V, ICM Variable Speed Fan Motor, Non-Condensing Two Stage Gas Furnace
- Convertible to horizontal
- 2-stage gas valve
- Heavy gauge aluminized steel heat exchanger
- Direct drive variable speed motor
- Soft start - gradually cycles on airflow
- Slide out blower assembly
- Heavy gauge reinforced wraparound steel cabinet
