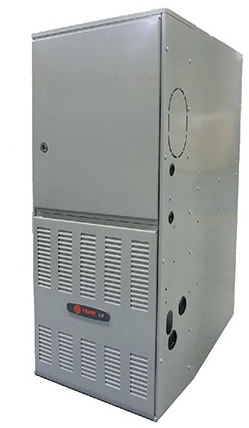

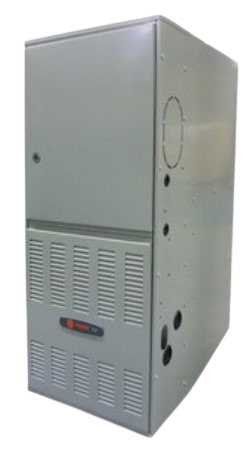

Trane XB90 TDC1D120A9601A 5T 92.1 AFUE Condensing Single Stage Gas Furnace
Trane XB90 TDC1D120A9601A 5T 92.1 AFUE Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391251
MPN: TDC1D120A9601A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating % | : | 92.1 |
| AFUE Rating | : | 92 % |
| AHRI Model Number | : | TDC1D120A9601A |
| Airflow Capacity | : | 5.0 Ton |
| BTUH | : | 120,000 |
| Blower (Dia x W) (In) | : | 11 x 10 |
| Blower Fan Speeds | : | 4 |
| Blower Motor Type | : | Direct Drive |
| Burner Type | : | Multiport Inshot |
| Combustion Fan-RPM | : | 3450 |
| Communicating | : | Non-communicating |
| Condensing | : | Condensing |
| Configuration | : | Downflow, Horizontal |
| Dimensions | : | 40 x 17.5 x 28.5 |
| Energy Star Compliant | : | No |
| Equipment Application | : | Heating |
| Exchanger Material | : | Aluminized Steel |
| Filter Height (In) | : | 16 |
| Filter Quantity | : | 2 |
| Filter Size (In) | : | 16 x 20 x 1 |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Full Load Amperage (FLA) | : | 12.9 |
| Fuse Rating | : | 20 A |
| Gas Valve Type | : | Redundant - 1-Stage |
| Heating Capacity | : | 120,000 BTUH |
| Ignition Type | : | Silicon Nitride Igniter |
| Input BTU Rating | : | 120,000 Btu/hr |
| Line Size - Suction (In) | : | 1/2 |
| Material | : | Steel Cabinet |
| Max Fuse | : | 20 A |
| Model Number | : | TDC1 |
| Model | : | TDC1 |
| Motor HP | : | 1/20 |
| Motor Type | : | PSC |
| Number of Stages | : | Single |
| Output BTUH | : | 112000 |
| Phase | : | 1 ph |
| Pilot Safety Device | : | Hot Surface Igniter |
| Power Supply | : | 115 V/1 Phase/60 Hz |
| Series | : | XB90 |
| Tonnage | : | 5.0 Ton |
| Uncrated Dimensions (HxWxD) | : | 40 x 17.5 x 28.5 in |
| Vent Size | : | 3 in Round in |
| Voltage Rating | : | 115/120 V |
| Width | : | 24.5 in |
Trane XB90 - TDC1D120A9601A, 5T, 92.1% AFUE, 120,000 BTU. 115V, PSC Fan Motor, Downflow/ Horizontal Condensing Single Stage Gas Furnace
- Silicon Nitride hot surface igniter with adaptive heat up
- Direct drive, 4-speed motor
- Downflow convertible to horizontal on left side
- Integrated solid state control with self diagnostics
- Manual reset burner box limit
- Quiet induced draft blower
