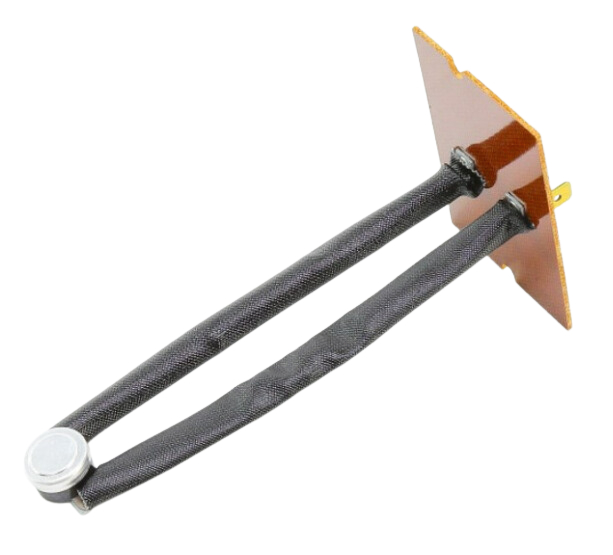

TRANE® Therm-O-Disc SWT01274 Thermal Limit Switch, 120 V Control, 1-Pole, NC, 125 deg F Cut In, 95 deg F Cut Out
TRANE® Therm-O-Disc SWT01274 Thermal Limit Switch, 120 V Control, 1-Pole, NC, 125 deg F Cut In, 95 deg F Cut Out
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 389649
MPN: SWT01274
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Compatible Models | : | TUD1C080A9H41BB, ADD2C100ACV52BC, ADD140C960B0, 4YCC4042A1090AB, 4YCY5036A1090AD |
| Contact Configuration | : | NC |
| Control Voltage | : | 120 V |
| Cut In Temperature | : | 125 deg F |
| Cut Out Temperature | : | 95 deg F |
| Depth | : | 3.2 in |
| Electrical Connection Type | : | Quick Connect |
| Function Type | : | Switch |
| Height | : | 3.8 in |
| Number of Poles | : | 1 |
| Packaged Depth | : | 5 in |
| Packaged Height | : | 4.6 in |
| Packaged Width | : | 5 in |
| Product Family | : | Therm-O-Disc |
| Product Type | : | Switch |
| Product Weight | : | 0.25 lb |
| Shipping Weight | : | 0.19 lb |
| Switching Current | : | 5.8 A Full Load, 34.8 A Locked Rotor at 120 V |
| Width | : | 1.88 in |
TRANE® Thermal Limit Switch, Product Family: Therm-O-Disc, 120 V Control, 1 Poles, Contact Configuration: NC, 125 deg F Cut In Temperature, 95 deg F Cut Out Temperature, Quick Connect Electrical Connection, 3.8 in Height, 1.88 in Width, 3.2 in Depth, Switch Function Type, 5.8 A Full Load, 34.8 A Locked Rotor at 120 V Switching Current, Compatible Models: TUD1C080A9H41BB, ADD2C100ACV52BC, ADD140C960B0, 4YCC4042A1090AB, 4YCY5036A1090AD
