| AFUE Rating | : | 96 % |
| Additional Information | : | 409 Stainless Steel Heat Exchanger, Direct Drive Blower, Centrifugal Combustion Fan, Silicon Nitride Ignition Element |
| Amperage Rating | : | 12.8 A |
| Blower Size | : | 11 in Dia x 8 in W in |
| Cabinet Dimensions | : | 34 in H x 17-1/2 in W x 28-3/4 in D in |
| Configuration | : | Upflow, Horizontal |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural/LP Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | S9X1 |
| Model | : | S9X1 |
| Motor Type | : | ECM |
| Number of Stages | : | Single |
| Output BTU Rating | : | 77,000 Btu/hr |
| Phase | : | 1 ph |
| Rotational Speed | : | 1075 rpm |
| Series | : | Silver Series |
| Tonnage | : | 4.0 Ton |
| Vent Size | : | 2 in |
| Vent, Ducted or Ductless | : | Vented |
| Voltage Rating | : | 115/120 V |

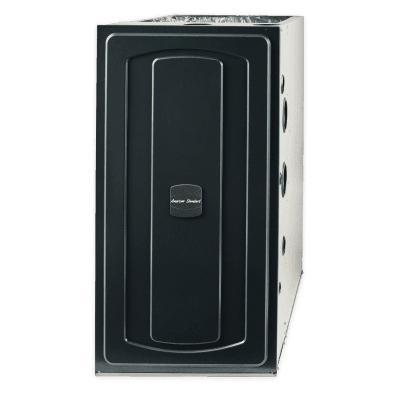

The Silver S9X1 Gas Furnace is a powerful and efficient furnace that offers exceptional comfort and energy savings with its variable-speed motor, self-calibrating gas valve, and durable steel cabinet, making it a reliable and cost-effective option for homeowners looking to upgrade their heating system.
Trane® Gas Furnace, Series: Silver Series, Model: S9X1, 80000 Btu/hr Input BTU Rating, 77200 Btu/hr Output BTU Rating, 120 V, 12.8 A, 3/4 hp HP Rating, 96 % AFUE, 1 ph, 60 Hz, 1 Stage, Horizontal, Upflow Configuration, LP Gas, Natural Gas, 11 in Dia x 8 in W Blower Size, 34 in H x 17-1/2 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor, 1075 rpm Rotational Speed, Vented Vent, Ducted or Ductless, 2 in Vent Size, 15 A Fuse, 4 ton Tonnage, Hot Surface Ignition System, Additional Information: 409 Stainless Steel Heat Exchanger, Direct Drive Blower, Centrifugal Combustion Fan, Silicon Nitride Ignition Element
- Up to 96% AFUE for efficient operation
- Matches with single- and two-stage AC and HP models
- High-efficiency constant torque ECM (Electronically Commutated Motor) blower motor
- Exclusive Vortica™ II blower design that increases airflow efficiency.
- Stainless steel primary and secondary heat exchangers resist corrosion for long-lasting performance.
- Self-diagnosing integrated furnace control (IFC)
- Certified 1% airtight, meeting stringent building codes and saving energy.
- Energy Star certification validates performance and efficiency.
- Fully insulated cabinet reduces operating noise
