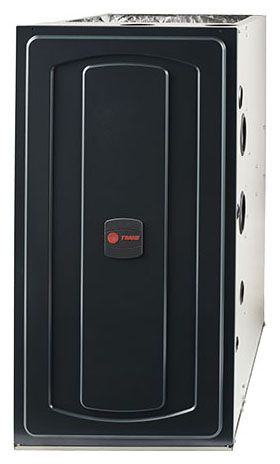

Trane S Series S9X1B060U4PSBA 4T 96 AFUE Condensing Single Stage Gas Furnace
Trane S Series S9X1B060U4PSBA 4T 96 AFUE Condensing Single Stage Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391171
MPN: S9X1B060U4PSBA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 96 % |
| Additional Information | : | 409 Stainless Steel Exchanger Material |
| Amperage Rating | : | 10.3 A |
| Blower Size | : | 11 in Dia x 8 in W in |
| Cabinet Dimensions | : | 34 in H x 17-1/2 in W x 28-3/4 in D in |
| Configuration | : | Upflow, Horizontal |
| Connection Size | : | 1/2 in |
| Energy Star Compliant | : | No |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Ignition Type | : | Silicon Nitride |
| Input BTU Rating | : | 60,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | S9X1 |
| Model | : | S9X1 |
| Motor Type | : | ECM |
| Number of Burners | : | 3 |
| Number of Speeds | : | 9 |
| Number of Stages | : | Single |
| Phase | : | 1 ph |
| Rotational Speed | : | 1075 rpm |
| Series | : | S Series |
| Temperature Rise | : | 35 to 60 deg F |
| Tonnage | : | 4.0 Ton |
| Vent Size | : | 2 in Dia in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115/120 V |
| Width | : | 17.5 in |
The S9X1 family features up to 96% AFUE and is packed with energy saving features such as a high efficiency ECM (electronically commutated motor) blower motor. These high efficiency features help lower monthly energy bills, helping you save money over the lifetime of your furnace.
Trane S Series - S9X1B060U4PSBA, 4T, 96% AFUE, 60,000 BTU, 120V, ECM Fan Motor, Upflow / Horizontal Condensing Two Stage Gas Furnace
- Efficient airflow design reduces electrical energy use
- 34 inch tall- Lighter, easier to move and fit into tight spaces like short basements or tight closets Works great with larger, high-efficiency coils
- Improved airflow efficiency,Single piece belly band/ motor arm assembly
- Rain shield over IFC keeps condensate off the control
- Three–Way Multi-Poise
- At least 400 CFM/ton at 0.5 in. H20 external static pressure
